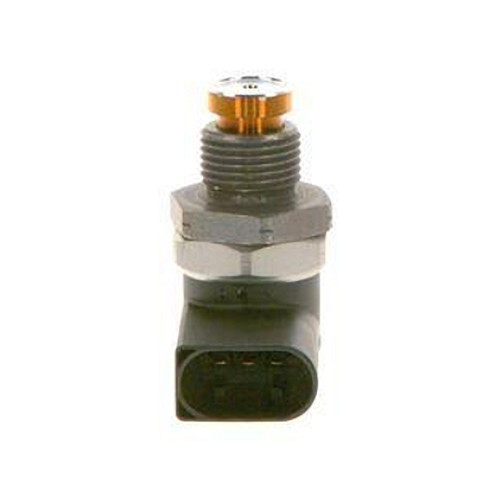

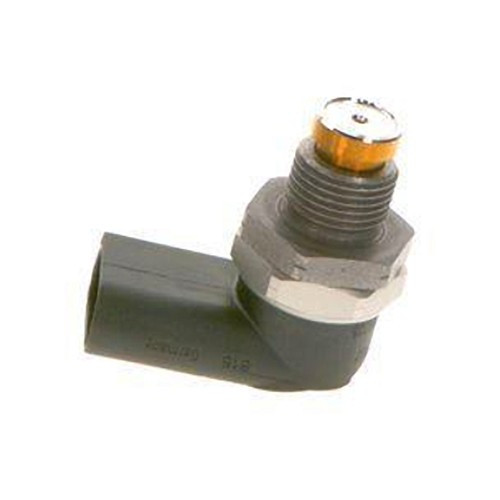

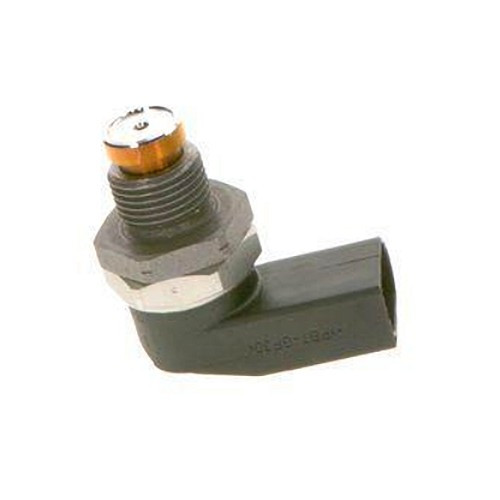

BOSCH Diesel Pressure Sensor for BMW 3 Series E46 Diesel

Details about : BOSCH Diesel Pressure Sensor for BMW 3 Series E46 Diesel

BOSCH brand diesel pressure sensor located on the injection rail for BMW 3 Series E46 Diesel:

Berline:
- 318d 116hp from 03/2003 to 01/2005 (engine code M47N)
- 320d 150hp from 09/2001 to 05/2005 (engine code M47N)
- 330d 204hp from 08/2002 to 02/2005 (engine code M57N)
- 330xd 204hp from 09/2002 to 12/2004 (engine code M57N)

Touring:
- 318d 116hp from 10/2001 to 07/2005 (engine code M47N)
- 320d 150hp from 10/2000 to 07/2005 (engine code M47N)
- 330d 204hp from 09/2002 to 07/2005 (engine code M57N)
- 330xd 204hp from 08/2002 to 05/2005 (engine code M57N)

Compact:
- 318td 115hp from 01/2003 to 12/2004 (engine code M47N)
- 320td 150hp from 03/2001 to 12/2004 (engine code M47N)

Coupe and Convertible:
- 320cd 150hp from 03/2003 to 08/2006 (engine code M47N)
- 330cd 204hp from 08/2002 to 08/2006 (engine code M57N)

This fuel pressure sensor is mounted at the end of the high-pressure accumulator, opposite the pressure regulating valve.

Original reference OEM:

13537787167
