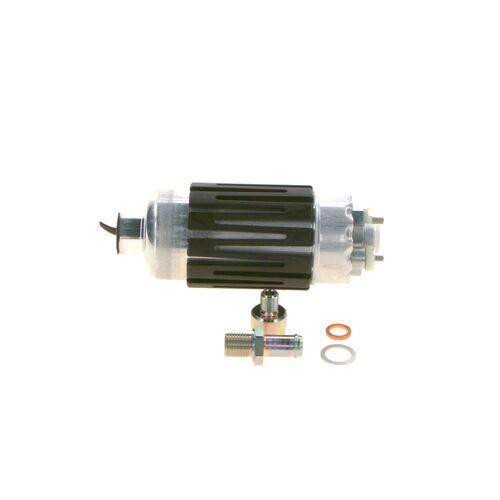

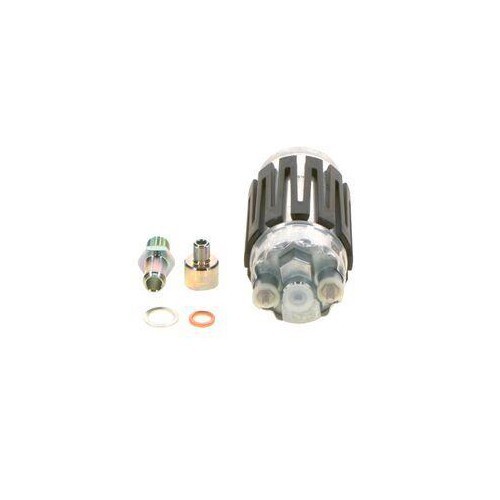

BOSCH Fuel pump for Porsche 911 and 930 (1977-1979)

Details about : BOSCH Fuel pump for Porsche 911 and 930 (1977-1979)

BOSCH Fuel pump for Porsche 911 and 930 from 1977 to 1979 :

-> Porsche 911 :
- 911 2.7 - 165 hp (911.81/86) of 1977
- 911 Carrera 3.0 - 200 hp (930.02/12) of 1977
- 911 SC 3.0 - 180 hp (930.03/13) from 1978 to 1979

-> Porsche 930 :
- 911 Turbo 3.0 - 260 hp (930.50/52) of 1977
- 911 Turbo 3.3 - 300 hp (930.60/66) from 1978 to 1979

Flow rate : 200l/h at 5bar
Inlet connection : 12 mm
Outlet connection : M12x1.5
M4 and M5 +/- screw terminals
Pump length : 12 mm longer than the old one thanks to screwed hydraulic connection
No check valve
Pump body diameter : 60mm

This pump replaces pump 0 580 254 984 discontinued by the manufacturer.

You will need to purchase the non-return valve 911 608 211 00

Original reference OEM:

911 608 102 00

928 608 102 00
