Brake master cylinder for Renault 4 (09/1973-07/1978)- 19,05mm

Details about : Brake master cylinder for Renault 4 (09/1973-07/1978)- 19,05mm

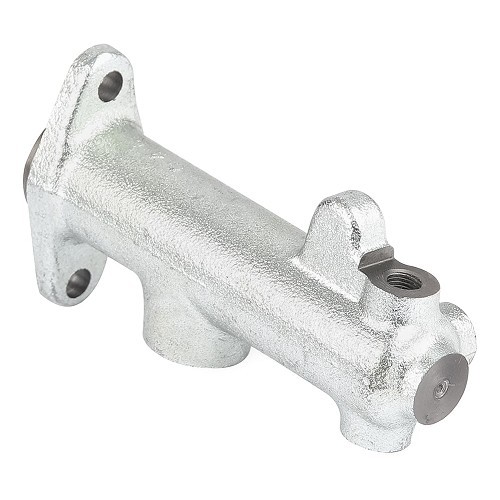

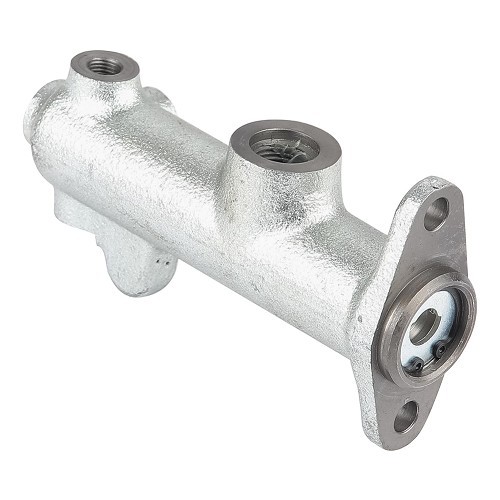

This brake master cylinder for Renault 4 (09/1972-07/1978)- 19.05mm is single circuit.

This single circuit master cylinder for R4 has a 19.05mm piston and 3/8"24 UNF M16x1.5" threads.
It was fitted on most models until the adoption of the dual circuit in October 1976.

Compatible models:

- R4 Type R1123: 09/1973 to 10/1976 from #1109667 to #1742851
- R4 Export/L/TL Type R1126: 09/1973 to 10/1976 from #28264 to #469894
- R4 Safari Type R1129: 09/1975 to 07/1978

- R4 Van F4 Type R2391: 09/1973 to 05/1976
- R4 Van 4CV glazed F4 type R2392: 09/1973 to 10/1976 through #5564
- R4 Extended van F6 type R2370: 05/1975 to 10/1976
- R4 Long van glazed R2430: 05/1975 to 10/1976

Original reference OEM:

7701365340
