Digital battery voltmeter 10 to 15.5V DIGIFIZmini type GL for VW Golf 2 (08/1983-10/1991)

Details about : Digital battery voltmeter 10 to 15.5V DIGIFIZmini type GL for VW Golf 2 (08/1983-10/1991)

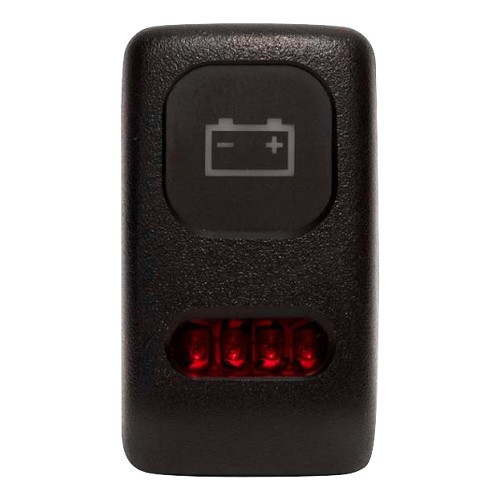

10 to 15.5V DIGIFIZmini battery voltmeter gauge in original dashboard switch format for VW Golf 2:

- All models from 08/1983 to 10/1991

ATTENTION: Make sure there's a free space on the dashboard control switch panel beforehand!

Technical specifications :
- Range: 4 to 15V
- Scaling: 0.1V

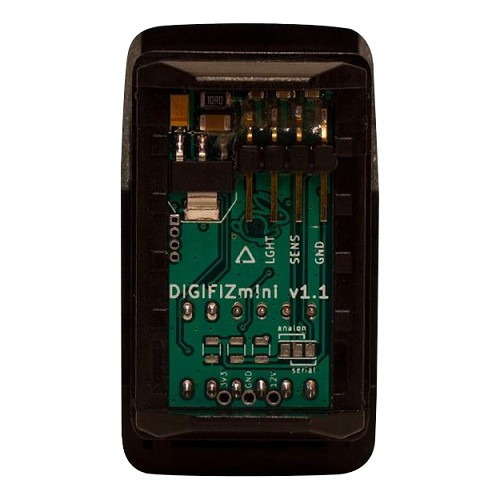

- Analog design with SMD components
- Displayed value pictogram identical to original button pictograms for perfect integration.
- GL-type digital value display
- Green backlighting compatible with dashboard lighting adjustment

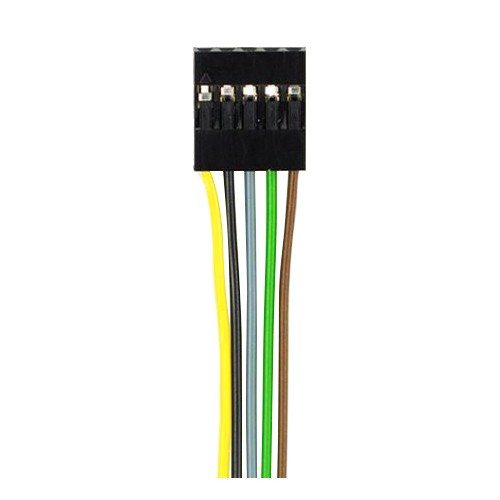

1 x 4-pin connector and 5 x specific bare lugs are supplied for connection to the button.
Connection material (0.35 - (0.5) mm² wire 22 - (20) AWG) not supplied. No probe required.

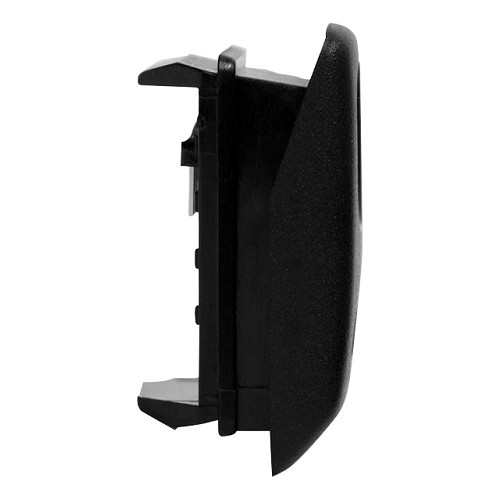

This pressure gauge, in the shape of an original button, is mounted on the dashboard control switch panel (use the location of an inactive button). Installation requires connection to the original wiring harness (wires for connection to the knob not supplied).

It's ideal for modernizing the interior of your Golf 2 while retaining its original look. Thanks to its clear, precise indications, you'll know at a glance the voltage generated by your alternator.
