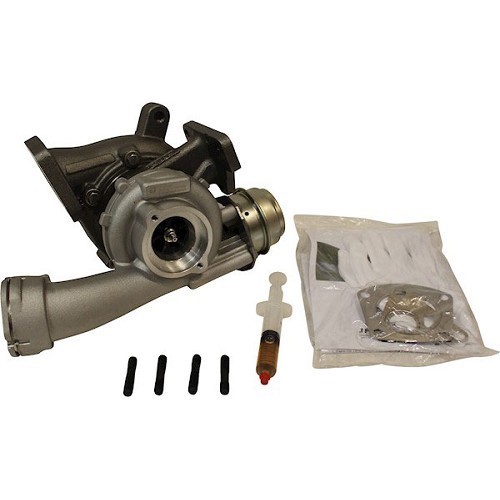

New turbo charger for Transporter T5 2.5 TDi ->2010, Garrett assembly

Details about : New turbo charger for Transporter T5 2.5 TDi ->2010, Garrett assembly

New turbocompressor, no part exchange, for original Garret assembly.
(Not for Borgwarner assembly)

For VW Transporter T5 (type 7H, 7J)
2.5 TDi 130hp (AXD) 4Motion 2004 ->2005:
Chassis:
7H-4H106899 up to ->7H-5H048000
7H-4X040942 up to ->7H-5X011500
7J-4-040942 up to ->7J-5-013365

For VW Transporter T5 (type 7H, 7J)
2.5 TDi 130cv (AXD) traction engine:
From chassis no.: 7H-5H048001->, 7H-5X011501-> or 7J-5-013366->

The following precautions are to be taken when replacing a Turbo charger:
- The oil circuit must be cleaned to ensure that any residues that may block the circuit are removed
- The oil and oil filter must be replaced
- The oil intake and return pipes must be checked and cleaned
- The air hoses and breather must also be checked
- With the help of a syringe, feed oil into the turbo via the oil inlet, then start the turbine manually.
- Once the new turbo is fitted, start the engine and let it tick over for 10 minutes. Before stopping the engine, let it tick over for a few seconds (do not accelerate brusquely before turning off)

Original reference OEM:

070145701K

070145701KV

070145701KX
