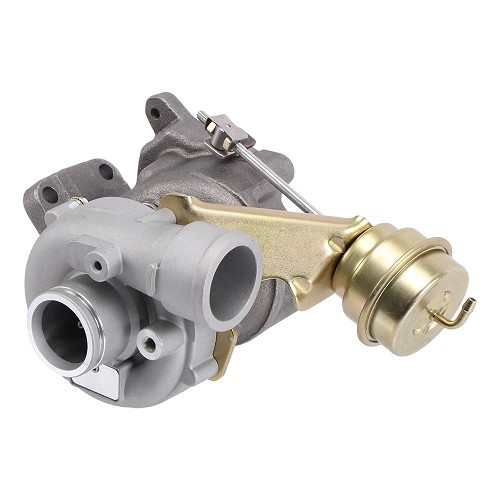

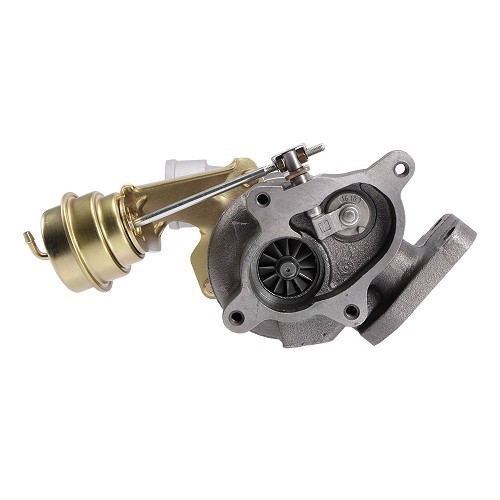

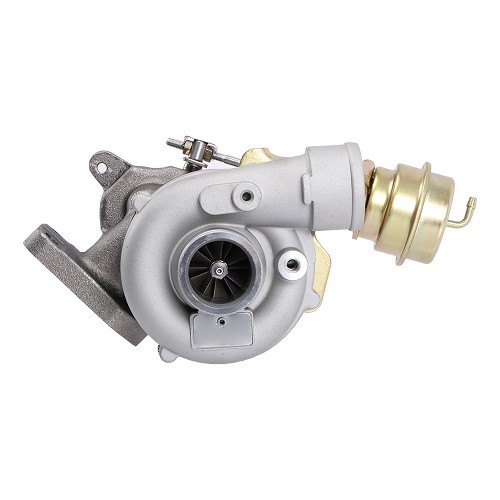

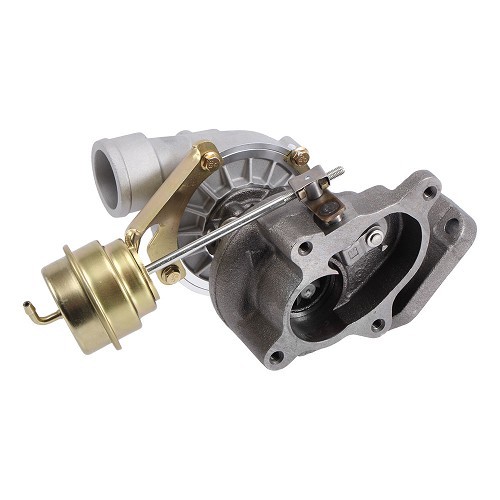

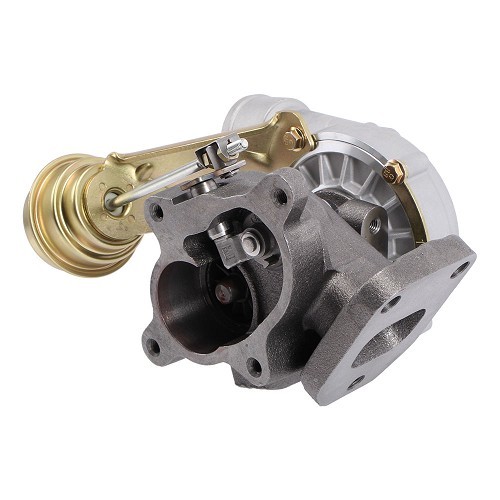

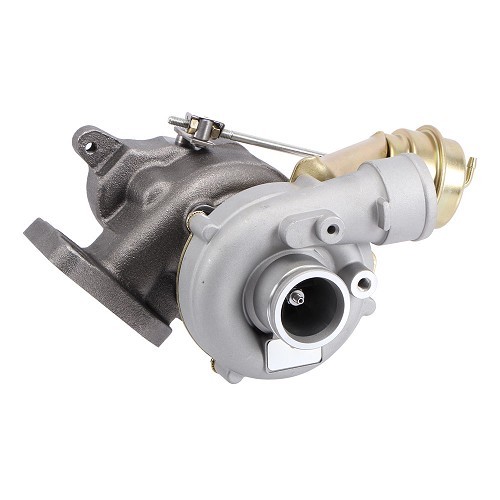

New turbo for Transporter T4 2.5 TDi 96 ->03

Details about : New turbo for Transporter T4 2.5 TDi 96 ->03

New turbo-compressor without exchange
on original KKK assembly.

ForVW Transporter T4, Multivan
Years: 01/1996 ->06/2003
from chassis no. 70-T-200 001->
Engines:
- 2.5 TDi 88hp (AJT, AYY)
- 2.5 TDi 102hp (ACV, AUF, AYC)

Precautions must be taken when replacing a turbocharger:
- The oil system must be cleaned to remove any residue which may block it
- The oil and oil filter must be replaced
- The oil inlet and return ducts must be checked and cleaned
- The air hoses and breather hose must also be checked

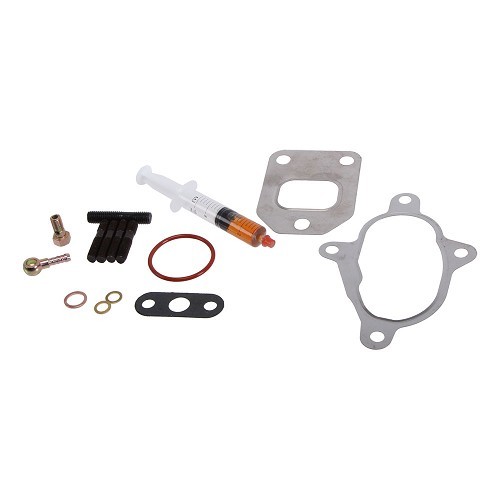

- Using a syringe, fill the turbo with oil via the turbo oil inlet, then prime the turbine by hand.
- Once the new turbo has been fitted, start the engine and let it idle for 10 minutes. Before stopping the
engine, allow it to idle for a few seconds (do not accelerate suddenly before stopping)

Original reference OEM:

074 145 701 A

074 145 701 AV

074 145 701 AX
