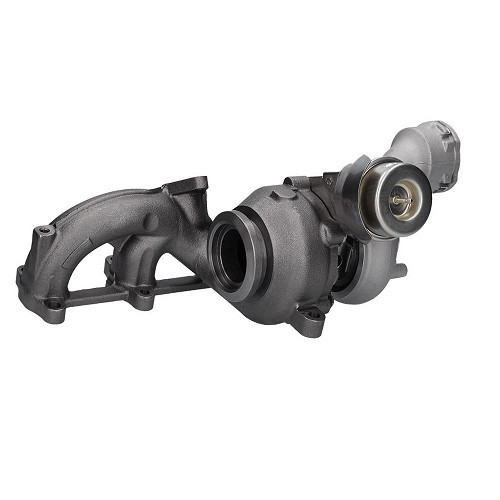

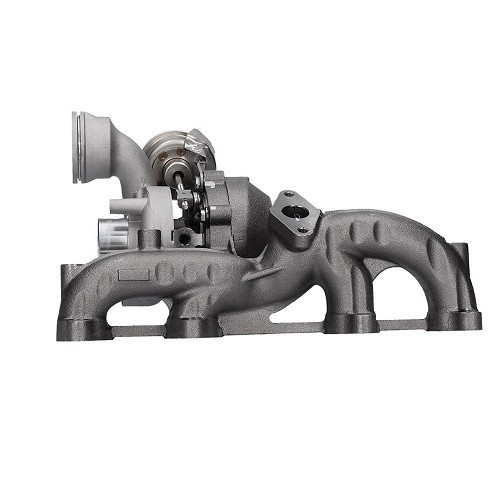

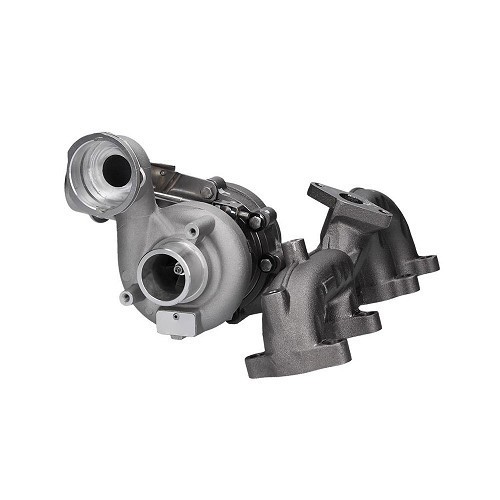

New turbo, no part exchange, for Golf 5

Details about : New turbo, no part exchange, for Golf 5

For Golf 5:
- 1.9 TDi 90hp (BRU, BXF)
- 1.9 TDi 105hp (BXE, BKC)

(In replacement for original Borgwarner or Garett assembly)

The following precautions are to be taken when replacing a Turbo charger:
- The oil circuit must be cleaned to ensure that any residues that may block the circuit are removed
- The oil and oil filter must be replaced
- The oil intake and return pipes must be checked and cleaned
- The air hoses and breather must also be checked
- With the help of a syringe, feed oil into the turbo via the oil inlet, then start the turbine manually.
- Once the new turbo is fitted, start the engine and let it tick over for 10 minutes. Before stopping the
engine, let it tick over for a few seconds (do not accelerate brusquely before turning off)

Original reference OEM:

03G 253 014 F
