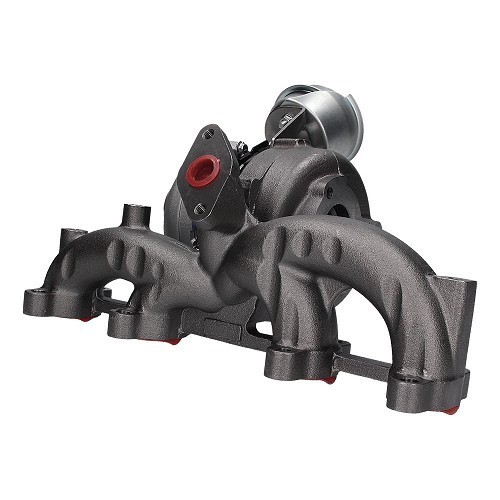

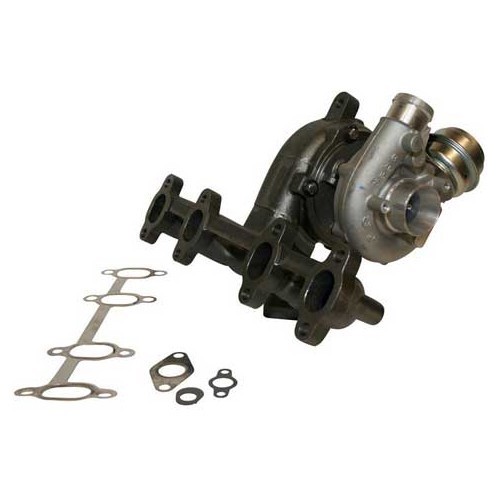

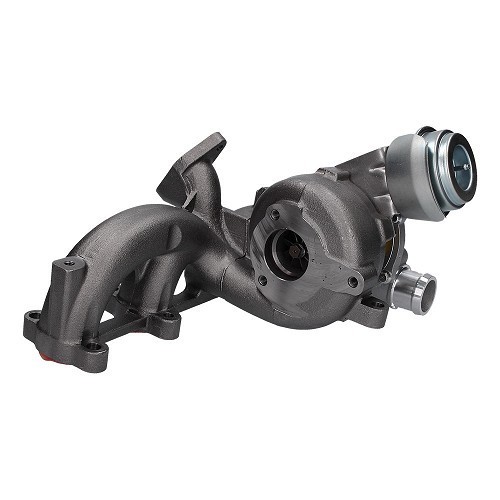

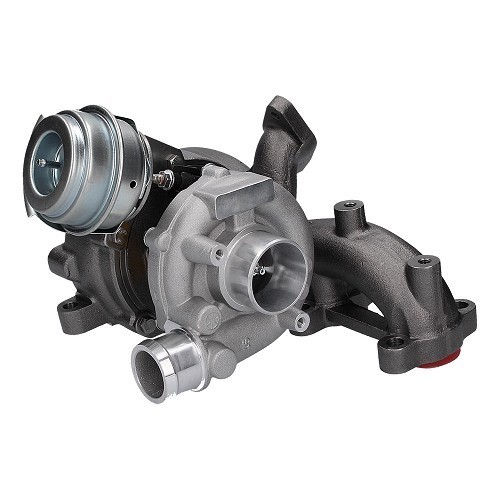

New turbo without exchange for Golf 4 TDi 100/110hp

Details about : New turbo without exchange for Golf 4 TDi 100/110hp

For Golf 4 and Bora from 02/2000 ->05/2006:
- 1.9 TDi 100hp (ATD)
- 1.9 TDi 110hp (ASV)

Precautions must be taken when replacing a turbocharger:
- The oil system must be cleaned to remove any residue which may block it
- The oil and oil filter must be replaced
- The oil inlet and return ducts must be checked and cleaned
- The air hoses and breather hose must also be checked
- Using a syringe, fill the turbo with oil via the turbo oil inlet, then prime the turbine by hand.
- Once the new turbo has been fitted, start the engine and let it idle for 10 minutes. Before stopping the
engine, allow it to idle for a few seconds (do not accelerate suddenly before stopping)

Original reference OEM:

038 253 019 D

038253019E

038253019N

03G253014E
