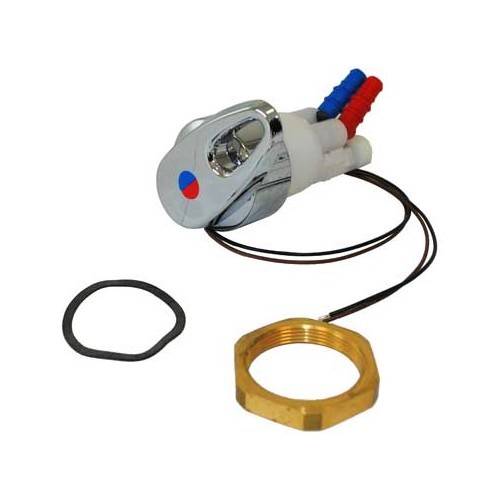

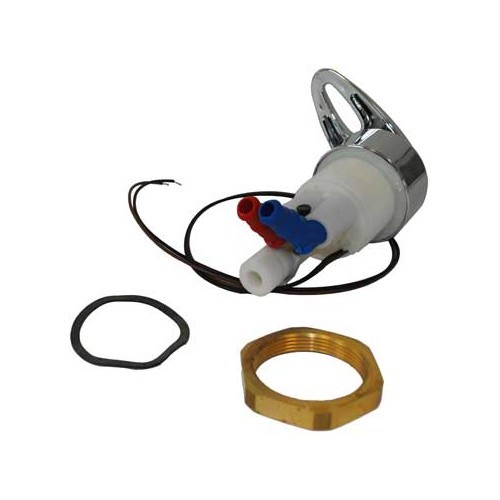

Twist ceramic mixer tap UT REICH

Details about : Twist ceramic mixer tap UT REICH

Recommended for motorhomes, caravans, vans and boats, the UT REICH Twist mixer tap can also be used to design a shower, featuring a watertight contactor with a ceramic cartridge. Modular, this mixer can be flush-mounted vertically or horizontally. With its integrated contactor, 12 V and IP 67 waterproofing, it can be supplied under pressure via a submersible pump, or via a pressurized water group (up to 6 bars). Water inlets are 10/12 mm hose barbed, while the mixed water outlet is 3/8" (12x17).

Other features:
- Color: chrome
- Height: 40 mm
- For max. tray thickness: 27 mm
- Mounting diameter: ø 39 mm
- Max. pressure: 6 bar
- Hot/cold water inlet connection: 10/12 mm spline
- Mixed water outlet: 3/8'' male thread (12x17).
- IP67 waterproof contactor
- Voltage: 12/24 V
- Max. current: 4 A
- Weight : 0,170 kg

Original reference OEM:

mitigeur Reich

ceramik twist

574-600000
