Water cooler for BMW 3 Series E30 phase 2 (09/1987-) - M20 engine manual gearbox without air conditioning

Details about : Water cooler for BMW 3 Series E30 phase 2 (09/1987-) - M20 engine manual gearbox without air conditioning

Aluminum coolant radiator for BMW 3 series E30 phase 2 with manual gearbox and without air conditioning :

4-door saloon :
- 320i 6cyl 129hp phase 2 from 09/1987 to 02/1991 (engine code M20B20)
- 325i 6cyl 170hp phase 2 from 09/1987 to 01/1991 (engine code M20B25)
- 325ix 6cyl 170hp phase 2 from 09/1987 to 12/1990 (engine code M20B25)

2-door coupé :
- 320i 6cyl 129hp phase 2 from 09/1987 to 04/1991 (engine code M20B20)
- 325i 6cyl 170hp phase 2 from 09/1987 to 03/1991 (engine code M20B25)
- 325ix 6cyl 170hp phase 2 from 09/1987 to 02/1991 (engine code M20B25)

Touring :
- 320i 6cyl 129hp from 01/1988 to 04/1991 (engine code M20B20)
- 325i 6cyl 170hp from 07/1987 to 04/1993 (engine code M20B25)
- 325ix cat. 6cyl 170hp from 01/1988 to 12/1992 (engine code M20B25)

Cabriolet :
- 320i 6cyl 129hp from 09/1987 to 09/1990 (engine code M20B20)
- 325i 6cyl 170hp from 09/1987 to 09/1990 (engine code M20B25)
- 320i 6cyl 129hp from 10/1990 to 01/1993 (engine code M20B20)
- 325i 6cyl 170hp from 10/1990 to 01/1993 (engine code M20B25)

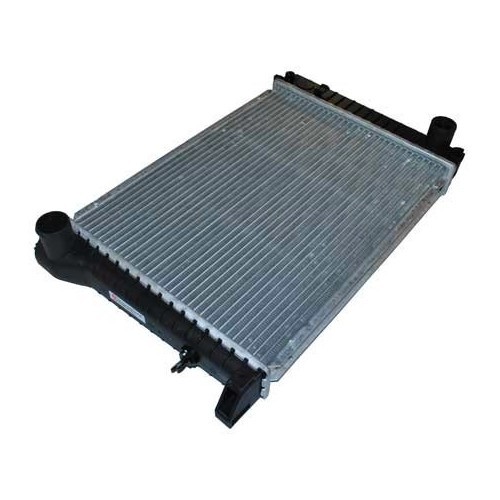

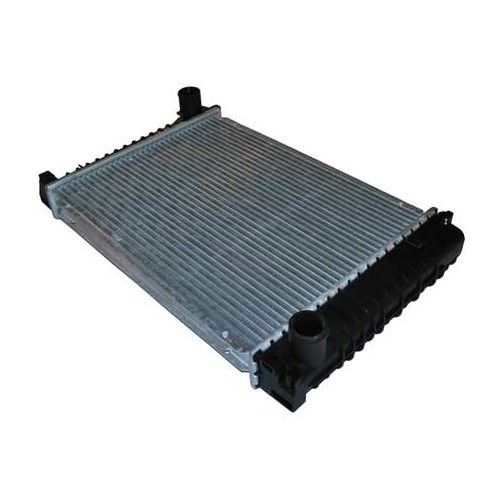

Water radiator with aluminum harness and plastic boxes
Harness dimensions (without boxes) : Height 322 mm x Width 440 mm x Thickness 34 mm
Inlet and outlet diameters: 40 mm
Supplied with plastic bleed screw.

Suitable for right-hand drive (RHD) and left-hand drive.

Original reference OEM:

17 11 1 712 823
