Water radiator for BMW 3 Series E30 - M40 engine manual gearbox with air conditioning

Details about : Water radiator for BMW 3 Series E30 - M40 engine manual gearbox with air conditioning

Aluminum coolant radiator for BMW 3 series E30 phase 2 with manual gearbox and air conditioning :

4-door sedan :
- 316i 102cv from 08/1988 to 04/1991 (engine code M40B16)
- 318i 115cv from 08/1987 to 04/1991 (engine code M40B18)

2-door coupe :
- 316i 102cv from 08/1988 to 04/1991 (engine code M40B16)
- 318i 115cv from 08/1987 to 04/1991 (engine code M40B18)
- 318is 136hp from 09/1989 to 04/1991 (engine code M42B18)

Touring :
- 316i 102cv from 08/1991 to 02/1994 (engine code M40B16)
- 318i 115cv from 03/1989 to 02/1994 (engine code M40B18)

Convertible :
- 318i 115cv from 09/1990 to 04/1993 (engine code M40B18)

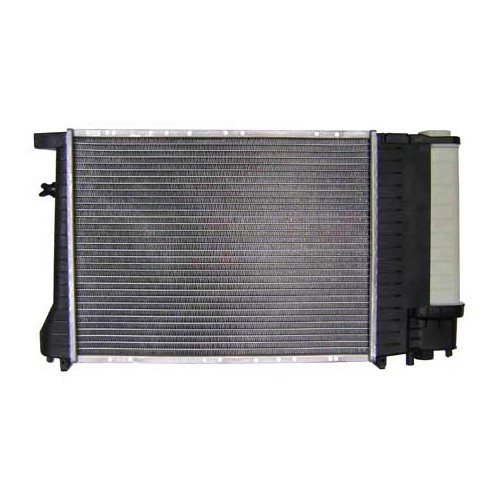

Water radiator with aluminum beam and plastic boxes

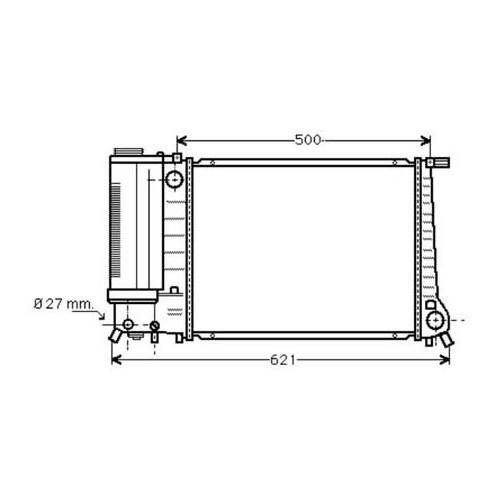

Beam dimensions (without boxes) : Height 327 mm x Width 440 mm x Thickness 33 mm
Inlet and outlet diameters: 40 mm

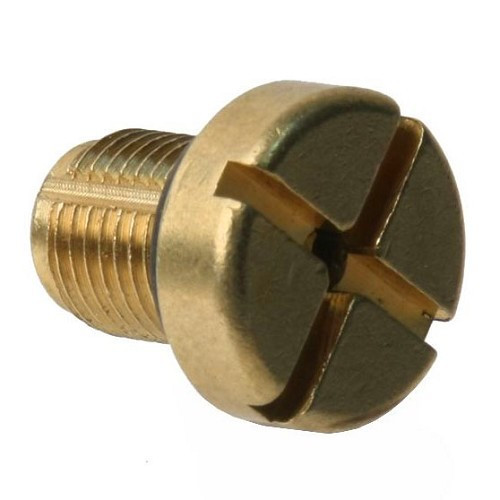

Supplied with plastic bleed screw and buffer tank (also called expansion tank)
1.4bar calibration radiator cap not included (reference BC54800 to be ordered separately)
For the 2-door Coupe version 318is (engine code M42B18) only: 2.0bar calibration plug reference BC54802 to be ordered separately

Suitable for right hand drive (RHD) and left hand drive.

Original reference OEM:

17111712978

17111247436

17111723537

17111712982
