Water radiator for BMW 3 Series E30 - M40 engine manual gearbox without air conditioning

Details about : Water radiator for BMW 3 Series E30 - M40 engine manual gearbox without air conditioning

Aluminum coolant radiator for BMW 3 series E30 phase 2 with manual gearbox and without air conditioning:

4-door sedan:
- 316i 102hp phase 2 from 07/1987 to 12/1990 (engine code M40B16)
- 318i 115hp phase 2 from 09/1987 to 04/1991 (engine code M40B18i)

2-door coupe:
- 316i 102hp phase 2 from 09/1987 to 04/1991 (engine code M40B16)
- 318i 115hp phase 2 from 09/1987 to 04/1991 (engine code M40B18i)

Touring:
- 316i 102cv from 06/1991 to 02/1994 (engine code M40B16)
- 318i 115cv from 02/1989 to 02/1994 (engine code M40B18)

Convertible:
- 318i 115cv from 07/1990 to 04/1993 (engine code M40B18)

Water radiator with aluminum beam and plastic boxes

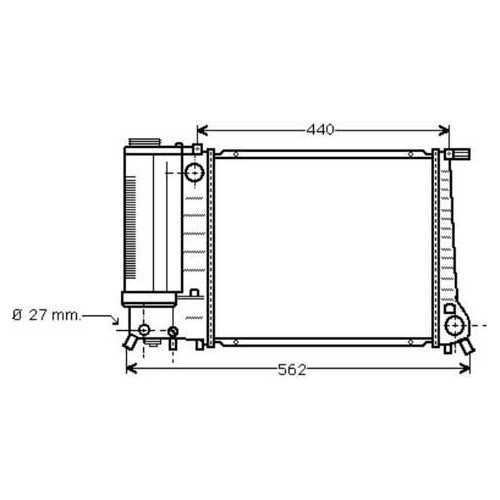

Beam dimensions (without boxes): Height 327 mm x Width 380 mm x Thickness 30 mm
Inlet and outlet diameters: 40 mm
Supplied with plastic bleed screw and buffer tank (also called expansion tank)
1.4bar calibrated radiator cap not included (reference BC54800 to be ordered separately)

Suitable for right hand drive (RHD) and left hand drive.

Original reference OEM:

17 11 1 719 024
