Water radiator for BMW series 3 E36 - manual transmission with air conditioning

Details about : Water radiator for BMW series 3 E36 - manual transmission with air conditioning

Aluminum coolant radiator for BMW 3 series E36 with manual gearbox and air conditioning :

Sedan and Touring :
- 316i 100cv and 102cv from 10/1990 to 07/1999 (engine code M40B16 and M43B16)
- 318i 113cv and 116cv from 10/1990 to 07/1999 (engine code M40B18 and M43B18)
- 318is 140 hp Sedan only from 07/1993 to 10/1998 (engine codes M42B18 and M44B19)
- 320i 150cv from 10/1990 to 07/1999 (engine codes M50B20 / TU and M52B20)
- 323i 170cv from 06/1995 to 07/1999 (engine code M52B25)
- 325i 192cv from 10/1990 to 01/1995 (engine codes M50B25 / TU)
- 328i 193cv from 01/1995 to 07/1999 (engine code M52B28)

Coupe and Convertible :
- 316i 102cv Coupé only from 08/1993 to 04/1999 (engine code M43B16)
- 318i 116cv Cabriolet only from 03/1994 to 12/1999 (engine code M43B18)
- 318is 140hp Coupé only from 02/1992 to 04/1999 (engine codes M42B18 and M44B19)
- 320i 150cv from 08/1992 to 12/1999 (engine codes M50B20TU and M52B20)
- 323i 170cv Coupé only from 06/1995 to 04/1999 (engine code M52B25)
- 325i 192hp from 01/1992 to 0131995 (engine codes M50B25 / TU)
- 328i 193cv from 01/1995 to 12/1999 (engine code M52B28)

Compact :
- 316i 1.6l 102cv from 03/1994 to 12/1998 (engine code M43B16)
- 316i 1.9l 105cv from 01/1999 to 07/2000 (engine code M43B19)
- 318ti 140cv from 08/1994 to 07/2000 (engine codes M42B18 and M44B19)
- 323ti 170 hp from 06/1997 to 07/2000 (engine code M52B25)

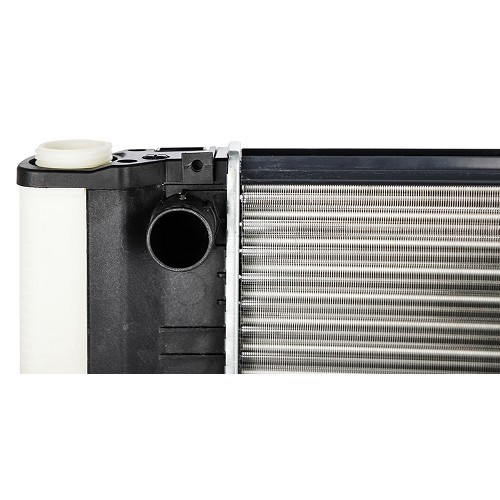

Water radiator with aluminum beam and plastic boxes

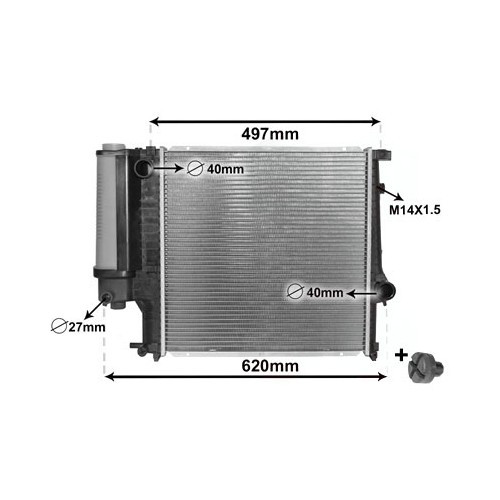

Beam dimensions (without boxes) : Height 435 mm x Width 440 mm x Thickness 35 mm
Inlet and outlet diameters : 40 mm
Supplied with plastic bleed screw and buffer tank
2.0bar calibration radiator cap not included (reference BC54805 to be ordered separately)

Original reference OEM:

17 11 1 728 907
