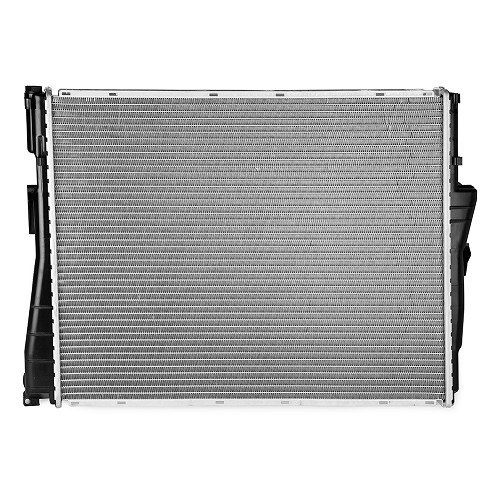

Water radiator for BMW Series 3 E46 (04/1997-08/2006)

Details about : Water radiator for BMW Series 3 E46 (04/1997-08/2006)

Aluminum coolant radiator for BMW 3 series E46 with manual or automatic gearbox from 04/1997 until 08/2006 (including 4-wheel drive) :

- All petrol and diesel models with or without air conditioning (except M3)

Water radiator with aluminum beam and plastic boxes
Beam dimensions (without boxes) : Height 445 mm x Width 580 mm x Thickness 32 mm
Inlet and outlet diameters : 38.7mm
Supplied with plastic bleeder screw, adjustment screw (depending on whether automatic or manual transmission, the length of the screw changes to allow the LDR to pass to the automatic transmission oil cooler) and gaskets.

Original reference OEM:

17 11 9 071 517
