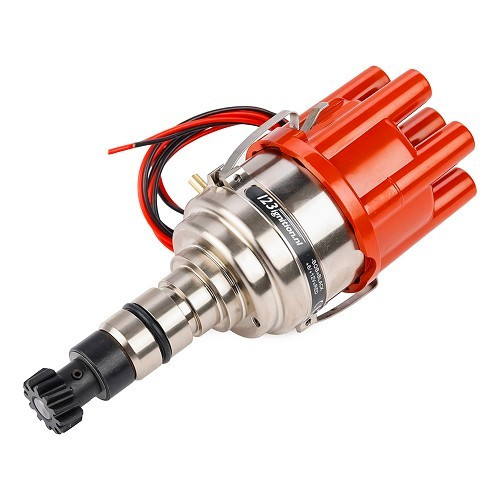

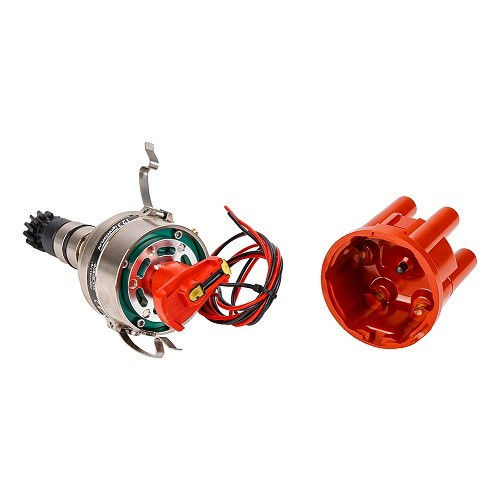

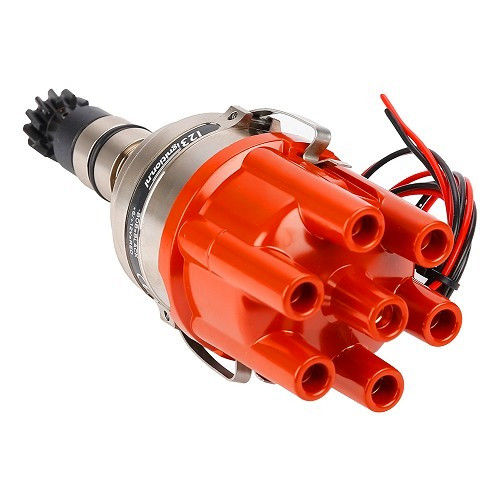

123 IGNITION electronic igniter for Porsche 911 (1965-1971)

Details about : 123 IGNITION electronic igniter for Porsche 911 (1965-1971)

123 IGNITION electronic igniter for Porsche 911 2.0 and 2.2:

- 911 2.0 from 1965 to 1968
- 911 2.0 T / L / E / S from 1967 to 1969
- 911 2.2 T / E / S from 1970 to 1971

It replaces the original one. You can choose from 16 tuning curves, which correspond to those of your original distributor. Simply turn the igniter dial to the setting indicated in the supplied manual.

The 123 IGNITION electronic igniter can be connected to both 911s without HKZ and those equipped with the 3-pin HKZ box.

If your vehicle is fitted with an HKZ box, you must use the original coil.
For 911s without HKZ, a high-performance ignition coil with a resistance greater than 1 ohm, or the original coil, will do.

Voltage: 4.0 - 15.0 Volts
Engine speed: 500 - 8000 rpm

Enclosures :
- installation guide
- different curves

Original reference OEM:

123-POR911SMALL-6-R-
