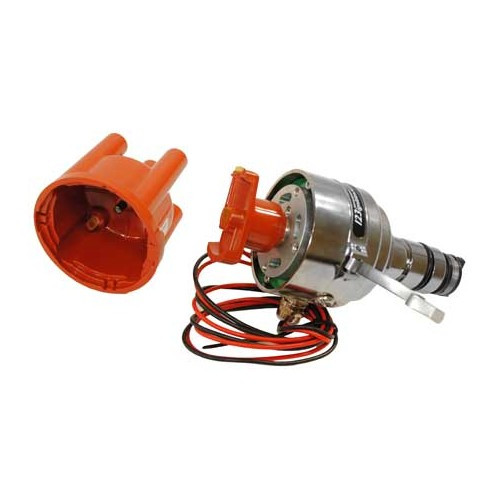

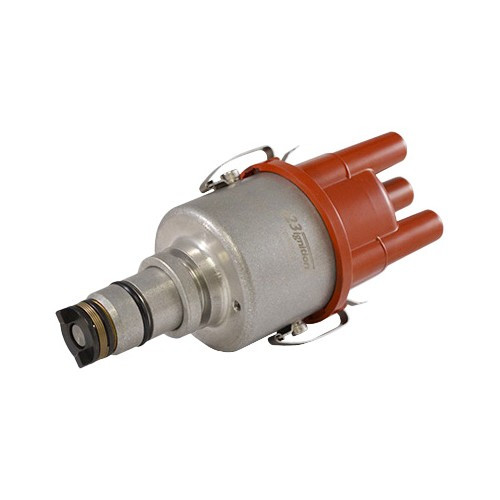

123 IGNITION electronic ignition for Porsche 914-4 with injection (1970-1976)

Details about : 123 IGNITION electronic ignition for Porsche 914-4 with injection (1970-1976)

123 Ignition electronic ignition for Porsche 914-4 with injection :

- 914-4 1.7 - 80 hp (022-W) from 1970 to 1973
- 914-4 1.7 - 80 hp (022-EA) from 1972 to 1973
- 914-4 1.7 - 72 hp (022-EB) from 1972 to 1973
- 914-4 1.8 - 76 hp (022-EC) from 1974 to 1976
- 914-4 2.0 - 95 hp (039-GA) from 1973 to 1974
- 914-4 2.0 - 100 hp (039-GB) from 1973 to 1976
- 914-4 2.0 - 88 hp (039-GC) from 1975 to 1976

You can select one of the 16 parameterized curves corresponding to your motor.

The installation manual in French supplied with the igniter shows the correspondence between the original Bosch igniter references and the curve to be selected on the 123.

Ignition coil: The original one or high efficiency with resistance greater than 1.0 ohm

Original reference OEM:

123\PORSCHE-4-R-V-IE
