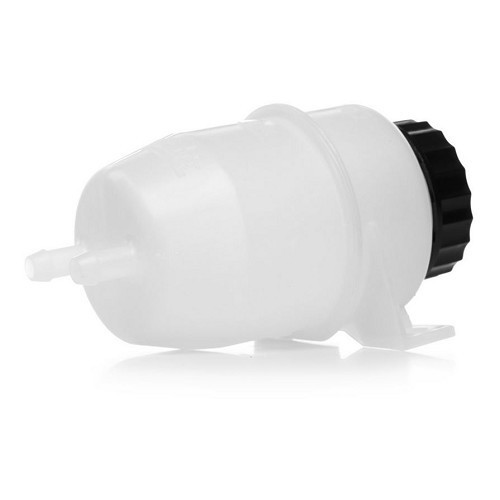

ATE brake fluid expansion tank for BMW 02 Series E10 Sedan Touring and Convertible (03/1966-11/1975) - 2 outlets

Details about : ATE brake fluid expansion tank for BMW 02 Series E10 Sedan Touring and Convertible (03/1966-11/1975) - 2 outlets

ATE dual-connection brake fluid expansion vessel for BMW 02 series E10 Sedan, Cabriolet and Cabriolet :

Sedan :
- 1600-2 85hp phase 1 from 03/1966 to 03/1971 (engine code M116)
- 1602 85hp phase 1 from 04/1971 to 08/1973 (engine code M116)
- 1602 85hp phase 2 from 09/1973 to 10/1975 (engine code M116)
- 1600ti 105hp phase 1 from 09/1967 to 12/1968 (engine code M116)
- 2002 100hp phase 1 from 01/1968 to 08/1973 (engine code M05)
- 2002A auto 100hp phase 1 from 01/1969 to 08/1973 (engine code M05)
- 2002 100hp phase 2 from 09/1973 to 11/1975 (engine code M05)
- 2002A auto 100hp phase 2 from 09/1973 to 06/1975 (engine code M05)

Touring :
- 2000 100hp phase 1 from 04/1971 to 08/1973 (engine code M05)
- 2000A auto 100hp phase 1 from 05/1971 to 09/1972 (engine code M05)

Cabriolet :
- 1600-2 85hp phase 1 from 01/1968 to 06/1971 (engine code M116)

WARNING: We advise you to check the type of mounting on your vehicle before ordering, as there is a 3-outlet brake fluid reservoir!

On the BMW E10, the brake fluid expansion tank is located inside the engine compartment on the left front fender strut, above the master cylinder. It is connected via 2 blue hoses (order no. VH24725 separately).

Original reference OEM:

34321112400
