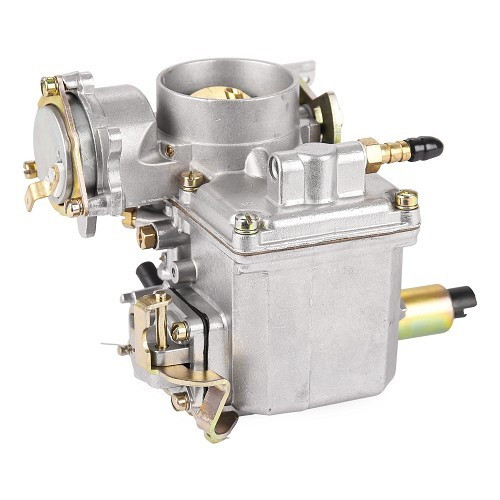

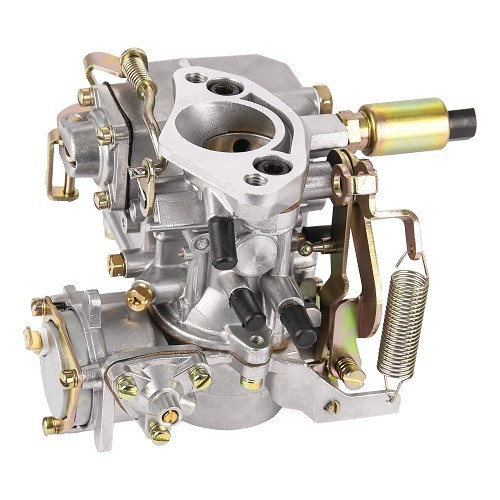

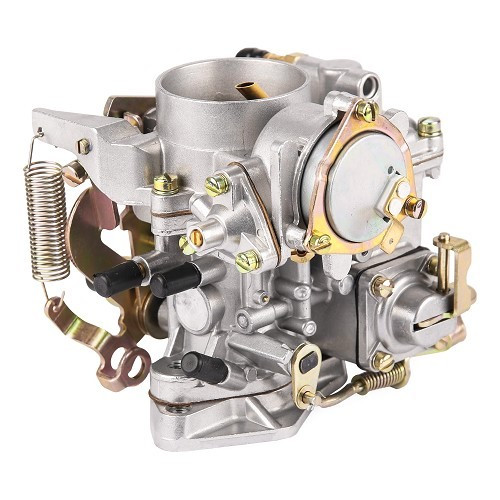

Carburettor type 30/31 PICT for Volkswagen Beetle, Karmann-Ghia and Combi

Details about : Carburettor type 30/31 PICT for Volkswagen Beetle, Karmann-Ghia and Combi

30/31 PICT carburetor
Equipped with piston choke and 12-volt choke.
(a 6 Volt choke can be installed instead ref.VC71200).

Suitable for :
VW Cox, Karmann-Ghia

Sometimes supplied with an offset spacer which allows it to be mounted on a 34" intake pipe (68 mm center distance).
If this is the case (depending on deliveries): to get back to a small 54 mm center distance, unscrew the spacer and use the spacer fixing screws to fix the carburetor to the pipe.

Original reference OEM:

113 129 027H

113129031J
