Clutch centring device for Volkswagen Beetle, Combi, Transporter, Porsche 356 and 912

Details about : Clutch centring device for Volkswagen Beetle, Combi, Transporter, Porsche 356 and 912

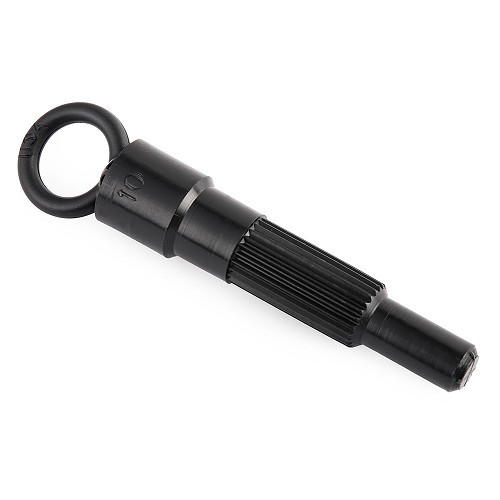

This clutch centering device, also known as a "false gearbox tail", perfectly centers the clutch disc, facilitating assembly of the engine and gearbox!

The diameter of the centering device is 26 mm at the top, 20 mm in the center (splined part) and 15 mm at the bottom. It is made up of 24 splines.

Suitable for :
- Beetle, Karmann-Ghia, Type 3, 181 :
Type 1 engines: 1200, 1300, 1500, 1600cc
- Combi Split, Combi Bay Window :
Type 2 engines: 1200, 1500, 1600cc
- Transporter T25 / T3 :
Diesel / T-Diesel engines: 1600, 1700cc
- Porsche 356 pre A from 1950 to 1955, 356 A from 1956 to 1959, 356 B T-5 from 1959 to 1962, 356 B-T6 and 356 C and SC
- Porsche 912

Original reference OEM:

AC000140
