Combination spanner in inches, size11/32 FACOM

Details about : Combination spanner in inches, size11/32 FACOM

- Standard spanner for all routine applications.
- Highmechanicalperformance combined with reduced size in accordance with aeronautical standards.
- Ring head:
- Ring clearance (dimension E) designed for improved access

Standard: ASME B107.100, SAE AS954G

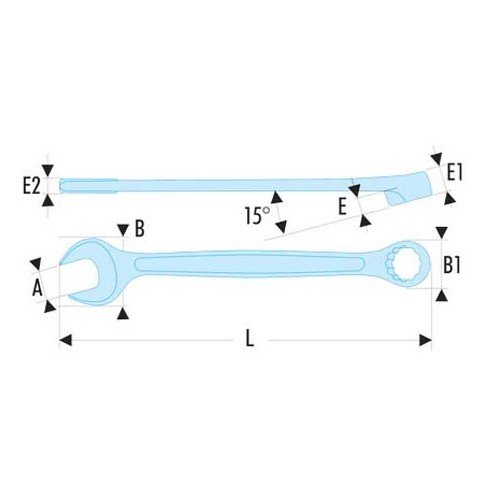

A []: 11/32
B[mm]:21.2
B1 [mm]: 14.2
C1 [mm]: 7.1
E [mm]: 3.9
E max. [mm]:3.9
E1[mm]: 7.1
E2 [mm]: 4.7
L [mm]: 138
l [mm]: 138
[g]:35

Original reference OEM:

FACOM 440-11-32
