Fan TURBO KIT 12V FIAMMA

Details about : Fan TURBO KIT 12V FIAMMA

Fan TURBO KIT 12V FIAMMA .

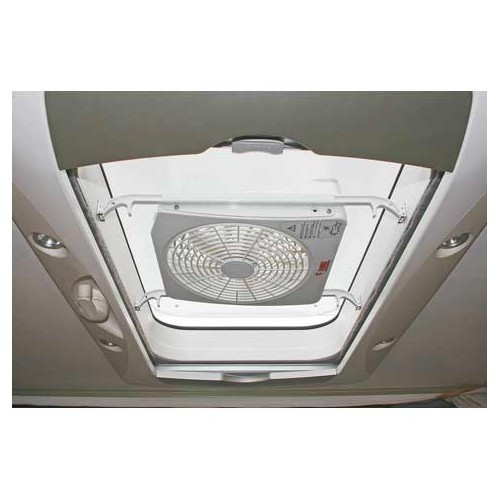

Patented telescopic fixing system. Installation on all 40x40 cm skylights (except Vent, Turbo Vent and other Fiamma 40x40 cm skylights) and skylights up to 50x70 cm. Equipped with a Ø 24cm propeller and 2 telescopic bindings adjustable from 36 to 48 cm. Delivered with fixed 12V power cable and cigar lighter power cable. Works with fan and extractor. Can be battery operated (8 x 1.5V batteries not included).
Power consumption: 3 W.
Ø ventilation propeller: 24 cm.
Absorption min/max: 0.20/0.26 A
Max. air volume: 5,4m³/min.
Voltage: 12 V.
Comes standard with a cigarette lighter power cable and a power cable for the motorhome's 12Vdc device to work both as a fan and as an air extractor. Possibility to operate it with batteries (with 8 batteries of 1.5 V, not included).
Only operate when the vehicle is stationary and the skylight is open.

Fiamma 98683-059

Can be installed on Fiamma Vent 50, Omni Vent, REmiTop 400, Seitz Mini Heki (without bar only), Seitz Midi Heki (without bar only). Not suitable for any other model of skylight.

Original reference OEM:

Fiamma 98683-059

Turbo kit

Turbo kit Fiamma
