Skylight and accessories

Let natural light into your motorhome, caravan, ... with this QUIPON SKY 50 x 70 cm skylight , which, thanks to its large size, provides maximum natural light. You'll also let in fresh outside air, which will dispel cooking smells and ventilate your cabin. Developed by QUIPON, a brand of German motorhome, caravan and van manufacturer ERWIN HYMER, you'll be reassured by the quality standards and materials. It fits vehicles with roof thicknesses from 25 to 60 mm. It has 3 opening levels, in addition to the closed position. Blackout roller blind, high-quality insect screen, LED lighting combined with forced ventilation, complete this skylight for your utmost comfort.

Features:
- Hood color: white.
- Installation dimensions (LxW): 70x50 cm.
- Roof thickness required: 25-60 mm.
- External dimensions (Lxhxp): 833 x 90 x 633 mm.
- Interior dimensions (Lxhxp) :
- Hood height outside: 90 mm.
- Opening mode: bracket.
- Glazing: double glazed.
- 3 detent positions: ventilation, 20°, 70°.

- Weight: 8.2 kg

QUIPON code : 9955468.

Freshen up the air inside your motorhome or caravan by installing a fan to facilitate air circulation in the vehicle, without the need for a costly, high-maintenance air-conditioning system. Night and day, you can use it to evacuate hot air or bring fresh air inside, thanks to its 6 reversible speeds. You can keep the screen in place.
Its compact size leaves plenty of space for light to pass through.
It fits all windows, roof vents and skylights from 380 to 550 mm wide.
Max. air volume: 8 m³/min.
Fan blade diameter: 14 cm.
Number of blades: 2.
Number of speeds: 6 (600 to 220 rpm).
Noise level: 7 to 32 dB depending on speed.
Voltage: 12V.

New version: now remote-controlled.

TITAN: TTC-SC21 / V3

Fan TURBO KIT 12V FIAMMA .
Patented telescopic fixing system. Installation on all 40x40 cm skylights (except Vent, Turbo Vent and other Fiamma 40x40 cm skylights) and skylights up to 50x70 cm. Equipped with a Ø 24cm propeller and 2 telescopic bindings adjustable from 36 to 48 cm. Delivered with fixed 12V power cable and cigar lighter power cable. Works with fan and extractor. Can be battery operated (8 x 1.5V batteries not included).
Power consumption: 3 W.
Ø ventilation propeller: 24 cm.
Absorption min/max: 0.20/0.26 A
Max. air volume: 5,4m³/min.
Voltage: 12 V.
Comes standard with a cigarette lighter power cable and a power cable for the motorhome's 12Vdc device to work both as a fan and as an air extractor. Possibility to operate it with batteries (with 8 batteries of 1.5 V, not included).
Only operate when the vehicle is stationary and the skylight is open.

Fiamma 98683-059

Fan KIT TURBO VENT F 12V FIAMMA.
This kit brings a motorized ventilation function to your VENT F PRO Fiamma skylight.
It is equipped with a Polar Control thermostat.
Technical specifications:
- Voltage: 12 V.
- Power consumption: 36 W.
- Ø ventilation propeller: 30 cm.
- Absorption min/max: 0,30/3A.
- Max. air volume: 35 m³/min.
- Variable ventilation speed.

Fiamma ref: 07501A01.

Only operate when the vehicle is stationary and the skylight is open.

Replacement black-out blind for Thule Omnivent 40 cm skylight, models from 2008.

Part No. 13 in the diagram.

Thule ref.: 1500600710.

Fiamma's TURBO VENT PREMIUM skylight combines the best in technology, comfort and durability. Made from quality materials, it is impact and UV-resistant. With its aerodynamic hood, it reduces drag, noise and fuel consumption during the ride. Equipped with a high-performance, switchable 12V motor (aeration/ventilation) and 2 mosquito nets, it offers the very best in practicality and comfort. A contemporary design in crystal color and touch-sensitive electronic controls with LED indicators complete this skylight: a modern control panel with functions that can be operated at the touch of a finger.

Features:
- Cover color : crystal.
- Installation dimensions (LxW): 40x40 cm.
- Roof thickness required: 30- 45 mm.
- Hood height outside: 8.5 cm.
- Power: 36W.
- Power consumption: 0.3 - 3A.
- Power supply: 12 V.
- Power 36 W.
- Max. air volume 35 m3/min.
- Fan diameter 30 cm.
- Permanent ventilation 80 cm2.
- Weight 4.6 kg
- Certificates ABE 19330 E24 10R-030530.

FIAMMA Ref : 03624H2D.

Let natural light into your recreational vehicle (motorhome, caravan, van, etc.) with this QUIPON SKY 40 x 40 cm skylight. It also lets in fresh outside air, eliminating cooking smells and aerating your cabin. Developed by QUIPON, a brand of German motorhome, caravan and van manufacturer ERWIN HYMER, you'll be reassured by the quality standards and materials. It fits vehicles with roof thicknesses from 20 to 50 mm. It has 3 opening levels, in addition to the closed position. High-quality blackout roller blind and insect screen complete this skylight for your utmost comfort?

Features:
- Hood color: white.
- Installation dimensions (LxW): 40x40 cm.
- Roof thickness required: 20-50 mm.
- External dimensions (Lxhxp): 490 x 110 x 490 mm.
- Interior dimensions (Lxhxp): 500 x 33 x 500 mm.
- Hood height outside: 110 mm.
- Opening mode: bracket.
- Glazing: single-glazed.
- 3 detent positions: ventilation, 30°, 80°.
- No light or fan.

- Weight: 4.1 kg

QUIPON code : 9955471.

This kit brings a motorized ventilation function to your VENT F PRO Fiamma skylight.
It is equipped with a Polar Control thermostat and a "Touch" electronic control system.
Technical specifications:
- Voltage: 12 V.
- Power consumption: 36 W.
- Ø ventilation propeller: 30 cm.
- Absorption min/max: 0,30/3 A.
- Max. air volume: 35 m³/min.
Dimensions: 40x40cm
External recess dimensions: 46.6+ x53.1x9.2 cm.
Inside dimensions: 49x48.6x3.5 cm.
Roof thickness (min/max): 2.8 - 5.5 cm.
Permanent ventilation: 100cm².

Supplied as standard with a cigar lighter power cable and a power cable for the 12Vdc device in the motorhome to function as both a fan and an air extractor. Possibility to operate it with batteries (with 8 batteries of 1.5V, not included).
Only operate when the vehicle is stationary and the lantern is open.

Discover this new generation of rooflights, where technological progress contributes to greater user comfort. The MAXXFAN Deluxe from MAXXAIR is a premium rooflight: the passenger compartment is permanently ventilated, even when driving and in all weather conditions. Its uniquely protected hood even lets you ventilate in the rain, without the rain entering the vehicle. Let in natural light and fresh outside air in your recreational vehicle (motorhome, caravan, van, etc.), and control the MAXXFAN with its remote control. The integrated thermostat lets you regulate the desired temperature. Its 10 fan speeds let you set the temperature precisely. The removable, washable mosquito net inside, and the anti-UV treatment of the hood, make the MAXXFAN even more comfortable to use in the height of summer. The translucent color of its hood offers maximum light in the passenger compartment.

Features:
- Hood color: translucent.
- Mounting dimensions (LxW): 400x400 mm.
- Opening length/width: 400x400 mm.
- Fan Ø (mm): 300.
- Power supply: 12V.
- Min/max absorption (A): 0.2/2.3.
- Air flow (m3/min): 26.
- Weight: 9 Kg.

Fiamma's TURBO VENT PREMIUM skylight combines the best in technology, comfort and durability. Made from quality materials, it is impact and UV-resistant. With its aerodynamic hood, it reduces drag, noise and fuel consumption during the ride. Equipped with a high-performance, switchable 12V motor (aeration/ventilation) and 2 mosquito nets, it offers the very best in practicality and comfort. An up-to-date design and its white color and touch-sensitive electronic controls with LED signaling complete this skylight: a modern control panel with functions that can be operated at the touch of a finger.

Features:
- Hood color: white.
- Installation dimensions (LxW): 40x40 cm.
- Roof thickness required: 30- 45 mm.
- Hood height outside: 8.5 cm.
- Power: 36W.
- Power consumption: 0.3 - 3A.
- Power supply: 12 V.
- Power 36 W.
- Max. air volume 35 m3/min.
- Fan diameter 30 cm.
- Permanent ventilation 80 cm2.
- Weight 4.6 kg
- Certificates ABE 19330 E24 10R-030530.

FIAMMA Ref : 03624H2.

With its mosquito-screened inner frame, the CHANTAL skylight can be opened in all 4 directions by automatic, multi-position lifting handles. A mosquito screen protects you from insects. A mosquito net protects you from insects, and is supplied without a blackout blind.
Permanent ventilation: less draught and more ventilation thanks to 9 small tiles in the inner roof.
Cut-out dimensions (mm): 400 x 400.
For roof thicknesses from 22 to 37 mm.
White color.
Weight: 2.45 kg.RG-116815

Inner frame with mosquito screen.
Opens in all 4 directions thanks to automatic lifting handles with several positions.
Permanent ventilation: less draught and more ventilation thanks to 9 small squares inside the roof.
Cut-out dimensions (mm): 400 x 400.
For roof thicknesses from 27 to 60  mm.
Colour: cream - beige.
Weight: 2.8 kg.

High-end, sturdy, functional and complete rooflight.
Its attractive appearance will perfectly fit the interior of your motorhome, caravan or campervan.
The advantages of this product:
- Quick and easy installation with a frame and inner counter-frame.
- Double opening arms for reliable and balanced movement.
- Easy, linear opening and closing thanks to an ergonomic handle and silent movement.
- Removable mosquito screen for easy maintenance.
- Fitted with safety hooks to avoid any accidental opening of the top.
- Aerodynamic outer shape that fits into the lines of your vehicle.

Technical specifications:
Dimensions: 40 x 40 cm.
- Overall exterior dimensions: 56.6 x 53.1 x 9.2 cm.
- Overall interior dimensions: 49 x 48.6 x 3.5 cm.
- Roof thickness (min.-max.): 2.8 - 5.5 cm.
- Continuous ventilation: 100 cm².
- Weight: 4.7 kg.

Ref Fiamma 07380-02

Discover the pleasures of a well-ventilated motorhome or van, isolated from the sun's rays, with this 40x40cm CHANTAL skylight fitted with a mosquito net and blackout blind.
It opens in all 4 directions, with multi-position automatic lifting handles. A mosquito net protects you from insects, while the blackout blind keeps out the sun's rays. It provides permanent ventilation: less draught and more air thanks to 9 small tiles in the inner roof.
Cut-out dimensions (mm): 400 x 400.
For roof thicknesses from 27 to 60 mm.
White color.
Weight: 2.5 Kg

SPOILER 40 from Fiamma is a roof spoiler for 40x40 cm rooflights (Fiamma, Thule, Dometic, MPK,...).
The aerodynamic spoiler is fixed to the roof. It reduces vibrations and noise from skylights.
Made of PVC, it is UV-resistant.
No tools or drilling required. Glued to the roof with SIKALASTOMER 710 adhesive.
Color: white.
Dimensions: W:21 cm, H:9 cm, L:49 cm.
Maximum speed: 130 km/h.

Ref Fiamma 03585-01

Discover the pleasures of a well-ventilated motorhome or van, isolated from the sun's rays, with this 40x40cm CHANTAL skylight fitted with a mosquito net and blackout blind.
It opens in all 4 directions, with multi-position automatic lifting handles. A mosquito net protects you from insects, while the blackout blind keeps out the sun's rays. It provides permanent ventilation: less draught and more air thanks to 9 small tiles in the inner roof.
Cut-out dimensions (mm): 400 x 400.
For roof thicknesses from 22 to 37 mm.
Cream color.
Weight: 2.8 Kg

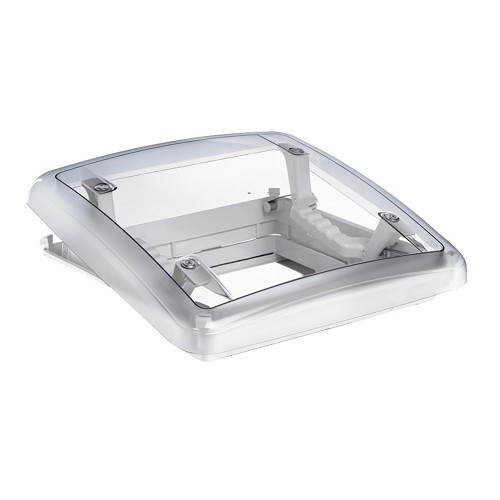

Ideal for vans and small motorhomes, the DOMETIC Micro Heki skylight brings light into the living area. In this well-equipped version, you benefit from a mosquito net and a blackout blind to protect you from the sun's rays. Above a kitchen, sleeping area or shower room, it's sure to find its place! Resistant, the roof dome is made of externally tinted double glazing. It has no permanent ventilation. Ultra-compact, it fits a 280x280 mm roof cut-out. Operation is simple: it opens and closes by means of a lever mechanism. It opens in 2 stages, up to a maximum angle of 50°.
Bolts and nuts are included in a mounting kit specific to your roof thickness. These kits are available as options. An optional adapter frame is required for roof thicknesses between 43 and 60 mm.

Technical specifications:
For roof thickness: 23-42 mm.
Cut-out size: 280x280 mm.
External dimensions: 408x370 mm.
Interior dimensions: 31x34 cm.
Interior light: 238x186 mm.
Inner frame thickness: 75 mm.
Height above roof: 99 mm.
Weight: 2.2 Kg

Dometic code: 9104117680

New design for this FIAMMA VENT 28F white 280x280 mm skylight.
Recommended for the small rooms in your motorhome, caravan or van (bathroom, shower, WC, kitchen, etc.), this skylight provides permanent ventilation. With its aerodynamic profile, thanks to its lowered interior frame, its cover reduces exposure to wind and noise, for enhanced comfort. Handy easy-opening system with handwheel. The opening system is designed to let as much light in as possible. Its integrated aluminium mosquito net can be removed for easy cleaning and helps keep you cool.
The installation is performed without drilling, thanks to the "sandwich" system on roof thicknesses between 28 & 60 mm.

Technical specifications:
Colours: outer frame - white; inner frame - ivory; cover - white.
Cutting size: 280x280 mm.
External dimensions: 32x34 cm.
Internal dimensions: 31x34 cm.
Interior light: 25x25 cm.
Roof thickness (min-max): 2.8-6 cm.
Permanent ventilation: 80 cm².
Weight: 1.8 kg.

Fiamma ref. 07902-02

Bring light into the living space of your caravan, with the DOMETIC Mini Heki S 25-42 mm skylight. Featuring a single-glazed acrylic dome and a polyurethane inner frame, it's highly resistant and comfortable. It opens with a compass mechanism (5 positions). Its adjustable insect screen and pleated blind (beige inside, aluminum outside) are mounted on a white RAL 9001 (cream) interior frame. Permanent ventilation.
Features:
- Inner frame color: white RAL 9001 (cream).
-Fits roofs from 25 to 42 mm thick.
- Cut-out dimensions: 400 x 400 mm.
- Exterior overall dimensions 497 x 497 mm.
- Interior overall dimensions 520 x 520 mm.
- Weight: 2.9 kg

Ref Dometic 9104100289

FIAMMA TURBO VENT 40 skylight, white.
High-quality, UV-resistant materials and a high-performance ventilation system that refreshes the air in the interior of your motorhome or caravan in a matter of seconds. Equipped with a thermostat that regulates the starting and stopping of the fan depending on the ambient temperature inside the vehicle. Opening and closing by a very strong central compass, offering perfect stability. Practical: the external mosquito net protects against insects and avoids the suction effect. Interior safety grid.
Casing colour: white.
Cutting size: 390 x 390mm.
External height: 85 mm.
Fan dimensions: Ø 300 mm.
Installation on roof thicknesses between 30 & 45.
Air flow rate: max. 35m³/min.
Permanent ventilation: 80 cm².
Power consumption: 0.3 to 3 A.
Voltage: 12 V.
Power: 36 W.
Weight: 4.6 kg.Fiamma 03623F01-
