FIAMMA TURBO VENT 40 skylight, white

Details about : FIAMMA TURBO VENT 40 skylight, white

FIAMMA TURBO VENT 40 skylight, white.

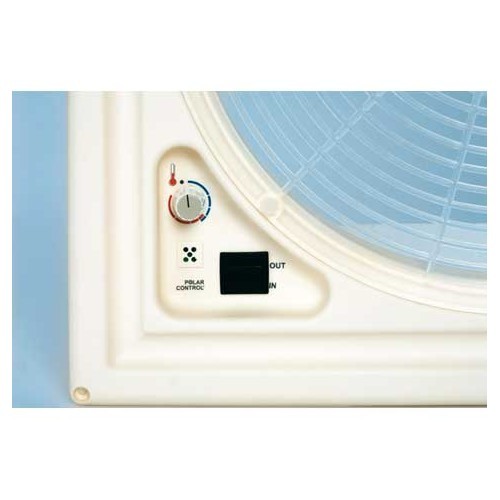

High-quality, UV-resistant materials and a high-performance ventilation system that refreshes the air in the interior of your motorhome or caravan in a matter of seconds. Equipped with a thermostat that regulates the starting and stopping of the fan depending on the ambient temperature inside the vehicle. Opening and closing by a very strong central compass, offering perfect stability. Practical: the external mosquito net protects against insects and avoids the suction effect. Interior safety grid.
Casing colour: white.

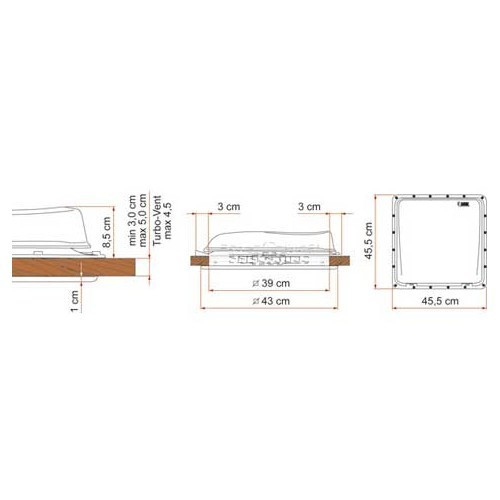

Cutting size: 390 x 390mm.
External height: 85 mm.
Fan dimensions: Ø 300 mm.
Installation on roof thicknesses between 30 & 45.
Air flow rate: max. 35m³/min.
Permanent ventilation: 80 cm².
Power consumption: 0.3 to 3 A.
Voltage: 12 V.
Power: 36 W.
Weight: 4.6 kg.

Fiamma 03623F01-

Requires 20 screws, diam 4.2x 30mm, and 4 self-tapping screws, diam 3.5 x 15 mm (not supplied with the skylight).

Original reference OEM:

Fiamma 03623F01-

TURBO VENT

Fiamma turbo vent

Fiamma turbo vent 40
