Battery

6 Volt 66 Ah / 270 A battery
Vintage-style model without base
Dimensions: L 185 x W 170 x H 172mm
Supplied empty for transport.

This battery must be refilled with a specific acid (not provided) and charged using a suitable device prior to being installed in the vehicle. For safety reasons, Mecatechnic does not ship acid.

Battery pack 80A.
Resistant to acid and petroleum products.
Delivered with strap for closing and transport and an anti-projection cover.
For a 80A battery.
Interior dim.: L:270xD:190xH:200 mm.
Exterior dim: L: 340x D:225 mm.

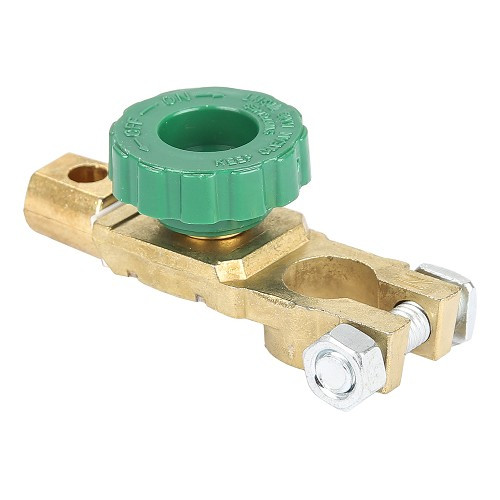

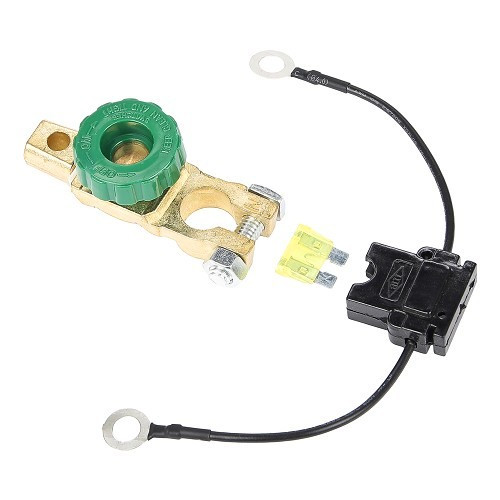

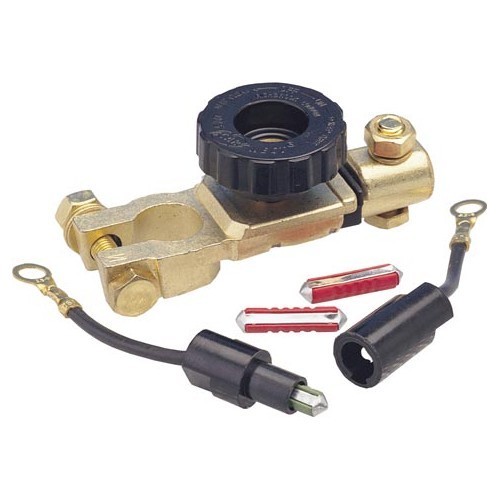

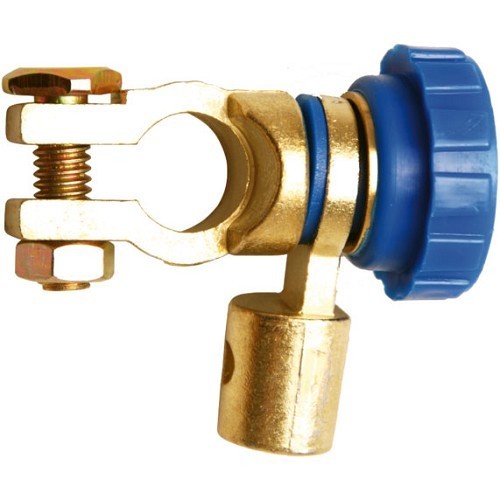

This TOOLATELIER battery switch, also known as an anti-theft battery lug, is supplied with a 20 amp flat fuse.

Very practical, it maintains the power supply to alarms, clocks, car radios, etc.

The principle is simple: when the contact knob is unscrewed and removed, starting the engine blows the fuse.
This prevents starting and keeps the vehicle stationary.

Terminal diameter: 16mm

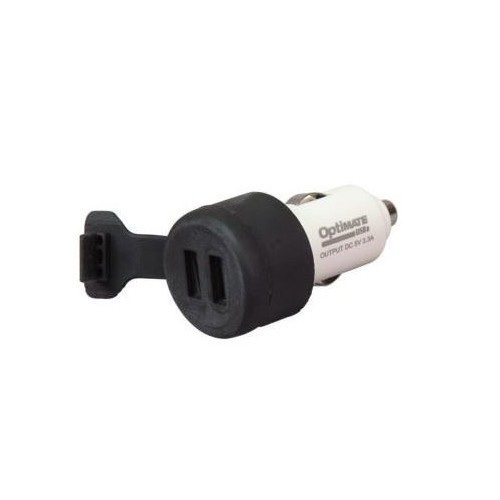

High quality Optimate socket with 2 USB outputs, 2100 mA or two 1000 mA devices, for a standard car cigarette lighter.

OptiMate 2 DUO, the powerful ‘no brainer’ battery maintainer for the hi-technology battery in any of your vehicles – Guarantees healthy lithium or lead-acid batteries!

Ideal for 12V lead-acid & 12.8V / 13.2V lithium LFP (LiFePO4) batteries.
Delivers 2 Amps charge current recommended for maintenance of larger batteries.
Charges and delivers long term maintenance – Connect to the battery and OptiMate 2 DUO does the rest, no supervision required!
Adapts automatically to Pb or LFP battery.
Safe to leave connected. Full electronic protection.
Maintains battery at full charge and good health.
Low Volt Start of 4V. Warns when battery damage is detected.
Energy saving technology.
- Stand-by power less than 0.5W.
- Efficient 24-7 battery maintenance.
Weatherproof. Rated for use down to -40°C (IP54).

OPTIMATE OP1 VOLTMATIC 6 and 12 Volt charger
Once plugged in, the AccuMate 6/12 maintains just the right voltage for your battery to prevent sulfation while the vehicle is inactive.

Completely safe long-term battery maintenance. Automatic cut-out in case of a short circuit or if the battery is disconnected.

Comes with a set of SAE waterproof permanent connectors and a set of crocodile clips.

This 12V to 6V - 3 Ohm voltage reducer is an economical solution for maintaining your 6V electrical accessories.
It's tempting to convert your 6V vehicle to 12V, but many accessories aren't compatible.Supporting accessories up to 50W, this voltage reducer offers a 3 Ohm resistance and simply connects in series to the wiring of the accessory you wish to keep in 6V.
It can be grounded, screwed to the body or wired.
Input voltage 12V > output voltage 6V

Battery safety switch housing with detachable key.
Allows the ignition circuit of your vehicle to be cut off from the inside as an effective anti-theft measure, or to break the electrical circuit of a given device.
Max intensity 100 A, max voltage 24 V.
Dimensions (mm): 90 x 97 x 70.

Large battery compartment.
Resistant to acid and petroleum products.
Delivered with strap for closing and transport and an anti-projection cover.
For batteries withmaximum size : L:390 x D:195x H:240mm.
Interior dimensions: L:390xD:195xH:240 mm.

6-step Solar and Waterproof 12V Battery Charger-Maintainer-Recoverer:
Optimate Solar Duo 60W TM523-D6TK, in travel kit.

The OPTIMATE Solar Duo TM523 D6 is ideal for charging and maintaining 12V lead-acid AGM and GEL batteries from 2 to 240Ah.
Please note that the Solar Duo 60W is NOT suitable for LFP 12.8V/13.2V lithium batteries, due to the higher charging current.

This 12V/60W solar charger is particularly popular with owners of recreational vehicles, 4x4s, motorcycles and quads, vans and other vehicles.

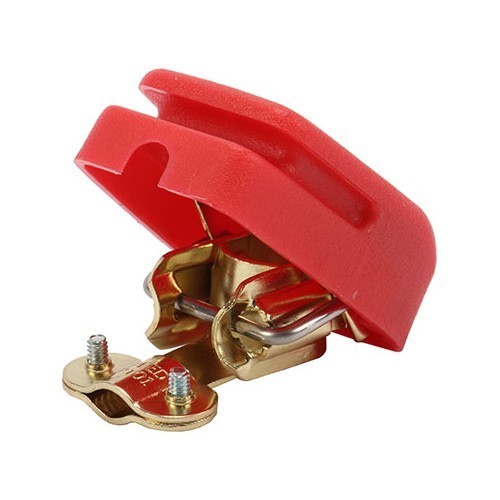

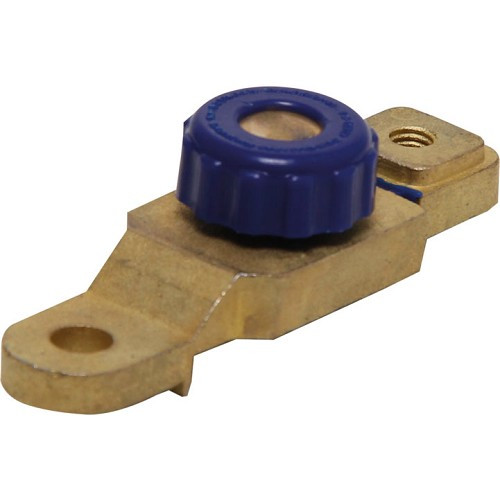

Ideal for disconnecting the battery if your motorcycle is not used for a long period of time

Fitted on the negative terminal of the battery. Suitable for batteries with flat terminals and M6 connection

Dimensions L x w x h : 64 x 21 x 19 mm
Weight: 50 g

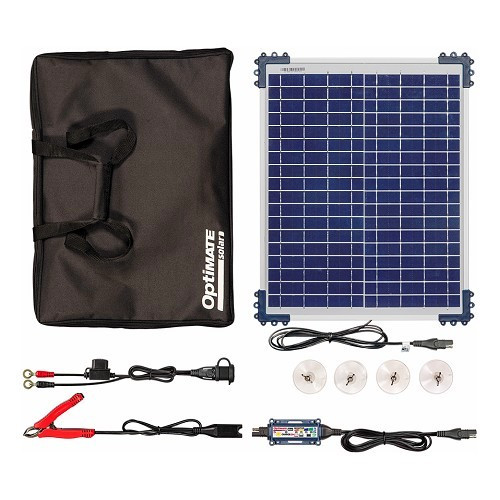

6-step Solar and waterproof 12V Battery Charger-Maintainer-Recoverer:
Optimate Solar Duo 40W TM522-D4TK, in travel kit.

The OPTIMATE Solar Duo TM522 D4 Charge Maintenance Charger is ideal for charging and maintaining 12V AGM and GEL lead-acid batteries from 2 to 240Ah, and 12.8V/13.2V LFP lithium batteries.

This 12V/40W solar charger is particularly popular with owners of recreational vehicles, 4x4s and vans.

Protects the bodywork from acid splashes, prevents paintwork destruction and corrosion of the battery holder. Universal mat to be placed under the battery (cut to size if necessary).
dimensions in mm (L x W x D) : 310 X 204 x 2.5

This 12V to 6V voltage reducer allows you to keep your 6V electrical accessories.
It's tempting to convert your 6V vehicle to 12V, but many accessories aren't compatible.Supporting accessories up to 50W, this voltage reducer offers a resistance of 4 Ohm and simply connects in series to the wiring of the accessory you wish to keep in 6V.
It can be grounded, screwed to the body or wired.
Input voltage 12V > output voltage 6V

Adapter which allows you to use the cigarette lighter socket to charge / hold the charge of the battery. Useful on vehicles where it is difficult to access the battery.

Only for cigarette lighters which are supplied after the ignition is switched on

Cable length: 50 cm
SAE 2 pin connector in compliance with industrial standards.
10 A Fuse (internal connector)
Maximum nominal cable capacity: 10 A.
Rubber sleeve included

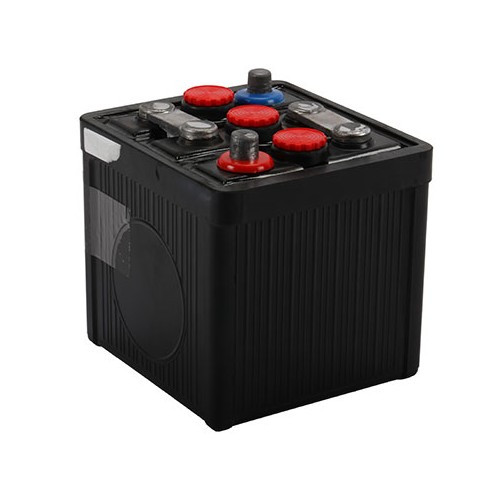

6 Volt 84 Ampere battery
Vintage-style model without base
Supplied empty for transport.

This battery must be refilled with a specific acid (not provided) and charged using a suitable device prior to being installed in the vehicle. For safety reasons, Mecatechnic does not ship acid.

Dimensions: 22cm(L) x 17cm(W) x 20cm(H)

6 Volt 100 Ampere battery
For maximum power!
Vintage-style model without base
Dimensions: L 225 x W 174 x H 217mm
Supplied empty for transport.

This battery must be refilled with a specific acid (not provided) and charged using a suitable device prior to being installed in the vehicle. For safety reasons, Mecatechnic does not ship acid.

Indispensable for all motorhomes fitted with an auxiliary battery, it recharges it slowly and automatically while driving, thus avoiding excessive flow from the alternator and the original circuit. Not for connection to lithium batteries.

Model for 1 auxiliary battery.
Max. battery capacity: 300 Ah.
Charging current: 50A nominal, 70A instantaneous (max).
Standby consumption < 50µA.
Motor battery voltage: 12V.
Auxiliary battery voltage: 12V.
Coupling information: yes.
Operating temperature: -20°C/ 50°C.
Cable cross-section: maximum 6mm².
Overall dimensions: 120 x 59 x 35 mm, case: 89 x 60 x 35 mm.
Fixing center distance: 105 mm.
Weight: 250 g

Product benefits:
- Protected main battery and alternator. Extended service life.
- Permanently charged auxiliary batteries.
- Automatic, unattended operation.
- Possibility of recharging the main battery via the charger, solar panel or wind turbine (useful during wintering).

WARNING: Protect each battery outlet (terminal ) with a 50A MAXIFUSE fuse, not supplied.

For low-capacity batteries.
Indispensable for all motorhomes with auxiliary batteries, it recharges them slowly and automatically while you're on the road, avoiding excessive flow from the alternator and the original circuit.
Starts for 3 batteries, including fridge relay. Do not connect to lithium batteries.
Base: grey or black.
Max. battery capacity: 300 Ah.
Charging current: 50A nominal, 70A instantaneous (max).
Cable cross-section: maximum 6mm² .
Overall dimensions: 120 x 59 x 35 mm, case: 89 x 60 x 35 mm.
Weight: 240 g

Product benefits:
- Protected main battery and alternator. Extended battery life.
- Permanently charged auxiliary batteries.
- Automatic, unattended operation.
- Possibility of recharging the main battery via the charger, solar panel or wind generator (practical for wintering).

12V operation without charger or alternator:
On-board applications (pumps, lighting, heating, etc.) are powered by the two batteries in parallel. When the common voltage of these two batteries reaches 12.7V ( or - 0.1V), the main battery disconnects. Consumption for the various applications will then come solely from the auxiliary battery.

The separator-coupler has 3 protected feeders:
- E1 (on auxiliary battery) protected by a 30A fuse.
- an E2 feeder (on motor battery) protected by a 15A fuse.
- an E3 feeder (on motor battery) for the absorption refrigerator, protected by a 15A fuse.
