Accelerator cable

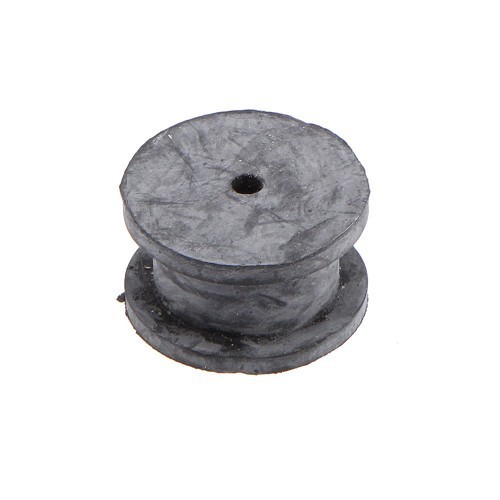

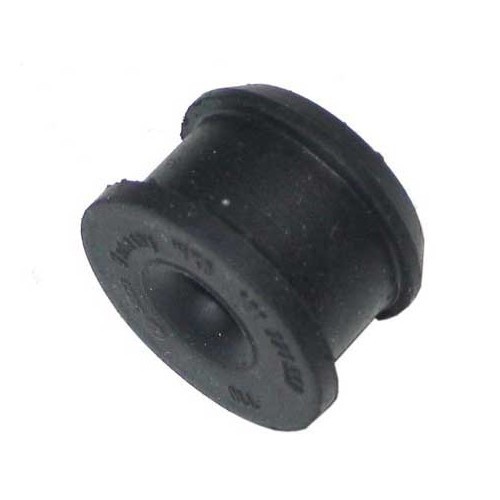

Rubber silentbloc for the accelerator cable fixation on the pedals (except automatic) for Golf 1 and Scirocco

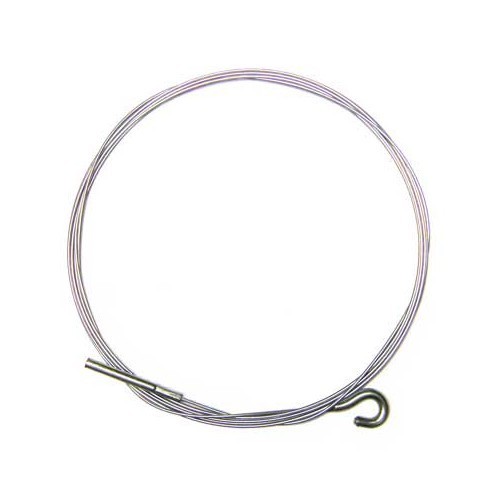

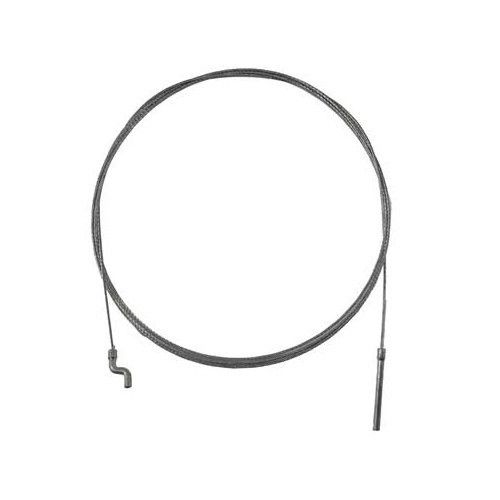

Gas pedal cable
Length: 2650 mm


For VW Beetle (incl. 1302 / 1303), Karmann-Ghia, 181 and type 3 with single- and twin-induction engines (Fastbach, Notchback, Variant)
Years: 08/1971 ->
Chassis: since 112 2000 001 ->

Always have a spare in the boot, with a wrench 8 for fitting!

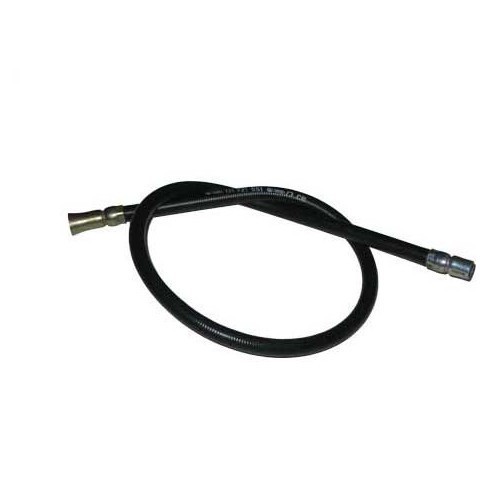

Gaine de protection du câble d'accélérateur, liaison entre le châssis et le moteur. Longueur : 610 mm

Pour VW Coccinelle Berline & Cabriolet
Années : Depuis 11/1965->
Châssis : Depuis N° 116 460 614->

Always have a spare in the trunk with a key of 8 to mount!

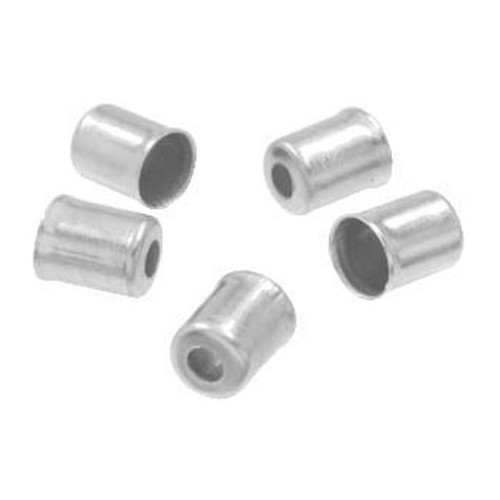

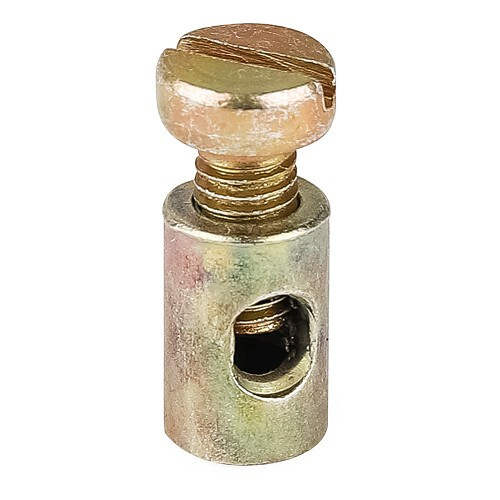

Serre câble de câble d'accélérateur pour VW Combi Split Brésilien de 1957 à 1975.

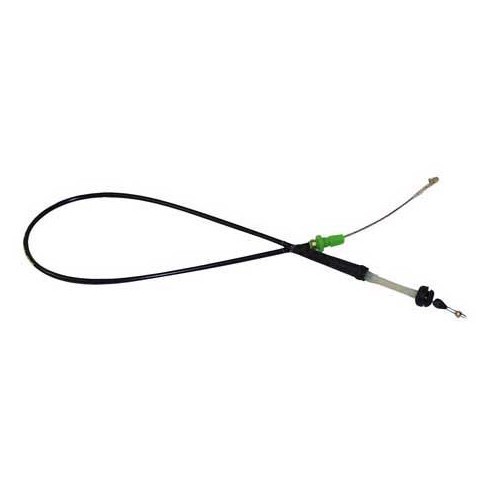

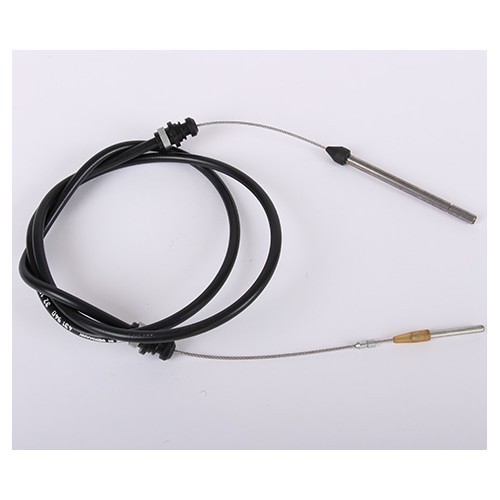

For Golf 2 and Jetta 2,
with manual gearbox,
for engines with carburettor or Monojetronic injection

Accelerator cable length 1068 mm
For engines with carburetor (except JH)
Only with manual gearbox.

Scirocco :
- 1.1 / 1.3 (chassis n°53-A-000 001->) 80->
- 1.5 / 1.6 (chassis n°538 2039 454->) 78->
- 1.8 08/83->

Accelerator cable length 1068 mm
For engines with carburetor (except JH)
Only with manual gearbox.

For Golf 1 Berline & Jetta 1 :
- 1.1 / 1.3 (chassis n°17-A-000 001->) 80->
- 1.5 / 1.6 (chassis n°178 3240 542->) 78->

Golf 1 Cabriolet :
- 1.1 / 1.3 (chassis n°15-A-800 001->) 80->
- 1.5 / 1.6 (chassis n°159 2800 001->) 79->
- 1.8 08/83 ->07/93

Golf 1 Caddy (Pick-up) :
- 1.5 10/82->
-1.6 10/82->
- (except 1.8 JH 95cv)

Accelerator cable, length: 1,068 mm.
For engines with carburettor or Monojetronic injection.
Only with manual gearbox.

For VW Passat (petrol) 88 ->00:
- 1.6 72hp (RF) 04/88 ->07/89
- 1.6 75hp (EZ, 1F) 04/88 ->09/91
- 1.8 75hp (AAM) 08/91 ->10/00
- 1.8 90hp (RP) 04/88 ->07/91
- 1.8 90hp (ABS) 08/91 ->09/94

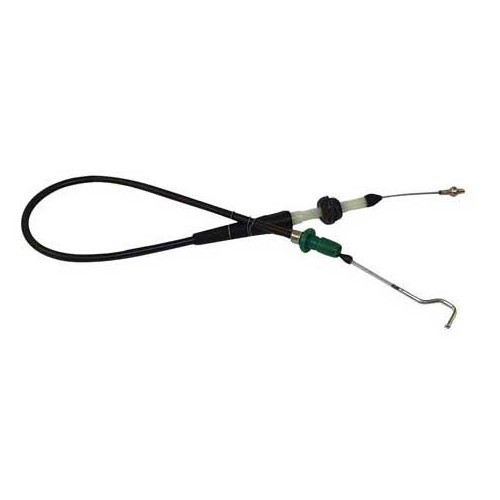

Accelerator cable length 766 mm
Engines with injection K-Jetronic or Digifant.

For VW Golf 2 & Jetta 2 84 ->92 :
- 1.8 8S 105cv (RV Digifant) 08/87 ->10/91
- 1.8 8S 107cv (PF Digifant) 01/87 ->10/91
- 1.8 8S 112cv (EV K-Jetronic) 12/83 ->07/87
- 1.8 8S 112cv (PB Digifant) 01/87 ->10/91
- 1.8 16S 129cv (PL K-Jetronic) 02/86 ->10/91
- 1.8 16S 136cv (KR K-Jetronic) 02/86 ->10/91
- 1.8 G60 160cv (PG Digifant) 08/88 ->07/91

For Corrado from 89 ->95 (up to chassis no. ->50-S-003 000):
- 1.8 16s 136hp (KR) from 04/89 ->07/92
- 1.8 G60 160hp (PG) from 09/88 ->07/93
- 2.0 8s 115hp (2E) from 04/93 ->07/94
- 2.0 16S 136hp (9A) from 08/91 ->07/94

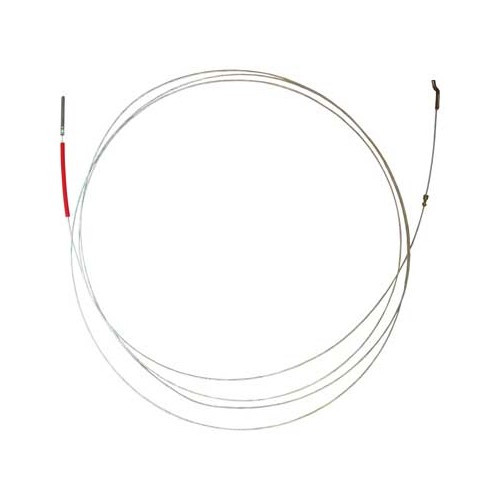

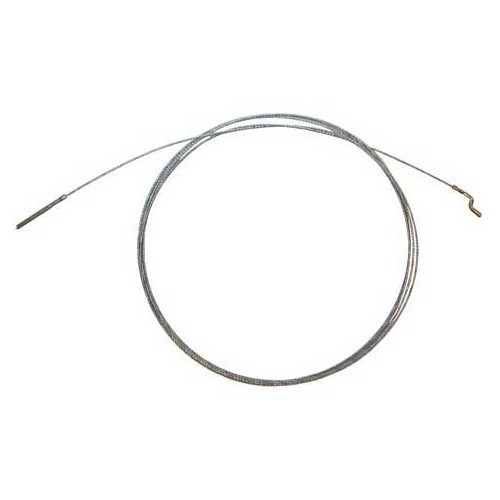

Gas pedal cable
rigid model with eyelet
Length: 2650 mm

For VW Beetle

Suitable for :
- Golf 2 / Jetta 2
- Corrado
- Passat 88 ->97
- Polo 82 ->94 (from chassis n° F-127 904->)

Throttle cable guide tube through the turbine
For VW Cox

Throttle cable guide tube through the turbine
For VW Combi Split Brazil (1957-1975)

The gas pedal cable for a VW Combi Bay Window is an essential part for smooth , precise acceleration control. The cable connects the accelerator pedal to the carburetor, allowing the user to regulate engine speed.
The throttle cable transmits the movement of the accelerator pedal to the carburetor, adjusting the amount of fuel sent to the engine according to the pressure exerted on the pedal.It allows the driver to precisely control vehicle speed by adjusting the amount of air and fuel in the engine, thus accelerating or decelerating the vehicle.A well-maintained throttle cable ensures fast, smooth engine response . A worn or broken cable can lead to a loss of performance or malfunction in vehicle acceleration, which can be dangerous for your safety.
A few symptoms will help you determine whether your cable is starting to tire:
- Slow or irregular response to acceleration.- Accelerator pedal sticking or not returning to its initial position when released.- Engine accelerates on its own or has difficulty maintaining a constant speed.- Accelerator pedal hard to depress, which may indicate a seized or poorly lubricated cable.
To change it, first remove the old throttle cable. This involves disconnecting the cable from the accelerator pedal (Z-clip) and from the carburettor via the linkage.Once the old cable has been removed, insert the new throttle cable into the housing and align it correctly with the guides.Attach the cable to the throttle system and carburettor, making sure it's taut but not too tight. Leave enough slack to allow the cable to move freely.Adjust the cable tension, checking that it is neither too loose nor too tight. Good tension allows the pedal to return easily to its initial position, while still being responsive enough for acceleration.After installing the cable, check that it is working properly by depressing the accelerator pedal and observing the engine's response. Make sure there's no resistance or binding, and that the engine accelerates smoothly and correctly.Take the car for a test drive to make sure the gas pedal is working properly and that the car accelerates smoothly.
If you're on vacation, on a Sunday, in the middle of the night or in a situation where it's uncomfortable to replace it, and the cable is seized up or in poor condition but still functional, you can try lubricating the cable with a specific cable lubricant.If you're able to fix it, don't delay in replacing it!
And last but not least, keep a spare cable in your toolbox! Just like a clutch cable...!
Throttle cableHead: Z-shapedLength: 3668 mmEngine: 1600, 1700, 1800cc
Suitable for VW Combi Bay Window :- 1600cc from 08/1972 to 07/1979 from chassis no. 213 2000 000 to no. 2119 2153 964.- 1700, 1800cc from 08/1972 to 07/1975 from chassis no. 213 2000 000 to no. 215 2300 000.

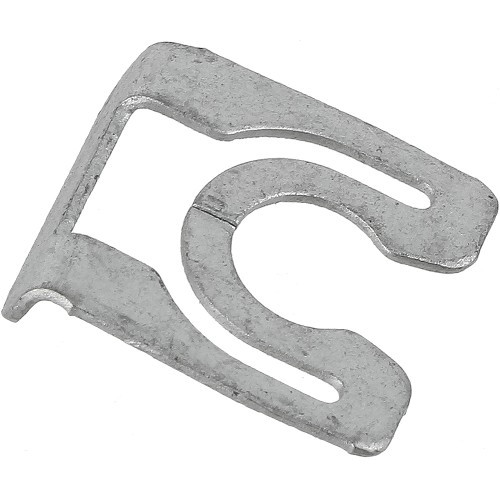

U-clip to enable adjustment and retention of accelerator cable tension on intake side

Accelerator cable length 1146 mm.
For K-Jetronic (DX, JH) or Digifant (2H) injection engines.

For VW 08/82 -> 07/93:
- Golf 1 GTI 1.8 112hp (from chassis no. 17-D-051 627->)
- Golf 1 Cabriolet GLI (from chassis no. 15-D-000 001->)
- Jetta 1 GTI 1.8 112hp (from chassis no. 16-D-051 627->)
- Scirocco GLI 1.8 112 hp (from chassis no. 53-D-000 001->)

Accelerator cable safety clip for Volkswagen Golf 1, Scirocco, Golf 2, 3, Passat B1, B2 and B3 :

Golf 1 and Scirocco :
- All diesel engines
- Gasoline engines with K-Jetronic injection

Golf 2 and Jetta 2 :
- All diesel engines

Golf 3 :
- All diesel engines up to chassis number 1H-PW320 000

Passat B1, B2 and B3 :
- All diesel engines from 1973 to 1993

Also suitable for Volkswagen LT, TransporterT25/T3 and Transporter diesel from 1983 to 2004.
