Gearbox linkage

Can not you pass certain speed because you have problems with your shift lever?
The rings and bushings of your gearbox linkage are surely tired.

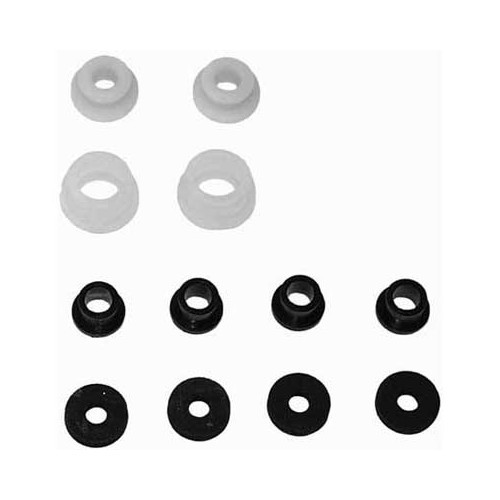

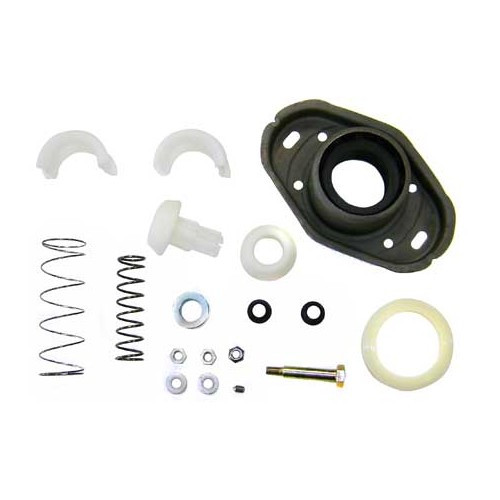

This kit for VW Golf 2 and Jetta 2 includes:
- renovation kit reference: GS00130
- the guide ring at the level of the fixing lever: GS00170
- lever locking tool, necessary for its proper fit: UO70570

It is compatible with engines 1.6 and 1.8 with 4 or 5 gearbox with linkage (control by tie rods)
(Not for cable box controls)

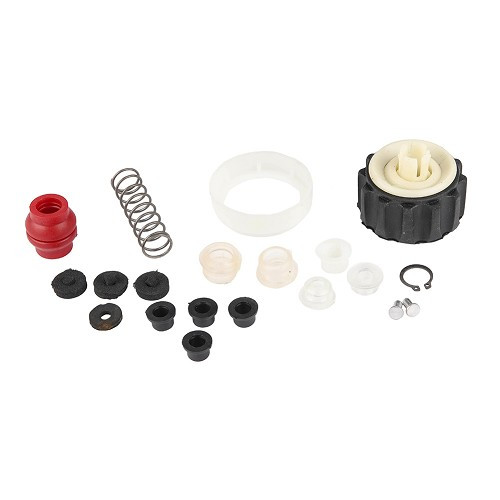

La Volkswagen Golf 1 est une voiture fiable qui a su traverser les décennies.

Elle n'est pourtant pas sans défauts, la commande de boite, appelée tringlerie de boite est l'un d'entre-eux. Les diverses bagues s'usent et partent en morceaux, il est alors difficile de passer les rapports, on a l'impression d'avoir un levier de vitesses qui patauge dans la semoule.

Ce kit comprend l'articulation à rotule ainsi que le ressort du bas de levier de vitesses, la bague de guidage de la tige partant du levier vers la boite et divers joints et coussinets.

De quoi retrouver une tringlerie de boite précise et agréable à l'utilisation de votre VW Golf 1 et Jetta 1

Suitable for:
- Golf 1 saloon, cabriolet and Caddy
- Jetta 1
- Scirocco

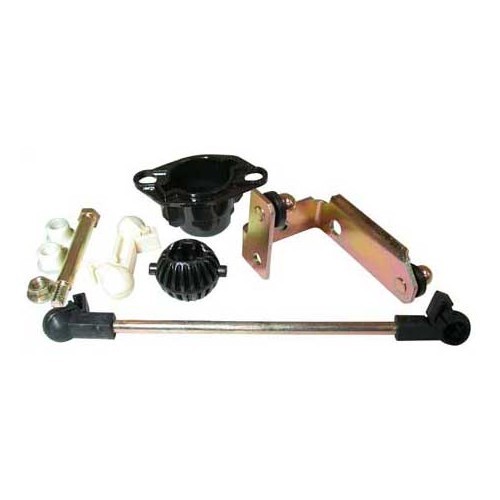

Complete gearshift repair kit for VW Transporter T25 / T3, Bus, Caravelle, Syncro, Joker, Westfalia from 08/1982 to 07/1992.
Indispensable for repairing a linkage with excessive play, often responsible for difficult shifting.
The kit is designed for 14 mm lever models, not 12 mm.
4 or 5-speed gearboxes.

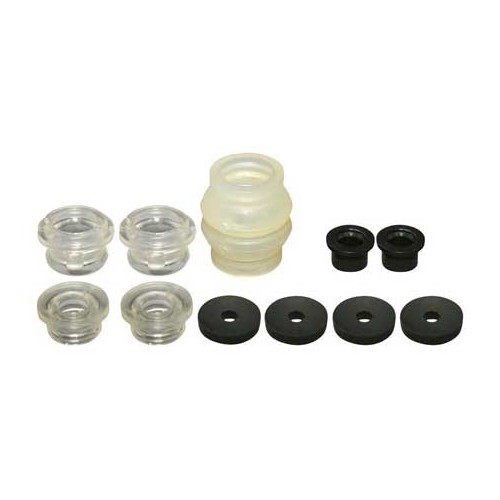

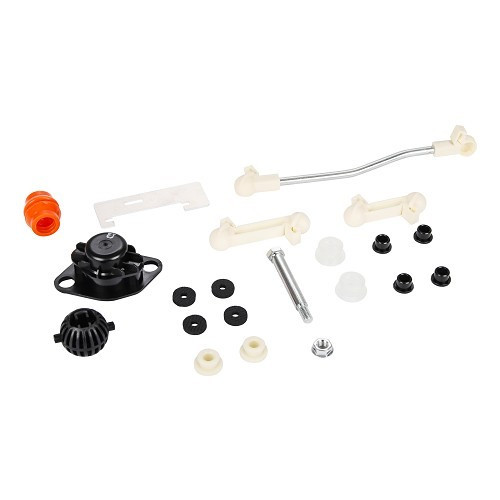

This complete kit can be used to repair the gearbox linkages
Excess play can be harmful togear selection.

For Golf 3 & Vento, 92 ->98:
models with 5-speedmanual gearbox with linkages
- 1.8 petrol
- 1.9 Diesel & turbo-Diesel
- 2.0 petrol GTI 8S
(except: TDI, GTI 16S & VR6 with cable-operatedsystem).

This complete kit can be used to repair the gearbox linkages
Excess play can be harmful to gear selection.

For Golf 4 cabriolet, 99 ->03:
Models with 5-speed manual gearbox with linkages
- 1.6 100hp (AFT, AKS)
- 1.8 75hp (AAM, ANN), 90hp (ADZ, ANP)
- 2.0 115hp (AGG, AKR, ATU, AWG, AWF)

Suitable for:
- Golf 1 saloon, cabriolet and Caddy 1976->
- Scirocco

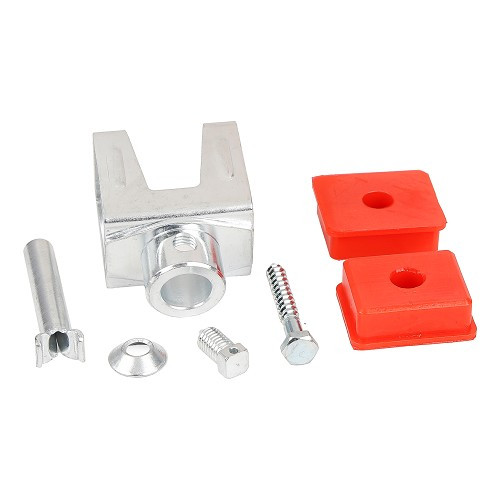

Gear selection linkage control guide.
Reinforced two-part model
This product is sturdier but is notably much easier to assemble than the original model which is very fiddly to install.
This gearbox control also has less play compared to the original model, so gear changes are more precision.
Product developed in Germany and comes with installation instructions in English


For VW:
- Beetle, 12/1947 ->01/1980
+ Mexico, 01/1978 ->2004.
- Karmann-Ghia, 08/1955 ->07/1974.
- Type 3, 04/1961 ->07/1967
Chassis: until no.->317 500 000.
- 181, all models 08/1969 ->12/1979.
- Split Window Camper, 1950 ->10/1965
Chassis: until no.->216 028 111.

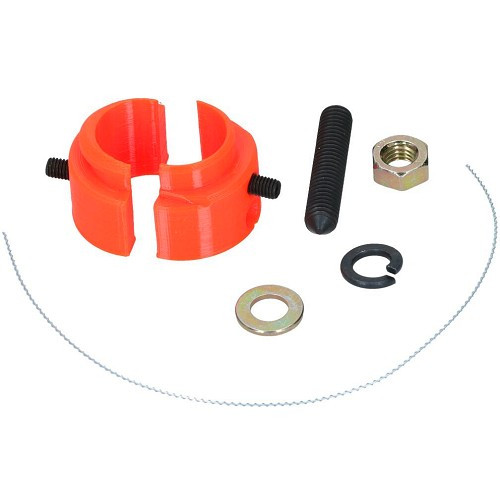

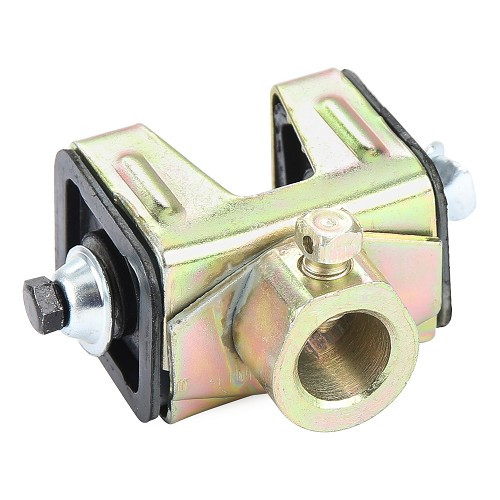

Reinforced urethane gearbox linkage coupling. One of the causes of too much play in the gear lever. Accessed through the inspection flap under the rear bench seat (Beetle). Supplied complete with the tightening screw and pin.

For VW:
- Beetle 12/1963-> from chassis no. 5 911 561->
+ Mexico, Karmann-Gia, 181, Type 3.
- Combi Bay window, 08/1967 ->07/1979.-

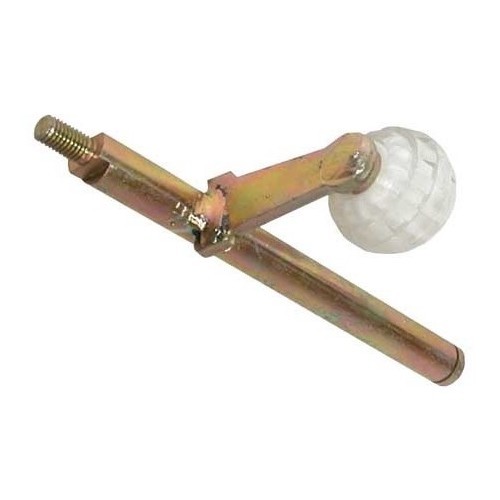

Reversing shaft for gearbox control

Compatible with Seat Ibiza type 6K, only if gearbox control with linkage (not for cable controlled gearboxes):
- 1.3 55hp (2G)
- 1.6 75hp (1F, ABU, AEE, ALM)
- 1.6 100hp (AFT, AKL, APF, AUR)
- 1.8 90hp (ABS, ADZ, ACC)
- 1.8 16s 129hp (ADL)
- 1.9 Diesel 64hp (1Y, AEY)
- 1.9 SDi 68hp (AQM)
- 1.9 Turbo Diesel 75hp (AAZ)
- 2.0 115hp (2E, AGG)

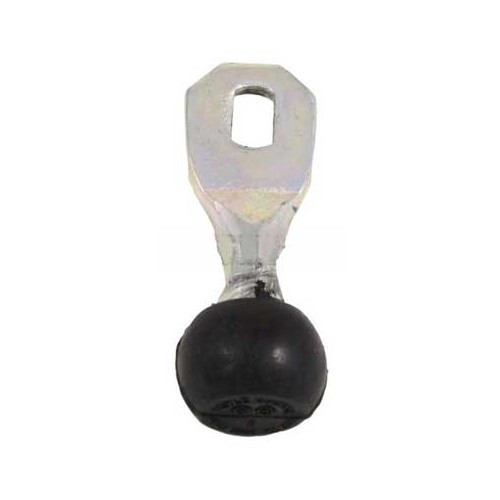

Reverse shaft with ball ongearbox linkages
A worn ball can be harmful to gear selection.

For Golf 3 & Vento, 92 ->98:
models with 5-speed manual gearbox with linkages
- 1.8 petrol
- 1.9 Diesel & turbo-Diesel
- 2.0 petrol GTI 8S
(except: TDI, GTI 16S & VR6 with cable-operated system).

Reverse shaft with ball on gear linkages
A worn ball can be harmful to gear selection.

For Golf 4 cabriolet, 99 ->03:
Models with 5-speed manual gearbox with linkages
- 1.6 100hp (AFT, AKS)
- 1.8 75hp (AAM, ANN), 90hp (ADZ, ANP)
- 2.0 115hp (AGG, AKR, ATU, AWG, AWF)

Genuine VW.

For Golf 1 and Jetta 1 with 5-speed gearbox
Original Volkswagen Classic Parts

Left ball joint of the speed selector fork at the front of the manual gearbox control linkage.
Diameter: 24 mm.

For VW Transporter T4, Multivan,
California, Syncro (4 x 4)
Years: 09/1990 -> 06/2003
All Petrol and Diesel engines

Suitable for 5-speed gearboxes for:
- Golf 1 saloon and cabriolet
- Caddy 1
- Jetta 1
- Scirocco

For 4-speed gearboxes:
- Golf 1 saloon from chassis 17-C-261713->
- Jetta 1 from chassis 16-C-261713->
- Golf 1 cabriolet from chassis 15-C-014100->
- Scirocco from chassis 53-C-036042->

Joints de tringlerie de boîte de vitesses TOPRAN pour Volkswagen Golf 1.

Ce kit comprend les coussinets pour l'arbre d'inversion, pour la vis d'ajustage du palier de fixation côté boite et les bagues-joint de rotules.

For Golf 2 and 3 with pushrod gearshift linkage

(Not G60, Rallye and all versions with cable-operated gearshift)

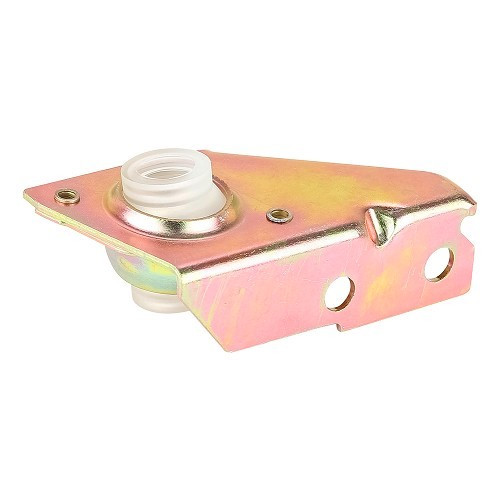

This kit includes the rubber ring that fits into the mounting bearing to guide the shaft coming from the gearshift lever.

Set of bushes for restoring gearbox linkage.Replace key wear parts to eliminate excessive gearshift play.Precise gear shifting contributes to driving comfort, as does steering play, which contributes to the safety of passengers and other road users.
Suitable for Split & Bay Window Combi models from 1950 to 07/1979.

Gear linkage rear support bush, behind the speed control linkage for VOLKSWAGEN Transporter T4 from 01/1996 to 06/2003
Engines: 2.5 TDI
