Control linkage

For 40 or 45 DCOE,by mounting from above.

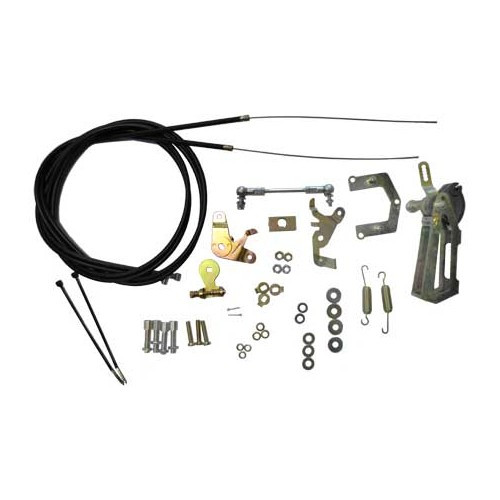

Weber double-cable DCOE accelerator control.
Installation above the carburettor for 2 DCOE.

This set is supplied with two cables and the necessary peripherals for fixing.

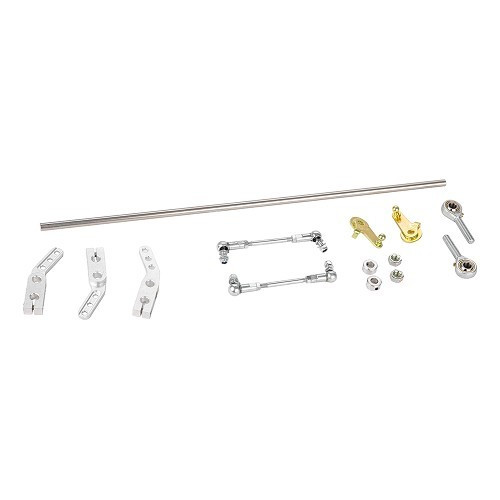

High quality universal control linkage for fitting any configuration of Weber DCOE carburettors on 4 cylinder engines.

The threaded rods for the main bar are 5/16 UNF, please check on your manifold or drill or tap them if not existing.

The kit includes:
- Stainless steel connecting bar

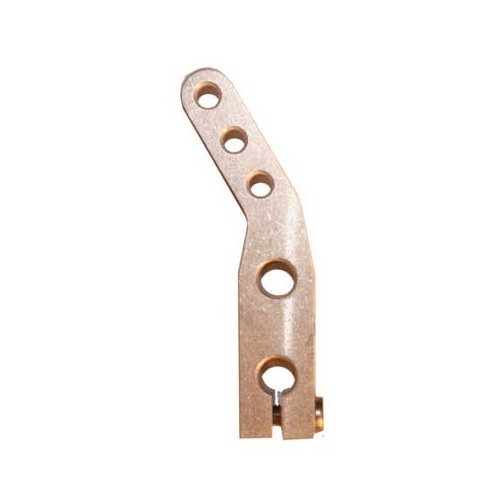

- Coupling levers
- Linkage and lever rod

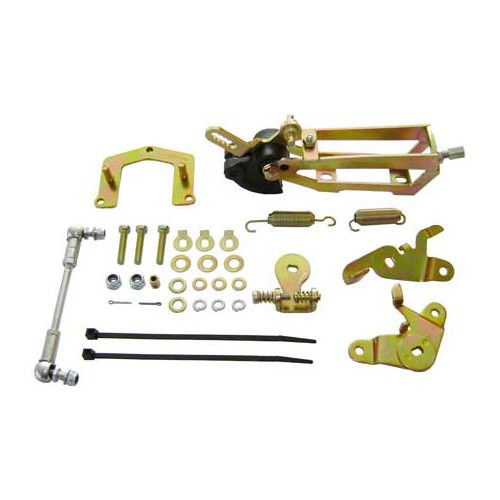

Weber double-cable DCOE accelerator control.
Installation above the carburettor for single or double DCOE.

This set is supplied with two cables (duct: 1500 mm and cable: 1750 mm)
and the necessary peripherals for fixing to the pedal.
For 40 or 45 DCOE, mounted from above.

High-quality throttle linkage for lower mounting of 1 or 2 Weber DCOE or DCO/SP carburetors.

Lower mounting of the control linkage is particularly recommended where space is at a premium.

This kit is supplied without cables, as it is designed for use with original cables.

Enables the synchronisation of 2 DCOE gas controls, side-by-side

Biellette de tringlerie pour Weber 40 DCOE. L'entraxe entre les deux rotules est réglable, elle peut aller de 90 à 106 mm.

Les rotules sont sécurisées par des goupilles pour une sécurité maximale.

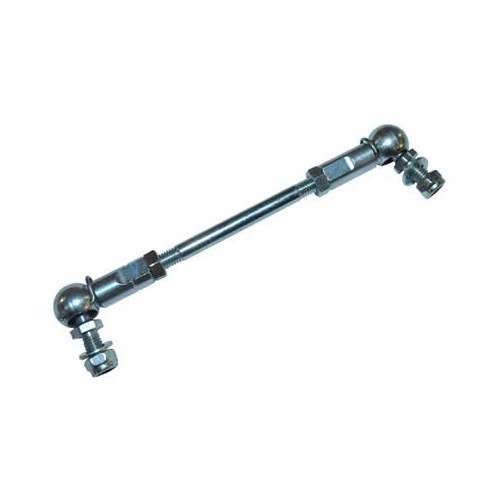

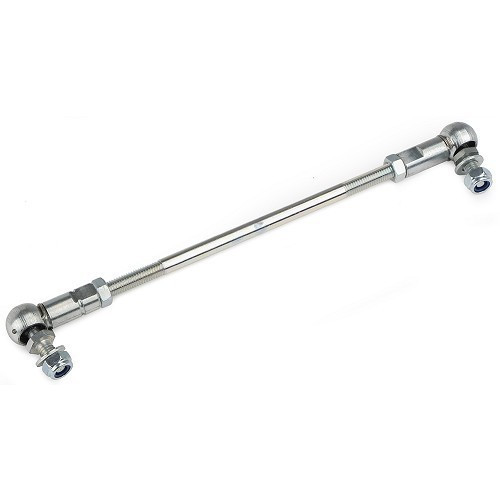

122mm long linkage rod for Weber carburettor. The distance between the two ball joints is adjustable from 143 to 155 mm.

The ball joints are secured with pins.

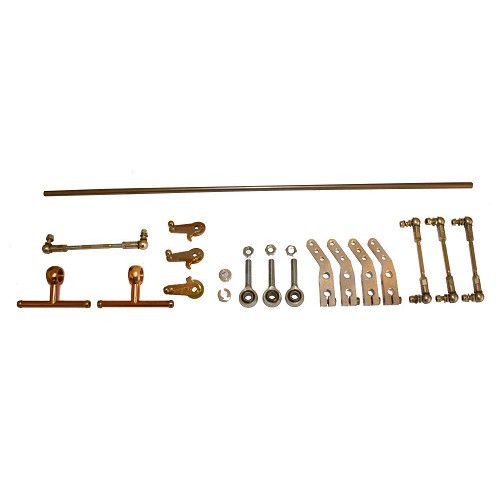

Universal linkage kit for operating 3 Weber DCOE carburettors on 6-cylinder in-line engines.

The 3 threaded rods of the main bar are in 5/16 UNF, to be checked on your manifold or to be drilled/tapped if not existing.

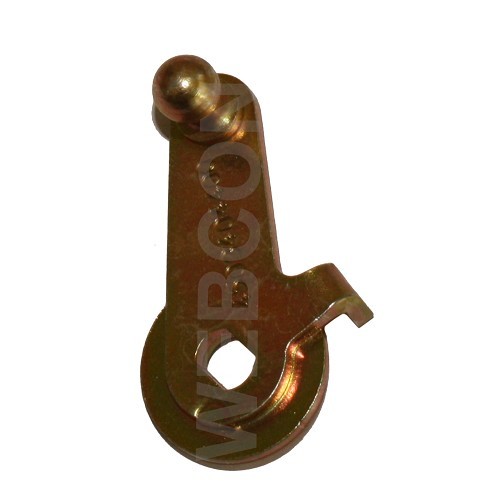

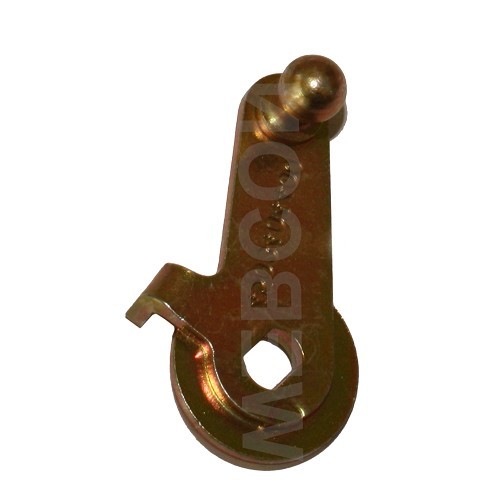

Ball Throttle Lever for Weber DCOE

For use on the right side of the carburetor

This lever contains a ball that allows for the attachment of a rocker rod control
Genuine Weber part

Ball Throttle Lever for Weber DCOE

For use on the left side of the carburetor

This lever contains a ball that allows for the attachment of a rocker rod control
Genuine Weber part

Superior quality aluminium tie-rod.

Designed and manufactured in the UK to very strict requirements.
Supplied with a made from hexagonal stainless steel.

Superior quality aluminium tie-rod.

Designed and manufactured in the UK to very strict requirements.
Supplied with a hexagonal round head screw made from stainless steel.

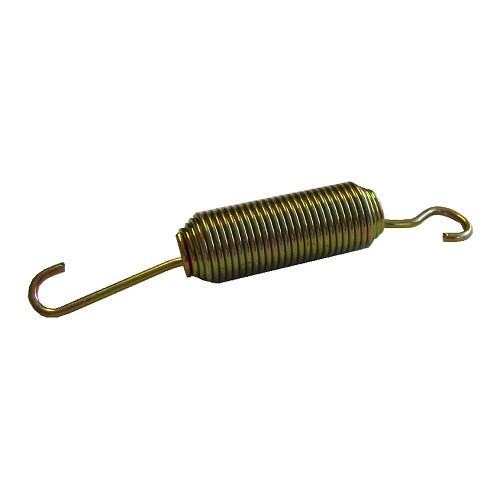

Return spring for Weber DCOE control linkage

For Weber 40 and 45 DCOE linkage

The return spring makes it easier to return the carburettor to its initial position when fitted with lower or upper linkage, single or double cable.
Specially designed with independent coil clips to avoid hard points.

Length at rest: 73mm
The rounded end is positioned on the fixed linkage body, the U-shaped end is positioned on the rotation axis.
Sold individually
New original Weber part

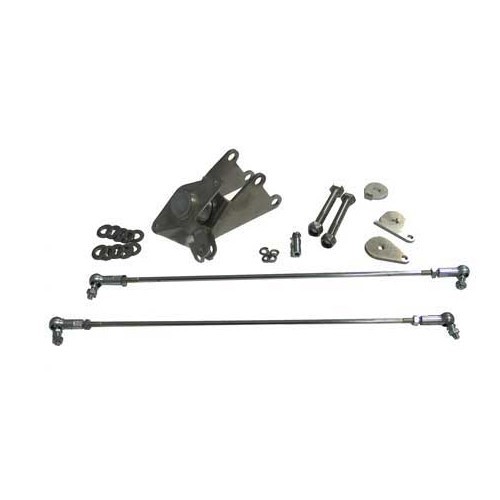

CSP linkage for fitting 2 Weber IDF or Dellorto DRLA carburettors on Type 1 engine with original turbine.
Spindle on bearing, very high-quality CSP manufacturing!

CSP linkage for the mounting of 2 Weber 34 ICT carburettors on a Type 1 engine with original turbine.
Bearing pivot, very high quality CSP manufacturing!

CSP linkage for fitting 2 Weber IDA carburettors on Type 1 engine with original turbine.
Spindle on bearing, very high-quality CSP manufacturing!

CSP linkage for fitting 2 Weber IDA carburettors on Type 4 engine with Porsche fan. Spindle on bearing, very high-quality CSP manufacturing!

CSP linkage for fitting 2 Weber IDF or Dellorto DRLA carburettors on Type 1 engine with original 911 turbine.
Spindle on bearing, very high-quality CSP manufacturing!

CSP linkage for fitting 2 Weber IDF or Dellorto DRLA carburettors on Type 4 engine with Porsche 911 turbine.
Spindle on bearing, very high-quality CSP manufacturing!
