Windshield 28F white 280x280 mm Fiamma

Details about : Windshield 28F white 280x280 mm Fiamma

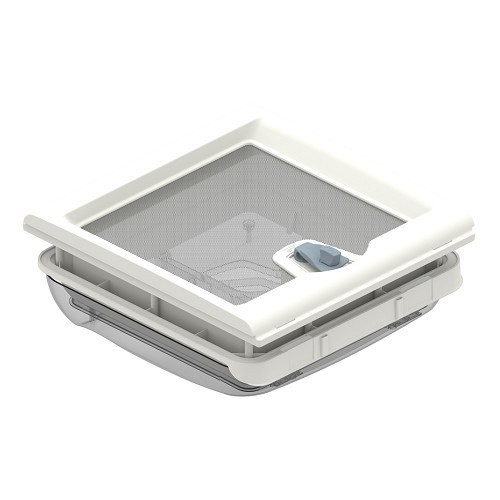

New design for this FIAMMA VENT 28F white 280x280 mm skylight.
Recommended for the small rooms in your motorhome, caravan or van (bathroom, shower, WC, kitchen, etc.), this skylight provides permanent ventilation. With its aerodynamic profile, thanks to its lowered interior frame, its cover reduces exposure to wind and noise, for enhanced comfort. Handy easy-opening system with handwheel. The opening system is designed to let as much light in as possible. Its integrated aluminium mosquito net can be removed for easy cleaning and helps keep you cool.
The installation is performed without drilling, thanks to the "sandwich" system on roof thicknesses between 28 & 60 mm.

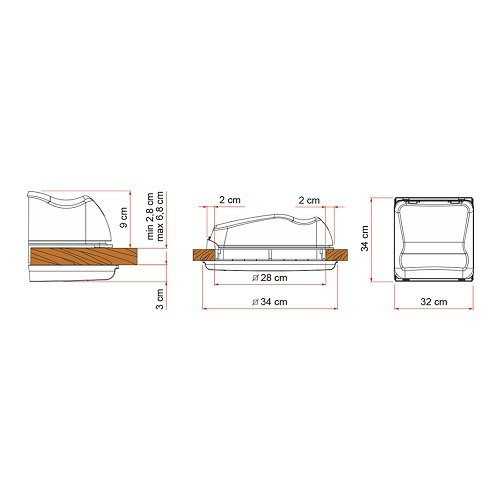

Technical specifications:
Colours: outer frame - white; inner frame - ivory; cover - white.
Cutting size: 280x280 mm.
External dimensions: 32x34 cm.
Internal dimensions: 31x34 cm.
Interior light: 25x25 cm.
Roof thickness (min-max): 2.8-6 cm.
Permanent ventilation: 80 cm².
Weight: 1.8 kg.

Fiamma ref. 07902-02

A version of this skylight with a 12V electric fan is also available (Turbo-Vent 28F kit).

Original reference OEM:

Fiamma 07902-02
