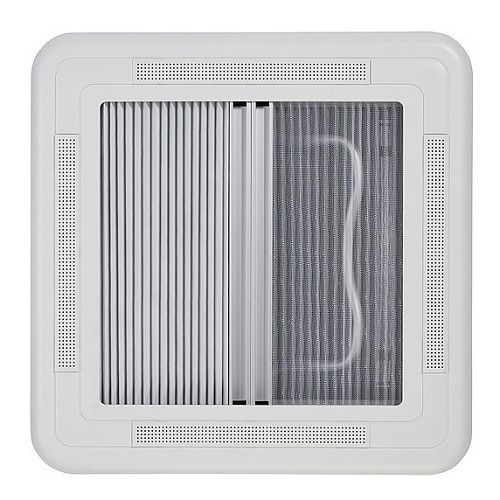

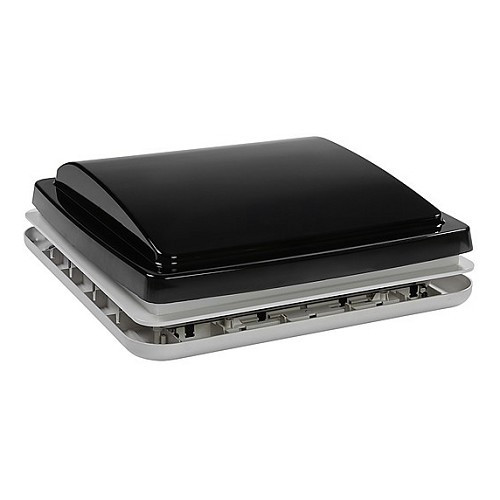

White skylight 40x40 cm QUIPON SKY

Skylight 40x40 cm THULE VENT with fan for motorhomes and caravans

Skylight 40x40 cm THULE VENT with fan.
For motorhomes and caravans.
With permanent ventilation.
Mounted by tightening the inner cover on the outer part.
Opens by means of a lateral compass controlled by a throttle
With insect screen and shutter.
Made of polypropylene with anti-UV treatment.
Voltage: 12 V
Power: 0.17 - 3A.
Mounts on 400 to 400 mm panels.
Overall dimensions: 472 x 459x 78 mm.
To be mounted on roofs with a thicknesses of 25 to 50 mm.
Installation wedges for roof thicknesses between 40 and 60 mm, available as an option.
Colour: white

FIAMMA TURBO VENT 40 skylight, white

FIAMMA TURBO VENT 40 skylight, white.
High-quality, UV-resistant materials and a high-performance ventilation system that refreshes the air in the interior of your motorhome or caravan in a matter of seconds. Equipped with a thermostat that regulates the starting and stopping of the fan depending on the ambient temperature inside the vehicle. Opening and closing by a very strong central compass, offering perfect stability. Practical: the external mosquito net protects against insects and avoids the suction effect. Interior safety grid.
Casing colour: white.
Cutting size: 390 x 390mm.
External height: 85 mm.
Fan dimensions: Ø 300 mm.
Installation on roof thicknesses between 30 & 45.
Air flow rate: max. 35m³/min.
Permanent ventilation: 80 cm².
Power consumption: 0.3 to 3 A.
Voltage: 12 V.
Power: 36 W.
Weight: 4.6 kg.

Fiamma 03623F01-
