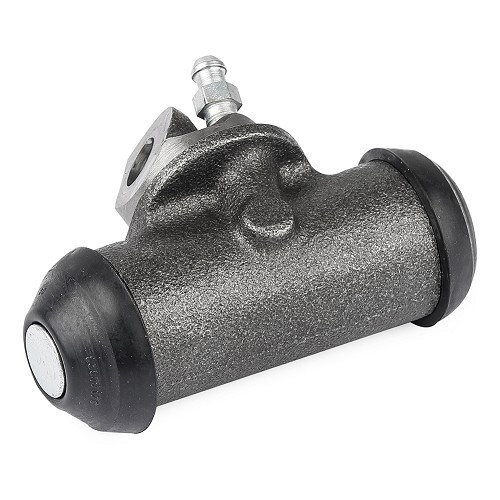

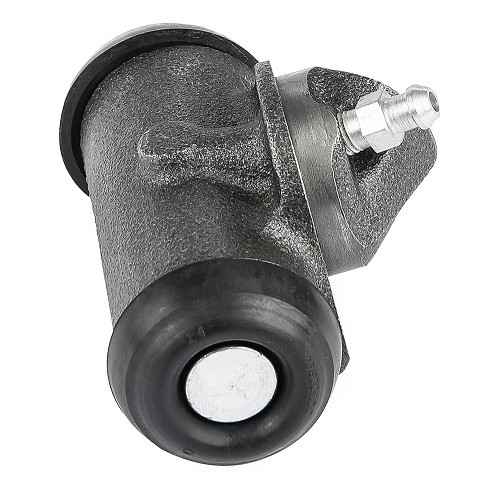

Front left wheel cylinder type BENDIX for Renault 4 (07/1966-07/1982) - 23,8 mm

Details about : Front left wheel cylinder type BENDIX for Renault 4 (07/1966-07/1982) - 23,8 mm

This left front wheel cylinder type BENDIX for Renault 4 (07/1966-07/1982) - 23,8 mm is faithful to the original.

This rleft front brake receiver for R4 is compatible with all models with 200mm front drum brake.

In July 1966 the diameter of the brake drums increases from 180 to 200mm at the front, their width now being 35mm instead of the 30mm which increases the braking surface of the linings from 216 to 288 cm² per drum.

compatible models:

- R4 type R1120 : 07/1966 to 09/1971
- R4 super type R1122 : 07/1966 to 09/1962
- R4 type R1123 : 07/1966 to 05/1986
- R4 Export/L/TL type R1126 : 09/1971 to 07/1982
- R4 GTL type R1128 : 01/1978 to n° 390.2460

- R4 4HP van R2105 : 07/1966 to 09/1971
- R4 4HP van F4 type R2109 : 09/1971 to 07/1982
- R4 4HP glazed van F4 type R2392 : 09/1973 to 07/1982
- R4 5HP van type R2106 : 03/1966 to no 15.201
- R4 Van F4 type R2391 : 09/1972 to 05/1986
- R4 Van 4HP glazed F4 type R2392 : 09/1973 to 07/1982
- R4 Van raised type R2108 : 10/1972 to 07/1975
- R4 Van extended F6 type R2370 : 05/1975 to no 311.008
- R4 F6 Pick up type 3C2370 : 05/1975 to n° 311.008
- R4 Long glass van R2430 : 05/1975 to 07/1978
- R4 F4 type R210B : 09/1981 to n° 480
- R4 F4 station wagon type 239B : 09/1981 to n° 480

Attention!!! Your vehicle may have been modified or received a different factory fitment. Check your brake system for compatibility.

Original reference OEM:

7701026418
