Long metric 1/4 hexsockets, size10.0 mm FACOM

Details about : Long metric 1/4 hexsockets, size10.0 mm FACOM

- OGV® profile: more power and safety, protects the nuts.
- Long sockets for access to wells or long threads.
- Availableas a set on a metallic rack: ref RL.40E (3.2 --> 9 mm) and ref RL.41E (10 --> 14 mm).
- Presentation

Standard: NF ISO 2725-1, NF ISO 1711-1, ISO 2725-1, ISO 1711-1,DIN 3124, ASME B107.5

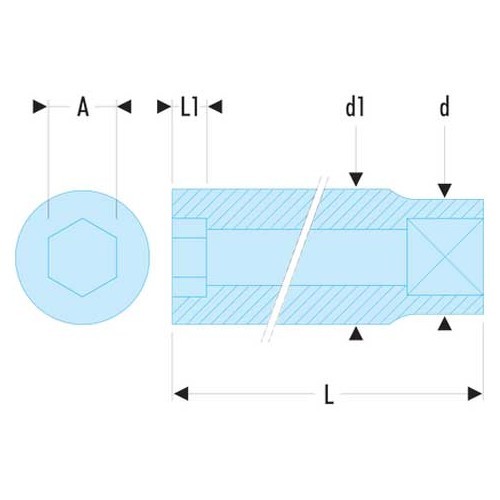

A [mm]: 10.0
d [mm]: 14.3
d1 [mm]: 14.30
L [mm]: 50.5
l [mm]: 50.5
L1 [mm]: 7.9
Hex [mm]: 6
[g]: 41

Original reference OEM:

FACOM R-10LA
