Metric combination spanner, size 10 mm

Details about : Metric combination spanner, size 10 mm

- Standard spanner for all routine applications.
- High mechanical performance combined with reduced size in accordance with aeronautical standards.
- Ring head:
- Ring clearance (dimension E) designed for improved access

Standard: NF ISO 691, NF ISO 7738, NF ISO 3318, NF ISO 1711-1, E74-306, ISO 691, ISO 7738, ISO 3318, ISO 1711-1, DIN ISO 691, DIN 1711-1, DIN 3113, ASME B107.100

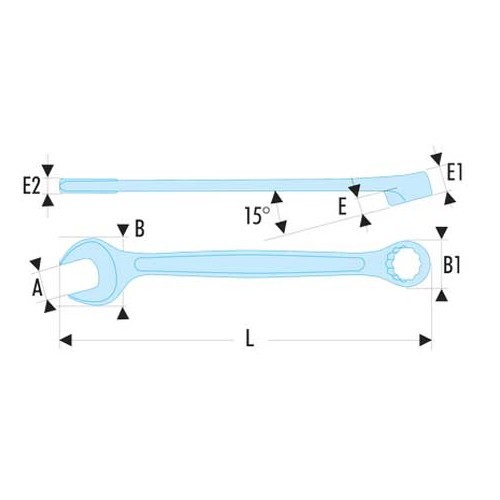

A [mm]: 10
B [mm]: 23.0
B1 [mm]: 15.0
C1 [mm]: 7.6
E [mm]: 4.2
E max. [mm]: 4.2
E1 [mm]: 7.6
E2 [mm]: 5.2
L [mm]: 145
l [mm]: 145
[g]: 40

Original reference OEM:

FACOM 440-10
