Metric combination spanner, size 5 mm FACOM

Details about : Metric combination spanner, size 5 mm FACOM

- Standard spanner for all routine applications.
- High mechanical performance combined withreduced size in accordance with aeronautical standards.
- Ring head:
- Ringclearance (dimension E) designed for improved access

Standard: NF ISO 691,NF ISO 7738, NF ISO 3318, NF ISO 1711-1, E74-306, ISO 691, ISO 7738, ISO 3318, ISO 1711-1, DIN ISO 691, DIN 1711-1, DIN 3113, ASME B107.100

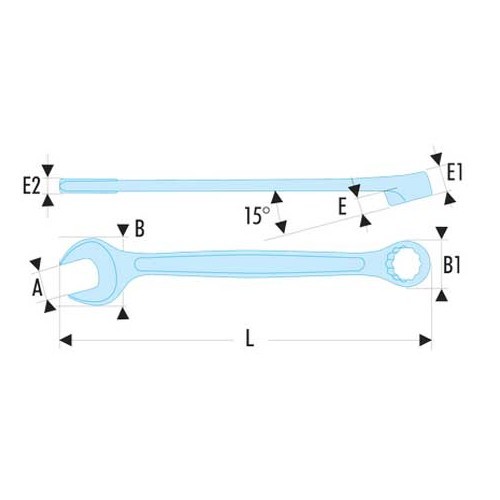

A [mm]: 5
B [mm]: 13.3
B1 [mm]: 9.2
C1 [mm]: 6.0
E [mm]: 3.1
E1 [mm]: 6.0
E2 [mm]: 3.6
L [mm]: 115
l [mm]: 115
[g]: 16

Original reference OEM:

FACOM 440-5H
