Metric combinationspanner, size 7 mm FACOM

Details about : Metric combinationspanner, size 7 mm FACOM

- Standard spanner for all routine applications.
- High mechanical performance combined with reduced size in accordancewithaeronautical standards.
- Ring head:
- Ring clearance (dimensionE) designed for improved access

Standard: NF ISO 691, NF ISO 7738, NF ISO 3318, NF ISO 1711-1, E74-306, ISO 691, ISO 7738, ISO 3318, ISO 1711-1, DIN ISO 691, DIN 1711-1, DIN 3113, ASME B107.100

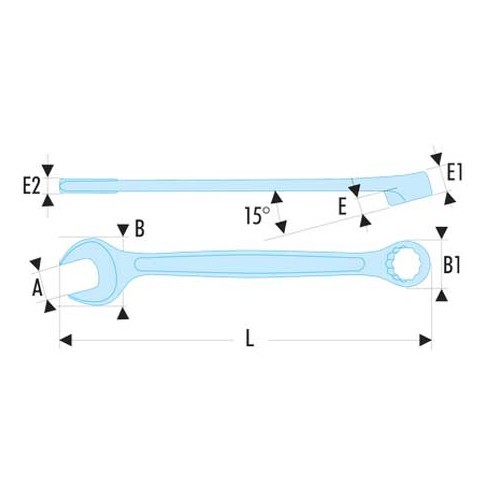

A [mm]: 7
B [mm]: 17.2
B1[mm]: 11.2
C1 [mm]: 6.2
E [mm]: 3.4
E max. [mm]: 3.4
E1 [mm]: 6.2
E2 [mm]: 3.9
L [mm]: 122
l [mm]: 122
[g]: 20

Original reference OEM:

FACOM 440-7
