New turbo for VW LT 2.5 TDi 96 ->06

Details about : New turbo for VW LT 2.5 TDi 96 ->06

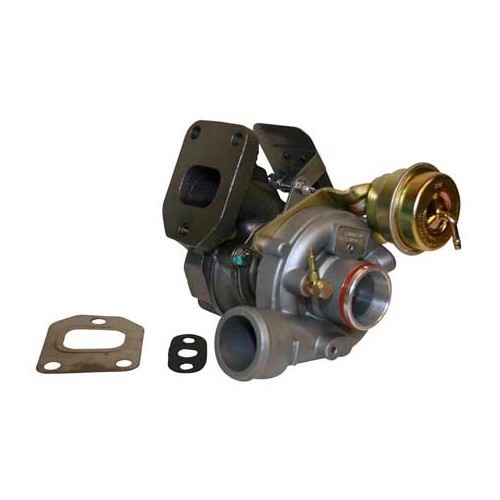

New turbocompressor without part exchange
on original KKK assembly.

For VW Utility LT
Years: 05/1996 ->07/2006
from chassis no. 2D-V-000 001->
Engines:
- 2.5 TDi 83hp (BBE) 04/01 ->07/06
- 2.5 TDi 90hp (APA) 05/99 ->04/01
- 2.5 TDi 95hp (BBF) 04/01 ->07/06
- 2.5 TDi 102hp (AHD) 05/96 ->05/99

The following precautions are to be taken when replacing a Turbo charger:
- The oil circuit must be cleaned to ensure that any residues that may block the circuit are removed
- The oil and oil filter must be replaced
- The oil intake and return pipes must be checked and cleaned
- The air hoses and breather must also be checked
- With the help of a syringe, feed oil into the turbo via the oil inlet, then start the turbine manually.
- Once the new turbo is fitted, start the engine and let it tick over for 10 minutes. Before stopping the
engine, let it tick over for a few seconds (do not accelerate brusquely before turning off)

Original reference OEM:

074 145 701 C

074 145 701 CX

074 145 701 CV
