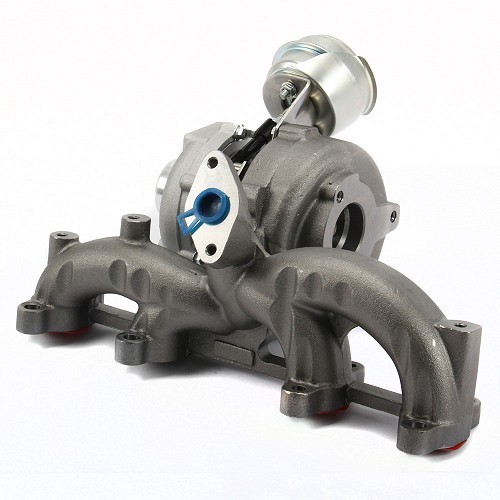

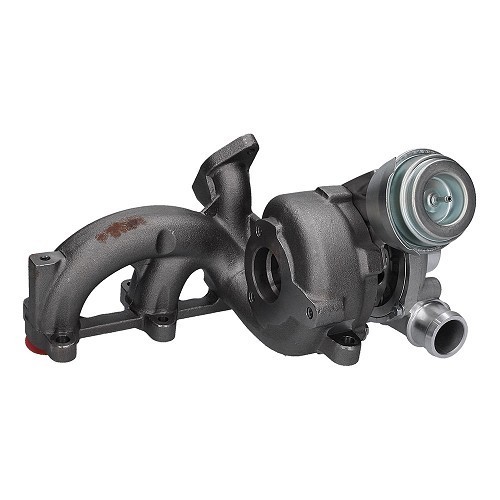

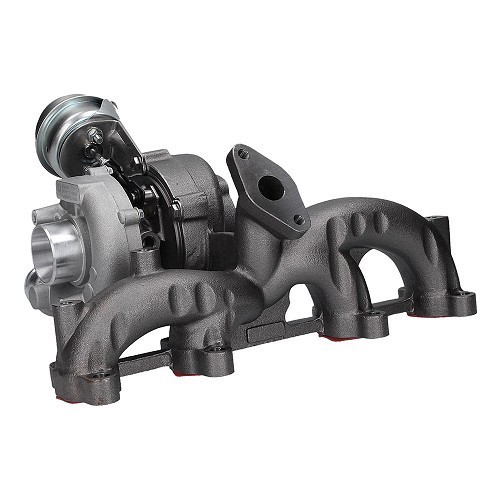

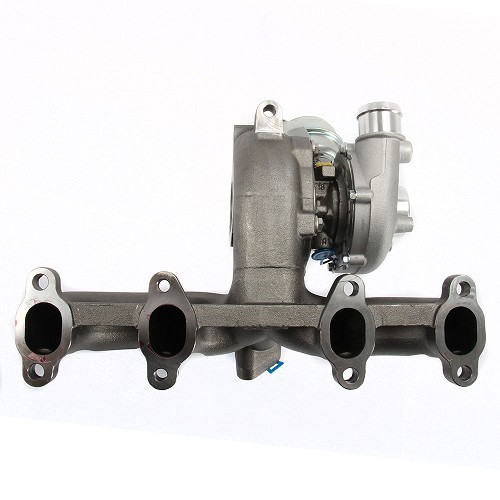

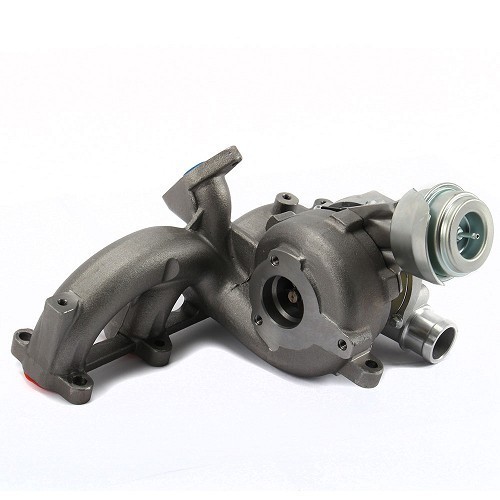

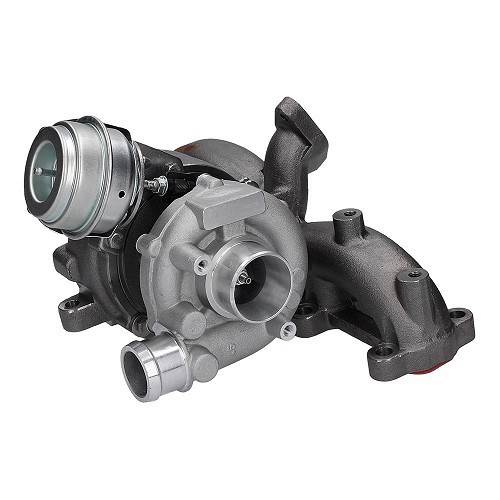

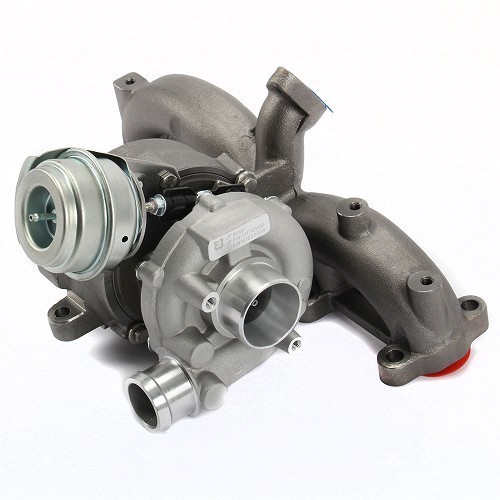

New turbo, no part exchange, for Golf 4 TDi 90/110/115hp

Details about : New turbo, no part exchange, for Golf 4 TDi 90/110/115hp

For Golf 4 and Bora from 98 ->2003:
- 1.9 TDi 90hp (ALH)
- 1.9 TDi 110hp (AHF)
- 1.9 TDi 115hp (AJM, AUY)

The following precautions are to be taken when replacing a Turbo charger:
- The oil circuit must be cleaned to ensure that any residues that may block the circuit are removed
- The oil and oil filter must be replaced
- The oil intake and return pipes must be checked and cleaned
- The air hoses and breather must also be checked
- With the help of a syringe, feed oil into the turbo via the oil inlet, then start the turbine manually.
- Once the new turbo is fitted, start the engine and let it tick over for 10 minutes. Before stopping the
engine, let it tick over for a few seconds (do not accelerate brusquely before turning off)

Original reference OEM:

038 253 019 CX
