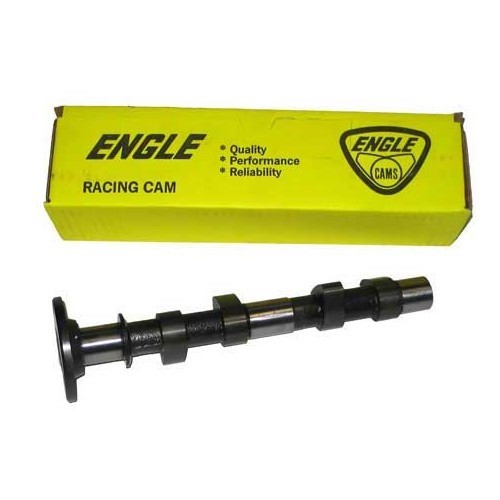

Performance camshaft 274° Engle VZ14 for Type 1 engine

Qty :

Only 1 in stock

Delivery mode

Collect at store Wambrechies (France) : Free

Home delivery : 54.00€

Sent today by MECATECHNIC if ordered before 15h00

Description Product

Customer review

Your questions

Vehicle compatibility

Description Product

Details about : Performance camshaft 274° Engle VZ14 for Type 1 engine

Engle VZ-14 performance camshaft: 274°.
Gap between intake and exhaust cams: 108°.
Cam lift: 10.668 mm / Valve lift: 11.735 mm
Power and torque up to 5500 rpm
Ideal for small-displacement road engines
Order VD20004 pulley additionally.
Fitted with oil pump for 3-pin pulley.

For Beetle, Karmann, Combi, Buggy, 181, Type 3 ...
Type 1 engines: 1200, 1300, 1500, 1600, 1641cc
with original rocker arms ratio 1.1/1

Mount the pulley on its AAC using Loctite threadlocker and tighten to torque (2.5daN). In some cases, it may be necessary to lightly grind the screw heads if they touch the oil pump body during blank assembly.
