Vent 28F glass skylight 280x280 mm

Details about : Vent 28F glass skylight 280x280 mm

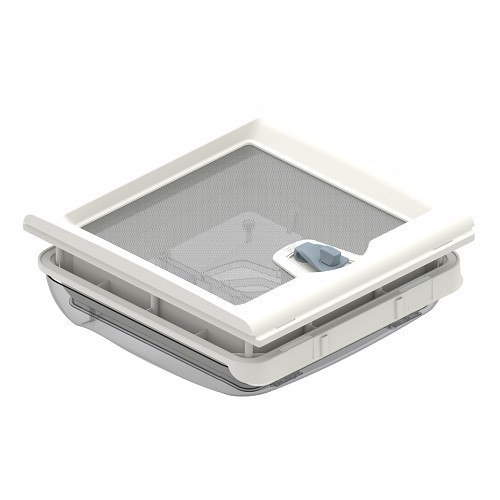

This FIAMMA VENT 28F 280x280 mm glass skylight features a new design.
Recommended for the small rooms in your motorhome, caravan or van (bathroom, shower, WC, kitchen, etc.), this skylight provides permanent ventilation. With its aerodynamic profile, thanks to its lowered interior frame, its cover reduces exposure to wind and noise, for enhanced comfort. Handy easy-opening system with handwheel. The opening system is designed to let as much light in as possible. Its integrated aluminium mosquito net can be removed for easy cleaning and helps keep you cool.
The installation is performed without drilling, thanks to the "sandwich" system on roof thicknesses between 28 & 60 mm.

Technical specifications:
Colours: outer frame - white; inner frame - ivory; cover - glass.

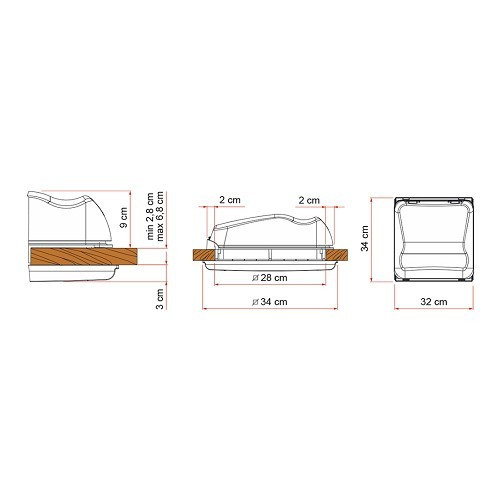

Cutting size: 280x280 mm.
External dimensions: 32x34 cm.
Internal dimensions: 31x34 cm.
Interior light: 25x25 cm.
Roof thickness (min-max): 2.8-6 cm.
Permanent ventilation: 80 cm².
Weight: 1.8 kg.

Fiamma 07902-02D

A version of this skylight with a 12V electric fan is also available (Turbo-Vent 28F kit).

Original reference OEM:

Fiamma 07902-02D

07902-02D
