FEBI Timing gear kit for BMW 3 Series E30 and 5 Series E34 - M40B16 M40B18 M40B18i engines

Details about : FEBI Timing gear kit for BMW 3 Series E30 and 5 Series E34 - M40B16 M40B18 M40B18i engines

Complete FEBI timing belt kit for BMW 3 series E30 and 5 series E34:

E30 Sedan 4 doors :
- 316i 102hp phase 2 from 07/1987 to 12/1990 (engine code M40B16)
- 318i 115hp phase 2 from 09/1987 to 04/1991 (engine code M40B18i)

E30 2-door Coupé :
- 316i 102hp phase 2 from 09/1987 to 04/1991 (engine code M40B16)
- 318i 115hp phase 2 from 09/1987 to 04/1991 (engine code M40B18i)

E30 Touring :
- 316i 102hp from 06/1991 to 02/1994 (engine code M40B16)
- 318i 115hp from 02/1989 to 02/1994 (engine code M40B18)

E30 Cabriolet :
- 318i 115hp from 07/1990 to 04/1993 (engine code M40B18)

E34 Sedan :
- 518i 4cyl 113hp phase 1 from 04/1989 to 08/1991 (engine code M40B18)

WARNING: This kit is not intended for the E34 Touring 518i 113hp engine code M40B18 produced from 11/1992 to 05/1994 (the tensioner is different)!

Belt specifications :
- width: 21 mm
- number of teeth: 110
- profile: rounded teeth

Tensioner dimensions :
- outside diameter 1: 33 mm
- outside diameter 2: 65 mm
- inside diameter: 23 mm
- width 55.4 mm
- number of teeth: 22

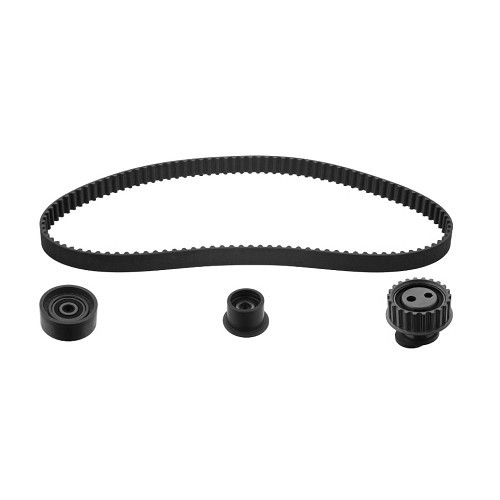

This kit includes :

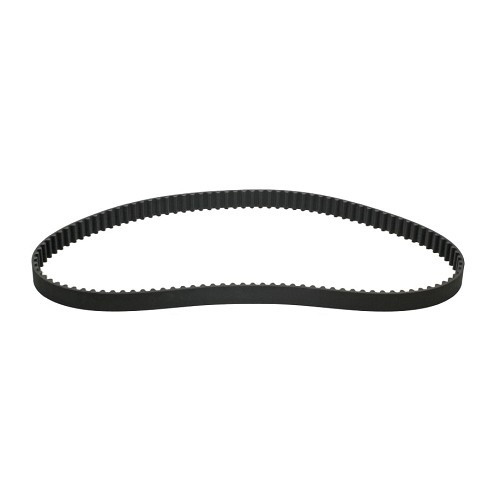

- toothed belt (original BMW part number 11311734608)

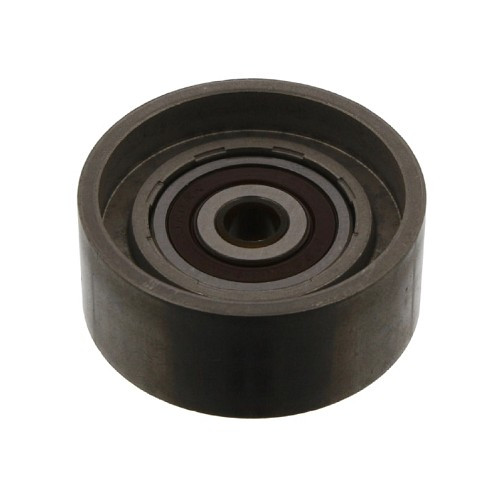

- belt guide roller (original BMW part no. 11311708806)

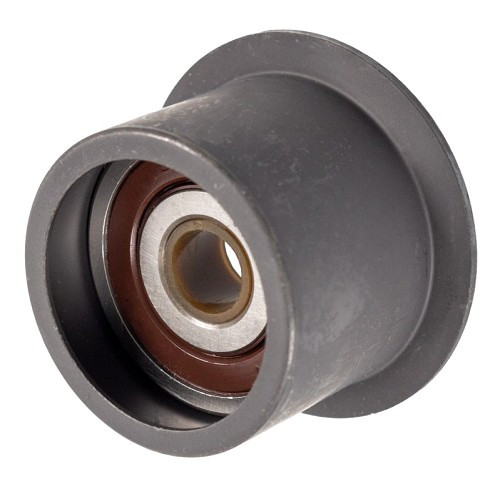

- idler pulley (original BMW part number 11311721264)

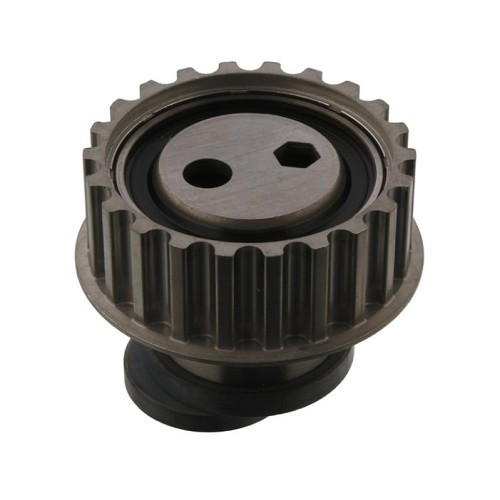

- belt tensioner (original BMW part number 11311721245)

Original reference OEM:

11 31 1 734 608 S1
