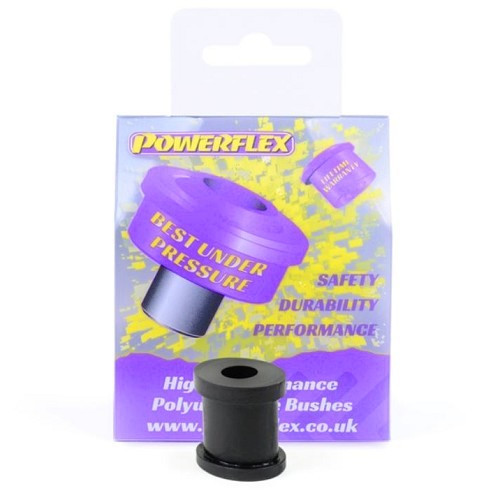

Polyurethane ring for POWERFLEX manual transmission control arm for BMW Z3 E36 (12/1994-06/2002)

Details about : Polyurethane ring for POWERFLEX manual transmission control arm for BMW Z3 E36 (12/1994-06/2002)

Oval ring in polyurethane of control arm of gearbox manual POWERFLEX for BMW Z3 E36 Roadster and Coupé :

Roadster :
- 1.8 4cyl 115hp phase 1 from 12/1994 to 09/1998 (engine code M43B18)
- 1.9 16V 4cyl 140hp phase 1 from 04/1995 to 04/1999 (engine code M44B19)
- 1.8 4cyl 1.9L 118hp phase 2 from 04/1999 to 08/2000 (engine code M43B19TU)
- 1.9i 4cyl 118hp phase 2 from 08/2000 to 06/2002 (engine code M43B19TU)
- 2.0 150hp phase 2 from 07/1998 to 10/2000 (engine code M52B20TU)
- 2.2i 170hp phase 2 from 12/1999 to 06/2002 (engine code M54B22)
- 2.8 192hp phase 1 from 07/1996 to 08/1998 (engine code M52B28)
- 2.8 192hp phase 1 from 09/1998 to 03/1999 (engine code M52B28TU)
- 2.8 193hp phase 2 from 04/1999 to 05/2000 (engine code M52B28TU)
- 3.0i 231hp phase 2 from 09/1999 to 06/2002 (engine code M54B30)M52B28TU
- M 3.2L 321hp phase 1 from 04/1996 to 06/2000 (engine code S50B32)
- M 3.2L 325hp phase 2 from 03/2000 to 05/2002 (engine code S54B32)

Coupé :
- 2.8 192hp phase 1 from 05/1997 to 08/1998 (engine code M52B28)
- 2.8 193hp phase 1 from 09/1998 to 03/1999 (engine code M52B28TU)
- 2.8 193hp phase 2 from 04/1999 to 05/2000 (engine code M52B28TU)
- 3.0i 231hp from 09/1999 to 06/2002 (engine code M54B30)
- M 3.2L 321hp phase 1 from 09/1997 to 07/2000 (engine code S50B32)
- M 3.2L 325hp phase 2 from 03/2000 to 05/2002 (engine code S54B32)

Quantity needed per vehicle: 1

Length: 26 mm
Inner diameter: 10 mm
Shape: oval

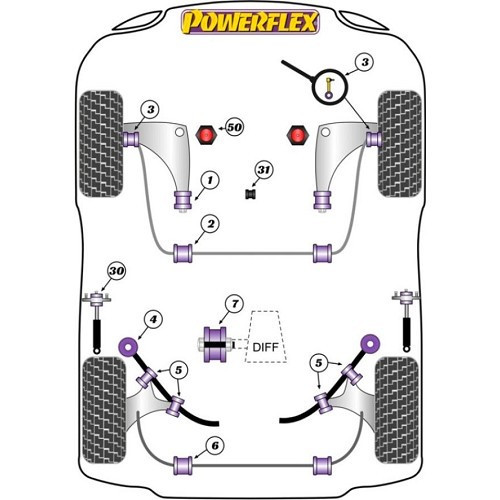

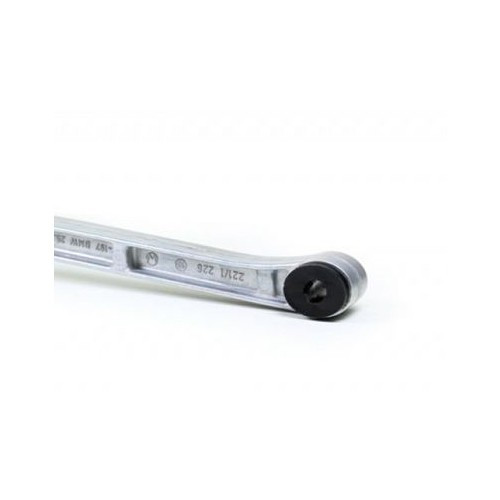

Thisshift arm bearing (#31 on the diagram) will advantageously replace the original rubber part. Shifting will be improved as will the durability of the element due to its robust polyurethane composition.

Original reference OEM:

PFF5-4631

25117507695

25111221822
