Transmission flex disc, 110 mm, for BMW E10 from 01/75 to 07/77

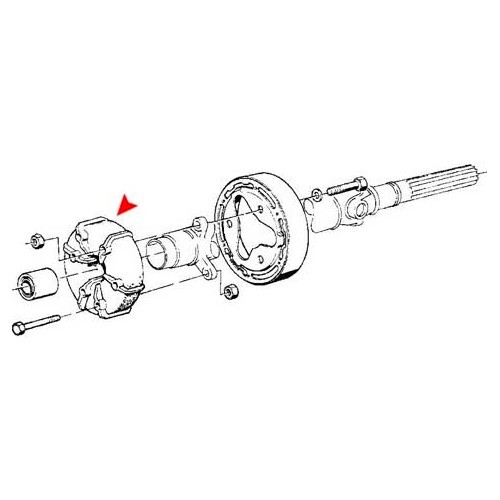

Located at the front of the drive shaft

For Saloon:
- 1502

Check your flex disc, as there are several different fitments...

Qty :

Only 5 in stock

Delivery mode

Collect at store Wambrechies (France) : Free

Home delivery : 39.00€

Sent by MECATECHNIC on: Friday, December 20, 2024

Description Product

Customer review

Your questions

Vehicle compatibility

Description Product

Details about : Transmission flex disc, 110 mm, for BMW E10 from 01/75 to 07/77

Located at the front of the drive shaft

For Saloon:
- 1502

Check your flex disc, as there are several different fitments

Dimensions:
Centre-to-centre distance between mounting points: 78 mm (6 holes)
Outer diameter: 110 mm
Inner diameter: 40 mm
Thickness: 28 mm

Customer review

No commentary about the product

Met Trusted Shops kunnen we direct verbeteren dankzij uw opmerkingen op de MECATECHNIC website

Your questions

Vehicle compatibility

BMW

BMW E10 :

Visit the category Transmission coupling BMW E10

MECATECHNIC recommend you

MEYLE HD 110mm reinforced transmission selector for BMW 02 Series E10 1502 (11/1974-07/1977) - with hardware - BJ81015

Only 4 in stock

84,45 €

ATI

MEYLE HD 110mm reinforced transmission selector for BMW 02 Series E10 1502 (11/1974-07/1977) - with hardware

MEYLE HD range 110mm reinforced transmission selector, located in front of the driveshaft, for BMW 02 E10 series:

- 1502 1.6l 75hp phase 2 from 11/1974 to 07/1977 (engine code M116)

ATTENTION: We advise you to check your flector before ordering, as an alternative 76mm mounting center distance exists!

Screws and bolts included (6 M10X50-10.9 screws and 6 M10 self-locking hex nuts).

Dimensions :
- Mounting centers: 78mm (6 holes)
- Outside diameter: 110mm
- Inside diameter: 40mm
- Thickness: 28mm

This bearing offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.
