Transmission flex disc, 110 mm, for BMW E90/E91/E92/E93

Qty :

Out of stock from our supplier

Notify me

Delivery mode

Collect at store Wambrechies (France) : Free

Home delivery : 0.00€

Description Product

Customer review

Your questions

Vehicle compatibility

Description Product

Details about : Transmission flex disc, 110 mm, for BMW E90/E91/E92/E93

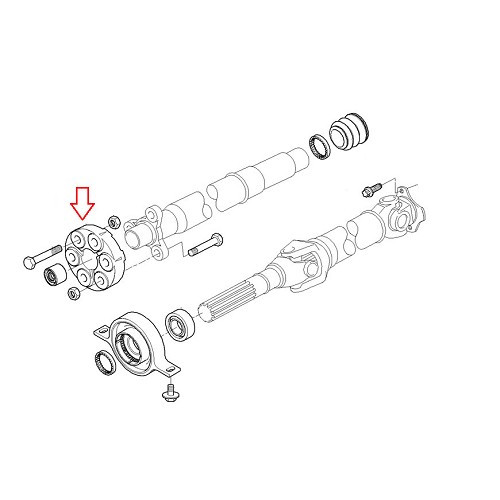

Located between the gearbox outlet and the drive shaft,

For E90 & E91:
- 316 i N45 & N45N (E90 only)
- 316 i N43 E90 (only for E90 with manual transmission)
- 318 i N43, N46 & N46N (manual transmission only)
- 320 i N43, N46 & N46N (manual transmission only)
- 320 si N45 (E90 only)

For E92 & E93:
- 316 i N43 (only for E92 with manual transmission)
- 320 i N43 & N46N (manual transmission only)

For E90 LCI & E91 LCI (manual transmission only):
- 316 i N45N (E90 only)
- 316 i N43
- 318 i N43 & N46N
- 320 i N43 & N46N

For E92 LCI & E93 LCI:
- 316 i N43 (E92 only)
- 318 i N43
- 320 i N43 & N46N (manual transmission only)

Dimensions:
Centre-to-centre distance between mounting points: 78 mm (6 holes)
Outer diameter: 110 mm
Inner diameter: 40 mm
Thickness: 28 mm

Original reference OEM:

26 11 1 225 624

Customer review

No commentary about the product

With Trusted Shops, we can improve directly thanks to your comments posted on the MECATECHNIC website

Your questions

Vehicle compatibility

BMW

BMW E90 E91 E92 E93 :

Visit the category Transmission coupling BMW E90 E91 E92 E93

Other products in the Transmission coupling range

110mm MEYLE HD reinforced transmission selector for BMW 3 Series E36 Sedan Coupé Cabriolet and 5 Series E39 Sedan (07/1994-07/2003) - with hardware - BJ80004

96,05 €

ATI

Only 1 in stock

110mm MEYLE HD reinforced transmission selector for BMW 3 Series E36 Sedan Coupé Cabriolet and 5 Series E39 Sedan (07/1994-07/2003) - with hardware

ref: BJ80004

105 mm flex disc for BMW E12 (premium quality) - BS40032

51,55 €

ATI

5,0

In stock

105 mm flex disc for BMW E12 (premium quality)

ref: BS40032

MEYLE HD 110mm reinforced transmission selector for BMW 3 Series E30 Sedan Touring Coupé and Cabriolet (12/1981-02/1994) - with hardware - BJ81009

66,85 €

ATI

5,0

In stock

MEYLE HD 110mm reinforced transmission selector for BMW 3 Series E30 Sedan Touring Coupé and Cabriolet (12/1981-02/1994) - with hardware

ref: BJ81009

Ridex transmission selector for Bmw 1 Series (03/2003-10/2013) - BS40110

28,90 €

ATI

Only 2 in stock

Ridex transmission selector for Bmw 1 Series (03/2003-10/2013)

ref: BS40110

Front Flector transmission for Seat Leon 1M 4MOTION - GS35151

85,85 €

ATI

Only 2 in stock

Front Flector transmission for Seat Leon 1M 4MOTION

ref: GS35151

MECATECHNIC recommend you

Reinforced transmission flex disc, 110 mm, for BMW E90/E91/E92/E93 - BS40033

In stock

45,45 €

ATI

Reinforced transmission flex disc, 110 mm, for BMW E90/E91/E92/E93

ref: BS40033

MEYLE HD 110mm reinforced transmission selector for BMW 3 Series E90 E90LCI E91 E91LCI E92 E92LCI E93 and E93LCI (02/2004-10/2013) - with hardware - BJ81013

In stock

66,85 €

ATI

MEYLE HD 110mm reinforced transmission selector for BMW 3 Series E90 E90LCI E91 E91LCI E92 E92LCI E93 and E93LCI (02/2004-10/2013) - with hardware

Reinforced 110mm MEYLE HD transmission selector, located between gearbox output and driveshaft , for BMW 3 Series E90, E90LCI Sedan, E91, E91LCI Touring, E92, E92LCI Coupé, E93 and E93LCI Cabriolet with manual gearbox only:

E90 Sedan :
- 318i 4cyl 2.0L 129hp from 08/2004 to 08/2008 (engine code N46B20)
- 320i 4cyl 150hp from 02/2004 to 09/2008 (engine code N46B20)
- 320si 4cyl 173hp from 09/2005 to 08/2006 (engine code N45B20S)

E90LCI Sedan :
- 318i 4cyl 2.0L 143hp from 05/2008 to 10/2011 (engine code N43B20)
- 320i 4cyl 170hp from 05/2008 to 10/2011 (engine code N43B20)

E91 Touring :
- 318i 4cyl 2.0L 129hp from 09/2005 to 08/2008 (engine code N46B20)
- 320i 4cyl 150hp from 03/2004 to 08/2008 (engine code N46B20)

E91LCI Touring :
- 318i 4cyl 2.0L 143hp from 05/2008 to 05/2012 (engine code N43B20)
- 320i 4cyl 170hp from 07/2007 to 05/2012 (engine code N43B20)

E92 Coupé :
- 320i 4cyl 170hp from 09/2006 to 02/2010 (engine code N43B20)

E92LCI Coupé :
- 320i 4cyl 170hp from 11/2008 to 06/2013 (engine code N43B20)

E93 Cabriolet :
- 320i 4cyl 170hp from 09/2005 to 02/2010 (engine code N43B20)

E93LCI Cabriolet :
- 320i 4cyl 170hp from 09/2009 to 10/2013 (engine code N43B20)

ATTENTION: Not suitable for models with automatic gearbox!

Screws and bolts included (6 M10X50-10.9 screws and 6 M10 self-locking hex nuts).

Dimensions:
- Mounting centres: 78mm (6 holes)
- Outside diameter: 110mm
- Inside diameter: 40mm
- Thickness: 28mm

This bearing offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

ref: BJ81013
