Transmission flex disc, 140 mm, for BMW E90/E91/E92/E93 LCI

Details about : Transmission flex disc, 140 mm, for BMW E90/E91/E92/E93 LCI

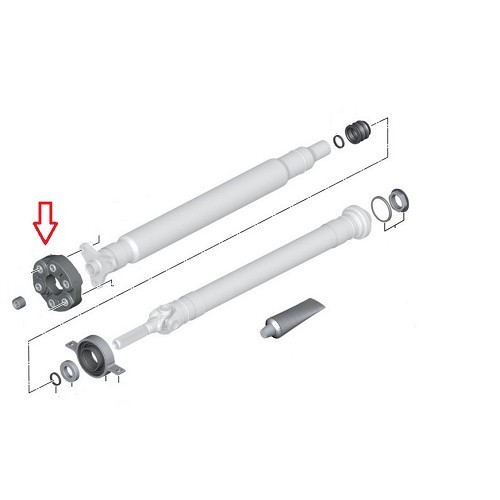

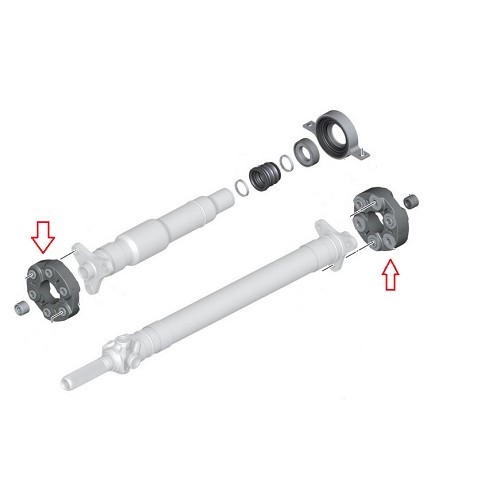

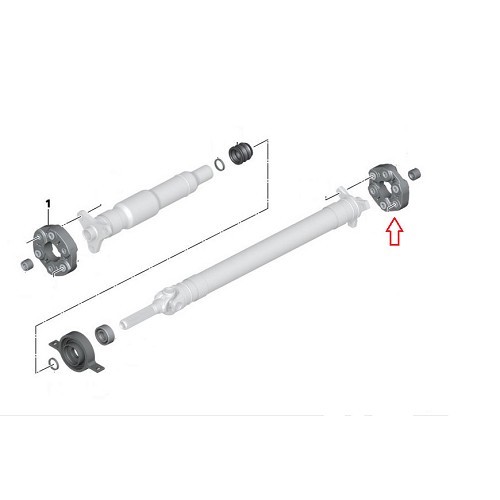

Located between the gearbox outlet and the driveshaft for those in the 'front' position, or between the drive shaft and the rear drive axle for those in the 'rear' position
Some models with a double flex disc have the same at the front and rear

For E90 LCI & E91 LCI:
- 320 d N47 & N47N with manual transmission (front + rear position)
- 325 d M57N2 with automatic transmission (front + rear position)
- 325 d N57 with automatic transmission from 10/10-> (front position)
- 330 d N57 with automatic transmission from 10/10-> (front position)
- 330 xd N57 with automatic transmission from 09/07-> (rear position)
- 335 d M57N2 (front position)
- 335 i N54 (front position)
- 335 i N55 with manual transmission (front position)
- 335 i N55 with automatic transmission from 03/08-> (front position)

For E92 LCI & E93 LCI:
- 320 d N47N with manual transmission (front + rear position)
- 325 d N57 with automatic transmission from 10/10-> (front position)
- 330 d N57 with automatic transmission from 10/10-> (front position)
- 330 xd N57 E92 with automatic transmission from 09/07-> (rear position)
- 335 d M57N2 E92 only (front positions)
- 335 i N55 (front position)

Dimensions:
Centre-to-centre distance between mounting points: 105 mm (6 holes)
Outer diameter: 140 mm
Inner diameter: 54 mm
Thickness: 41 mm

Original reference OEM:

26 11 7 610 061
