Transmission flex disc, 140 mm, for BMW E90/E91/E92/E93

Details about : Transmission flex disc, 140 mm, for BMW E90/E91/E92/E93

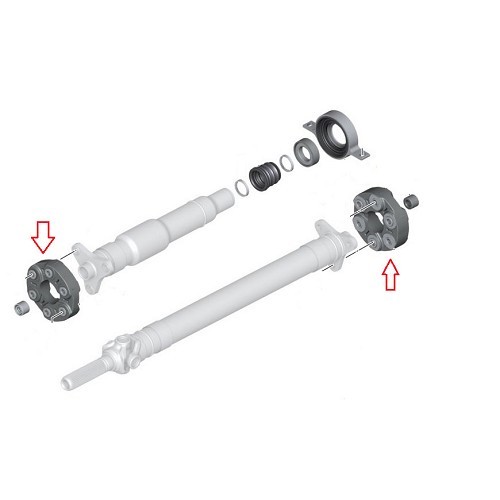

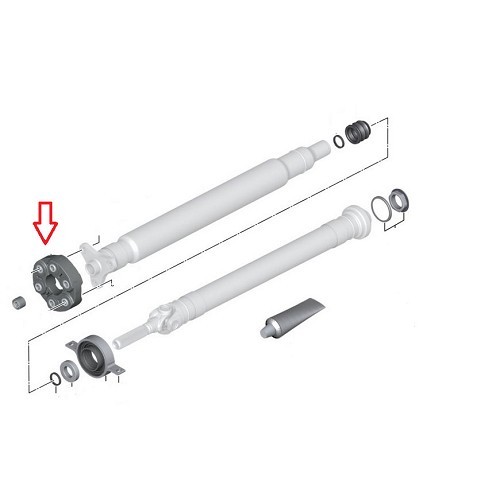

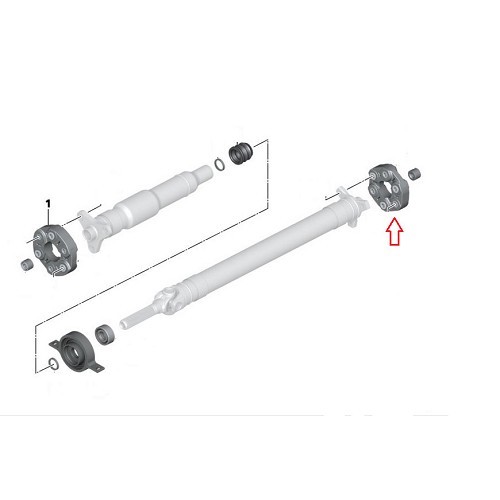

Located between the gearbox outlet and the driveshaft for those in the 'front' position, or between the drive shaft and the rear drive axle for those in the 'rear' position
Some models with a double flex disc have the same at the front and rear

For E90, E91 & E92:
- 320 d N47 with manual transmission (front + rear position)
- 325 d M57N2 with automatic transmission (front + rear position)
- 330 xd M57N2 from 09/07 with automatic transmission (rear position)
- 335 d M57N2 (front position)
- 335 i N54 (front position)

For E93:
- 320 d N47 with manual transmission (front + rear position)
- 325 d M57N2 with automatic transmission (front + rear position)
- 335 i N54 (front position)

Dimensions:
Centre-to-centre distance between mounting points: 105 mm (6 holes)
Outer diameter: 140 mm
Inner diameter: 54 mm
Thickness: 41 mm

Original reference OEM:

26 11 7 610 061
