Engine Alpine A110

This electronic vacuum ignition for Renault 16 and Alpine 1600 (09/1968- 12/1979) is specific to vehicles equipped with Renault Cléon Alu type 807 and 843 engines.
This 123 igniter for R16 is a vacuum advance igniter. It is equipped with a distributor head with straight outlets. It has 16 different ignition curves, R234D59, R243D59, R243D60, R244D61, R245D60, R266D59, R273D60 and R267, which you can select using a thumbwheel according to your vehicle's engine type.
Compatible models :- Renault 16 TL R1152 09/1970 to 08/1974 Cléon-alu type 807 - 1565cm3 67hp (A2L)- Renault 16 TL R1152 09/1974 to 08/1975 Cléon-alu type 807 - 1565cm3 65hp (A2L)- Renault 16 TL R1157 09/1975 to 12/1978 Cléon-alu type 807 - 1565cm3 55hp (A2L)- Renault 16 TX R1156 09/1973 to 12/1979 Cléon-alu type 843 - 1647cm3 93hp (A2M)
- Alpine Berlinette A110 1600 - type 1600 VA 09/1968 to 09/1969 Cléon-alu type 807-24 - 1565cm3 92hp- Alpine Berlinette A110 1600 - type 1600 VB 09/1969 to 09/1970 Cléon-alu type 807-24 - 1565cm3 102hp- Alpine Berlinette A110 1600S - type 1600 VB 10/1969 to 04/1973 Cléon-alu type 807-25 - 1565cm3 138hp- Alpine Berlinette A110 1600SX - Type 1600 VH 10/1975 to 07/1977 Cléon-alu type 843-30 - 1647cm3 95hp
- Alpine A310 1600 VG 08/1975 à 07/1976 Cléon-alu type 843 - 1647cm3 95hp
We recommend using a coil with an impedance greater than 1 Ohm.

This 123 Ignition electronic igniter with vacuum for Alpine A110 (01/1963-12/1976) - Cléon is specially designed for Alpine A110 equipped with Cléon-Fonte engine.

Theelectronic igniter for Alpine A110 features a vacuum capsule and a distributor head with straight outlets. It features 16 different ignition curves, so you can choose your curve for your Renault using a thumbwheel. for engine types 688 and 810.

This igniter is compatible with the following models:
- Berlinette A110 1100 V70 - type 1100VA (01/1963-08/1969)
- Berlinette A110 1100 75 - type 1100VA (28/02/1968) - Chassis n°3950
- Berlinette A110 V85/1300 - type 1300 VC (10/1969-12/1976)

123 Ignition electronic igniter specially designed for Renault 4, Renault 5 and Alpine A110 equipped with the Cléon-Fonte engine.

The igniter is fitted with a vacuum capsule and a distributor head with straight outlets. It has 16 different ignition curves, so you can choose your curve for your Renault using a thumbwheel.

This igniter is compatible with the following models:

- Renault R4 C1C 956cm3 engine
- Renault 4L engine 688-11 1108cm3
- Renault 5 engine 689-10 956cm3
- Renault 5 engine 688-13 1108cm3
- Renault 5 engine 810 1289cm3
- Renault 6 engine 688-10 1108cm3
- Renault 6 engine 810-88 1289cm3
- Renault 8 and 10 engine 688 / 689 956cm3 and 1108cm3
- Alpine A110 engines 688 and 810

This Ducellier type ignition distributor for Alpine A110 (01/1963-12/1976) is a quality reproduction.

This Ducellier type ignition distributor for Alpine A110 with Cléon engine is an adaptable part. It is compatible with all Cléon 956,1108 and 1289 engines type 688, 689, and 810.

This igniter is compatible with the following models:
- A110 Berlinetta - type 956 (01/1963-11/1963)
- A110 GT4 Coupé - Type 956 (03/1963-01/1964)
- Berlinette A110 - type 1100 (03/1963-01/1964)
- Berlinette A110 1100 V70 - type 1100VA (01/1963-08/1969)
- Berlinette A110 1100 75 - type 1100VA (28/02/1968) - Chassis n°3950
- Berlinette A110 1100 V100 - type 1100 VB (11/1964-10/1967)
- A110 GT4 Coupé - Type 1100 L VA (10/1963-1969)
- Berlinette A110 V85/1300 - type 1300 VC (10/1969-12/1976)

This NGK Alpine A110 (09/1963-09/1976) spark plug is of excellent quality.

Sold individually, this short-base spark plug for Alpine A110 Berlinette is compatible with all models with Cléon Fonte engines. Please check the exact compatibility with your model before ordering.

Compatible models:

- Berlinette A110 - type 1100 (03/1963-01/1964)
- Berlinette A110 1100 V70 - type 1100VA (01/1963-08/1969)
- Berlinette A110 1100 75 - type 1100VA (28/02/1968) - Chassis n°3950
- Berlinette A110 1100 V100 - type 1100 VB (11/1964-10/1967)
- A110 GT4 Coupé - Type 1100 L VA (10/1963-1969)
- Berlinette A110 V85/1300 - type 1300 VC (10/1969-12/1976)

This piston liner kit for Alpine A110 Berlinette (01/1963-08/1968) - 1108cc is true to the original.

This piston sleeve displacement kit for Alpine A110 1100 is a quality reproduction. It is compatible with berlinette and coupé GT4 models with type 1100 VA type 688 engines and includes Liner, pisytons, connecting rod pins and rings.

Compatible models:
- Berlinette A110 1100 V70 - type 1100VA (01/1963-08/1969)
- Berlinette A110 1100 75 - type 1100VA (28/02/1968) - Chassis n°3950
- Coupé A110 GT4 - Type 1100 L VA (10/1963-1969)

This CHAMPION - L87YC spark plug for Alpine A110 V85 (10/1969-12/1976) - 1289cc offers top-quality ignition.

Featuring a copper center electrode, this 14mm short-base spark plug for Alpine V85 offers enhanced performance for all models equipped with 1289cc type 810 engines.

Compatible models:

- Berlinette A110 V85/1300 - type 1300 VC (10/1969-12/1976)

This Eyquem C42SA12 spark plug for Alpine A110 1100cc (01/1963-08/1969 ) is specific to berlinettes with 1100 engines.

The Eyquem C42SA12 spark plug for Alpine A110 1100 is an original fitment.
- Without resistor
- Heat rating: 42
- Thread length: 12.7mm
- Cap seat: Flat
- Insulator spout : Sprayed
- Tightening torque: 25Nm
- Gap: 0.75mm
- Thread: M14x1.25
- Hexagon: 21mm

This timing chain for Alpine A110 berlinette (09/1968-07/1977) - 72 links is a quality reproduction.

This 72 double link timing chain for Alpine A110 1600cc is compatible with all 1600cc engine models.
engine type 697-04, 807-24/25, 844-30/32, 844-30, 843-30

Compatible models:
- Berlinette A110 1600 - type 1600 (09/1968-?/1969)
- Berlinette A110 1600 - type 1600 VA (1969)
- Berlinette A110 1600 - type 1600 VB (1969-1970)
- Berlinette A110 1600S - type 1600 VA (1969)
- Berlinette A110 1600S - type 1600 VB (10/1969-04/1973)
- Berlinette A110 1600S - type 1600 VC (01/1973-04/1973)
- Berlinette A110 1600SC - Type 1600 VD (04/1973-09/1975)
- Berlinette A110 1600SI - Type 1600 VD (04/1973-08/1975)
- Berlinette A110 1600SX - Type 1600 VH (1975-07/1977)
- Berlinette A110 1800 - type 1600VD (12/11/1972) - Chassis n° 20001

This piston liner kit for Alpine A110 Berlinette V85 (09/1969-09/1976) - 1289cc is true to the original.

This piston liner kit for Alpine A110 V85 berlinette is a quality reproduction. Intended for Alpine 1300 V85 type 13000vc with 810 engine, it includes liners, pistons, connecting rod pins and segmentation.

Compatible models:

- Berlinette A110 V85/1300 - type 1300 VC (10/1969-12/1976)

This ignition wire set for Alpine A110 Berlinette (09/1968-07/1977) - 1600cc is a quality reproduction.

These spark plug wires for Alpine A110 Belinette 1600cc are specific to models equipped with engine types 697-04, 807-24/25, 844-30/32, 844-30, 843-30.

it consists of the 4 spark plug wires and the cable connecting the ignition to the coil.

Compatible models:
- Berlinette A110 1600 - type 1600 (09/1968-?/1969)
- Berlinette A110 1600 - type 1600 VA (1969)
- Berlinette A110 1600 - type 1600 VB (1969-1970)
- Berlinette A110 1600S - type 1600 VA (1969)
- Berlinette A110 1600S - type 1600 VB (10/1969-04/1973)
- Berlinette A110 1600S - type 1600 VC (01/1973-04/1973)
- Berlinette A110 1600SC - Type 1600 VD (04/1973-09/1975)
- Berlinette A110 1600SI - Type 1600 VD (04/1973-08/1975)
- Berlinette A110 1600SX - Type 1600 VH (1975-07/1977)
- Berlinette A110 1800 - type 1600VD (12/11/1972) - Chassis n° 20001

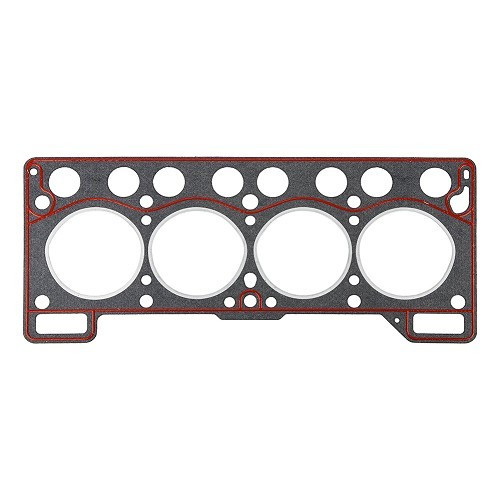

This cylinder head gasket for Alpine A110 berlinette - 1100 VA (01/1963-1969 ) is true to original.

This A110 VA berlinette head gasket is of excellent quality. It is compatible with models 688, 688-03.

Compatible models:
- Berlinette A110 - type 1100 (03/1963-01/1964)
- Berlinette A110 1100 V70 - type 1100VA (01/1963-08/1969)
- Berlinette A110 1100 75 - type 1100VA (28/02/1968) - Chassis n°3950
- A110 GT4 Coupé - Type 1100 L VA (10/1963-1969)

This cylinder head gasket for Alpine A110 Berlinette 1300S (10/1967-09/1970) - type 804 - 1.45mm is true to original.

This cylinder head gasket for Alpine A110 1300VB is specific to models equipped with the 1296cc type 804 engine from the Renault 8 .

Compatible models:

- Berlinette A110 1300 S - type 1300 VB (10/1967-09/1970)
- Coupé A110 GT4 - Type 1300 LVA (01/1968-1970)

This cylinder head gasket for Alpine A110 Berlinette 1300S (10/1967-09/1970) - type 804 - 1.60mm is in repair condition.

This cylinder head gasket for Alpine A110 1300VB is specific to models equipped with the 1296cc type 804 engine from the Renault 8. Its slightly greater thickness compensates for 0.15 mm of grinding.

Compatible models:

- Berlinette A110 1300 S - type 1300 VB (10/1967-09/1970)
- Coupé A110 GT4 - Type 1300 LVA (01/1968-1970)

This cylinder head gasket for Alpine A110 Berlinette 1300S (10/1967-09/1970) - type 804 - 1.75mm is in repair condition.

This cylinder head gasket for Alpine A110 1300VB is specific to models equipped with the 1296cc type 804 engine from the Renault 8. Its superior thickness compensates for a 0.30 mm grinding.

Compatible models:

- Berlinette A110 1300 S - type 1300 VB (10/1967-09/1970)
- Coupé A110 GT4 - Type 1300 LVA (01/1968-1970)

This cylinder head gasket for Alpine A110 Berlinette 1600SX (10/1975-07/1977) - type 843-30 is true to original.

This cylinder head gasket for Alpine A110 1600 SX is specific to models equipped with the 1647cc engine type 843-30 from Renault 12, 15 and 17 .

Compatible models:

- berlinette A110 1600SX - Type 1600 VH (10/1975-07/1977)

This cylinder head gasket for Alpine A110 Berlinette 1600VA (09/1968-1969) - type 807-24 is true to original.

This cylinder head gasket for Alpine A110 1600 VA is specific to models equipped with the 1565cc type 807-24 engine from the R15.

Compatible models:
- Berlinette A110 1600 - type 1600 (09/1968-?/1969)
- Berlinette A110 1600 - type 1600 VA (1969)
- Berlinette A110 1600S - type 1600 VA (1969)

This cylinder head gasket for Alpine A110 Berlinette 1600VB (1969-04/1973) - type 807-25 is faithful to the original.

This cylinder head gasket for Alpine A110 1600 VB is specific to models equipped with the 1565cc type 807-25 engine from the R12 Gordini.

Compatible models:

- Berlinette A110 1600 - type 1600 VB (1969-1970)
- Berlinette A110 1600S - type 1600 VB (10/1969-04/1973)

This cylinder head gasket for Alpine A110 Berlinette V85 (10/1969-12/1976) - type 810 is faithful to the original.

This cylinder head gasket for Alpine A110 1300 VC is specific to models equipped with the 1289cc type 810 engine from the Renault 8 Major.

Compatible models:

- Berlinette A110 V85/1300 - type 1300 VC (10/1969-12/1976)

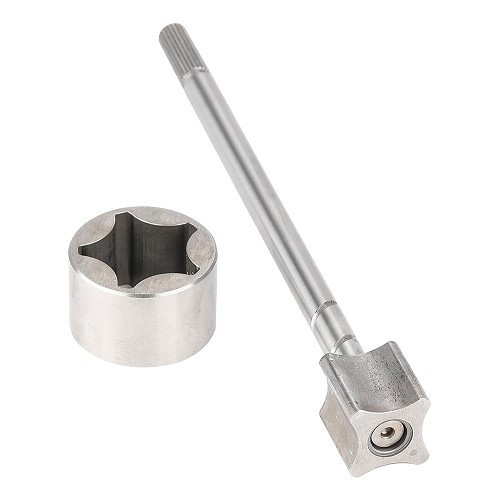

These oil pump sprockets for Alpine A110 1600 (09/1968-04/1973) - 31mm are true to original.

These high flow oil pump sprockets for Alpine A110 1565cc allow the rebuilding of a defective oil pump. Compatible with type 807 engines from Renault 16 TS mounted on 1600VB and 1600VC berlinettes.

Compatible models:

- Berlinette A110 1600 - type 1600 VB (1969-1970)
- Berlinette A110 1600S - type 1600 VB (10/1969-04/1973)
- Berlinette A110 1600S - type 1600 VC (01/1973-04/1973)
