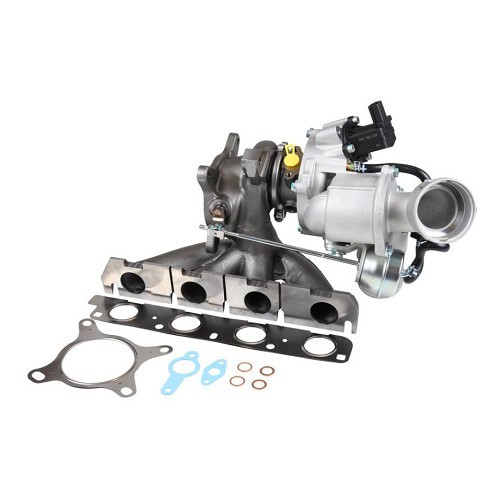

New turbo without exchange for Audi A3 8P 3-door, Sportback and Cabriolet :
3-door and Sportback :
- 2.0 TFSI 200hp phase 1 and 2 from 07/2004 to 10/2012 (engine code AXX)
- 2.0 TFSI Quattro 200hp phase 1 and 2 from 07/2004 to 10/2012 (AXX engine code)
- 2.0 TFSI 200hp phase 1 and 2 from 07/2004 to 10/2012 (BPY engine code)
- 2.0 TFSI Quattro 200hp phase 1 and 2 from 07/2004 to 10/2012 (BPY engine code)
- 2.0 TFSI 200hp phase 1 and 2 from 07/2004 to 10/2012 (BWA engine code)
- 2.0 TFSI Quattro 200hp phase 1 and 2 from 07/2004 to 10/2012 (BWA engine code)
- 2.0 TFSI 200hp phase 1 and 2 from 07/2004 to 10/2012 (engine code CAWB)
- 2.0 TFSI Quattro 200hp phase 1 and 2 from 07/2004 to 10/2012 (engine code CAWB)
- 2.0 TFSI 200hp phase 1 and 2 from 07/2004 to 10/2012 (engine code CCZA)
- 2.0 TFSI Quattro 200hp phase 1 and 2 from 07/2004 to 10/2012 (engine code CCZA)
Cabriolet:
- 2.0 TFSI 200hp from 04/2008 to 05/2013 (engine code CAWB)
- 2.0 TFSI 200hp from 04/2008 to 05/2013 (engine code CCZA)
The turbocharger is sold complete with seals. No instructions are necessary.
Precautions must be taken when replacing a turbocharger:
- The oil circuit must be cleaned to remove any residue that may obstruct the circuit.
- replace the oil and oil filter
- Check and clean oil intake and return ducts
- Check air and breather hoses too
- Using a syringe, fill the turbo with oil through the turbo oil inlet, then prime the turbine by hand.
- Once the new turbo has been fitted, start the engine and let it idle for 10 minutes. Before stopping the engine, let it idle for a few seconds (do not accelerate suddenly before stopping).
Read the full description
