Engine Citroën DS

BOSCH12 Volt high performance ignition coil with hollow tips for engines with breaker ignition + capacitor(not suitable for TSZ electronic ignition)

Designed for easy starting.

Technical specs:
Aluminium body with blue label.
Resistance measured between the 2 poles (+ & -): 3.2 Ohms
Body diameter: 56 mm
Length: 145.5 mm

High-efficiency BOSCH ignition coil for igniter equipped with platinum-plated screws and capacitor.

Better sparks = better engine performance!
Designed for easy starting.

Technical details :
Hollow tip connection
Resistance: 3.2 Ohms

123 Ignition electronic igniter specially designed for Citroën Traction, Type H, ID and DS carburettors.

This electronic igniter with side-exit distributor head and no vacuum capsule, will enable you to select the right ignition curve for your Citroën from among the 16 different ignition curves it offers and which comply with the manufacturer's recommendations.

It is suitable for the following models:
- Citroën Traction with "Perfo" engine up to 06/1955
- Citroën Traction with "11D" engine from 06/1955 onwards
- Citroën ID and DS with carburetor from 07/1959 except DV engine
- Citroën Type H with H78 engine
- Citroën Type H with H72 engine from 05/1964

This Pertronix "ignitor 1" electronic ignition module is designed for vehicles with 12 volt electric circuit in good operating condition with no current loss.
For Ducellier ignition with vacuum capsule.

Only for the following versions:
- 1933-57 front-wheel drive 11
- 1965-66 ID19 80 bhp (Ducellier 4944, 4175)
- 1965-67 DS19 90 bhp (Ducellier 4169, 4177A)
- 1966-70 ID16 90 bhp (Ducellier 41401, 4188)
- 1965-72 DS21 109 bhp (Ducellier 4155)
- 1965-72 Pallas 105 bhp (Ducellier 4176)

Alternator and water pump belt
Dimensions: 10 x 600 mm

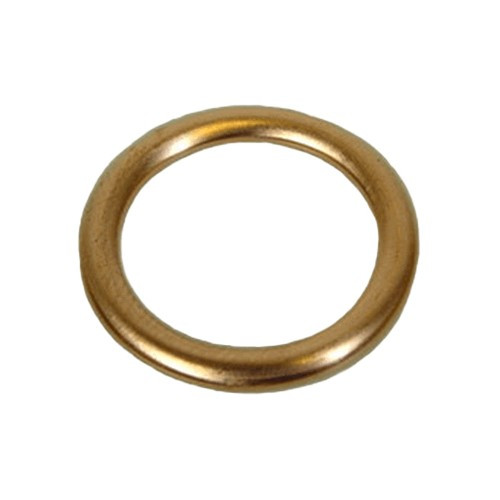

This crushable copper drain gasket for Citroën DS (09/1965-1975) - 16mm is compatible with DS models from 1966.

Made of copper, this drain gasket for DS crushes when tightened to guarantee engine watertightness.

123 Ignition distributor specially designed for Citroën DS 21 and DS 23 with Bosch D-Jetronic electronic fuel injection.

This electronic igniter allows you to replace the original Bosch ZV117 A3A or JFRX4 0231177001 distributor fitted on Citroën DS 21 IE and DS 23 IE. The ignition curves comply with the manufacturer's recommendations.

It is similar to the original distributor with a Bosch head and rotor, but 2 outputs are specially designed for connection to the injection control unit.

The igniter is compatible with the following models:
- Citroën DS 21 IE (1969 to 1972)
- Citroën DS 23 IE (1972 to 1975)

The installation system for this ignition is specially configured to be installed on Citroën DS/ID DV engines.

It nevertheless contains the same specific 16 curves specific to the DS & ID.

Specially designed for Citroën ID and DS.

It contains all ignition curves compliant with ID and DS with carburettor manufacturer recommendations after 1959.

You can select the appropriate ignition curve using a small rotating button.

This connecting rod for Citroën DS19 (02/1956-03/1965) - 190x33mm is a high quality remanufacture.

This connecting rod for DS19 with 11D 1911cc engine is delivered without crankshaft bearing but with its brass bearing.

length: 190mm
width (crankshaft): 33mm
width (crankshaft): 25mm
Center thickness: 19mm

Compatible models :
- DS19 Sedan type DS19, DS19 from 1956 to 1959, Engine type DS19 1911cc (75hp), 4-speed manual gearbox
- DS19 Cabriolet type DS19, DS19 from 1956 to 1959, Engine Type DS19 1911cc (75hp), 4-speed manual gearbox
- DS19 Sedan type DS19, DS19 from 1960 to 02/1961, Engine Type DS19 1911cc (78hp), 4-speed manual gearbox
- DS19 Sedan type DA, DS19 from 03/1961 to 03/1965, Engine Type DS19 1911cc (83hp), 4-speed manual gearbox
- DS19 Sedan type DA, Hydraulic DS19 from 03/1961 to 03/1965, Engine Type DW 1911cc (83hp), Hydraulic 4-speed gearbox
- DS19 Cabriolet type DA, DS19 from 03/1961 to 03/1965, Engine Type DS19 1911cc (83hp), Mechanical 4-speed gearbox
- DS19 Cabriolet type DA, hydraulic DS19 from 03/1961 to 03/1965, Engine Type DW 1911cc (83hp), Hydraulic 4-speed gearbox

High-efficiency SSP ignition coil for electronic igniter
The SSP 12V ignition coil is designed to meet or exceed OEM standards, delivering a powerful spark that improves engine operation, reduces emissions and promotes performance.
This vintage-design coil will fit perfectly into the engine compartment of any vintage car, combining aesthetics with modern functionality.
Designed with a 3 Ohm resistor, this coil is compatible with most electronic ignition systems, including popular models such as 123 Ignition and Pertronix. Its epoxy resin body offers exceptional durability, and helps resist strong vibrations, especially when mounted directly on the engine.
The SSP coil is the ideal choice for those seeking both original looks and up-to-date performance.

Technical detailsEpoxy resin coil bodyHollow spigot connectionResistance: 3 Ohms

This VALEO ignition coil with resistor for Citroën DS (09/1960-1975) - 12V is of superior quality.

This 12V VALEO coil with breaker release is compatible with all models from the changeover to 12V on vintage 61.

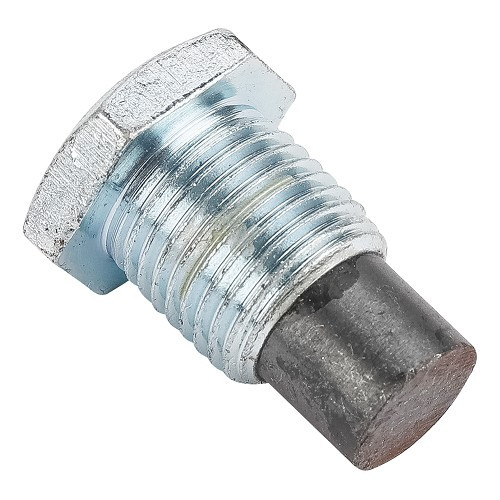

This magnetic drain plug for Citroën DS (09/1965-1975) retains metallic impurities.

Designed for Citroën DS models from 66 onwards, this magnetic drain plug improves the filtration quality of your oil. Its integrated magnet retains suspended metal particles.

This Eyquem C42SA12 spark plug for Citroën DS (1956-1975) is compatible with all models.

The Eyquem C42SA12 spark plug for Citroën DS is original equipment.

- Without resistor
- Heat rating: 42
- Thread length: 12.7mm
- Cap seat: Flat
- Insulator spout : Sprayed
- Tightening torque: 25Nm
- Gap: 0.75mm
- Thread: M14x1.25
- Hexagon: 21mm

Capacitor 12V for Ducellier igniter

Dimensions 17x38,5 mm
Fixed by round lug
Capacity 0,25 µf

Manufacturer references:

ALFA ROMEO : 116 55 05 011 03/04
CITROËN : 5948 05, 5 452 417, 5948 06, 5948 07, 95 624 993, DM 211 8, 5948 14
FIAT : 9934266
LANCIA: 9934266
PEUGEOT: 5948 14, 95 624 993, DM 211 8, 5 452 417, 5948 06, 5948 05, 5948 07
RENAULT: 77 01 202 521, 08 52 174 300, 05 92 112 404, 08 53 712 500, 592 112 404, 77 01 402 250, 853 712 500, 77 01 021 374, 77 01 022 130, 77 01 021 676
SEAT: 9934266
TALBOT: 28,829 V, 28,829 00

Equivalent:

BOSCH: 1,237,330,801
BREMI: 3385
BERU: 0,030,100,138, ZK 138
DODUCO: 6303, 6304
DOWAL: 62,004
DUCELLIER: 22820, 9504, 1214, 1205, 1202, 1203, 1185, 607453, 599200, 1203 C, 1216, 9534, 19421, 611095, 608316, 21092, 19403, 611081, 9507, 9537, 9500, 1217, 1203 B, 607870, 582168, 1206, 611599, 605308, 582349, 1205 D, 9533, 612233, 612234
LUCAS: C 21
Motorcraft: EDC 62, EDC 202
PARIS-RHONE: 90,505, 72,724 K, 72,724, 90,505
WUNIC-SIMCA: 62,050,518, 62,050,518
VALEO: D 703, D 708

This straight valve rocker arm for Citroën DS 19 (03/1956-02/1961) - 16mm is a quality remanufacture.

This straight rocker arm for Citroën DS 19 with 11D engine is ringless.

Compatible models:

- DS19 Sedan type DS19, DS19 from 1956 to 1959, DS19 type 1911cc (75hp) engine, 4-speed manual gearbox
- DS19 Cabriolet type DS19, DS19 from 1956 to 1959, Engine Type DS19 1911cc (75hp), 4-speed manual gearbox
- DS19 Sedan type DS19, DS19 from 1960 to 02/1961, Engine Type DS19 1911cc (78hp), 4-speed manual gearbox

This left valve rocker arm for Citroën DS 19 (03/1956-02/1961) - 16mm is a quality remanufacture.

This left rocker arm for Citroën DS 19 with 11D engine is ringless.

Compatible models:

- DS19 Sedan type DS19, DS19 from 1956 to 1959, DS19 type 1911cc (75hp) engine, 4-speed manual gearbox
- DS19 Cabriolet type DS19, DS19 from 1956 to 1959, Engine Type DS19 1911cc (75hp), 4-speed manual gearbox
- DS19 Sedan type DS19, DS19 from 1960 to 02/1961, Engine Type DS19 1911cc (78hp), 4-speed manual gearbox

This piston sleeve kit for Citroën DS 19 (03/1961-09/1965) - 78mm is European made.

This piston sleeve kit for DS 19 with 3-bearing 1911cc engine is specific to the latest models equipped with a DS 1-03c, DS 1-03-f and DW 1-03a engine with dished pistons and increased compression.

It comprises :
- 4 liners and 4 crowned pistons: 78mm
- 4 piston pins: diam. 20mm
- 4 ring sets: 2.5mm,2.5mm,4.5mm

Compatible models :
- DS19 Sedan type DA, DS19 from 03/1961 to 03/1965, Engine type DS19 1911cc (83hp), 4-speed manual gearbox
- DS19 Sedan type DA, Hydraulic DS19 from 03/1961 to 03/1965, Engine Type DW 1911cc (83hp), Hydraulic 4-speed gearbox
- DS19 Cabriolet type DA, DS19 from 03/1961 to 03/1965, Engine Type DS19 1911cc (83hp), Mechanical 4-speed gearbox
- DS19 Cabriolet type DA, hydraulic DS19 from 03/1961 to 03/1965, Engine Type DW 1911cc (83hp), Hydraulic 4-speed gearbox

This piston sleeve kit for Citroën DS 23 (1973-1975) - 93.5mm is made in Europe.

This piston sleeve kit for DS 23 with 2347cc engine is specific to the latest models equipped with DX4 and DX5 type engines.

It includes :
- 4 liners and 4 pistons: 93.5mm
- 4 piston pins: diam. 25x81.8mm
- 4 ring sets: 2mm,2mm,4mm
Compression: 8.75

Compatible models:
- DS23 Série FE Berline type DS23-DX, hydraulic DS23 from 1973 to 1975, Engine Type DX4 2347CC (124hp), Hydraulic 4-speed gearbox
- DS23 Serie FE Sedan type DS23-DX, DS23 automatic from 1973 to 1975, Engine Type DX4 2347CC (124hp), 3-speed automatic gearbox
- DS23 Serie FG Sedan type DS23-DX, DS23 hydraulic from 1973 to 1975, Engine Type DX5 2347CC (141hp), 4-speed hydraulic gearbox
- DS23 FG Series Sedan type DS23-DX, DS23 ie automatic from 1973 to 1975, Engine Type DX5 2347CC (141hp), 3-speed automatic gearbox
- DS Serie FE Sedan type DS23-DJ, DS23 mechanical from 1973 to 1975, Engine Type DX4 2347CC (124hp), 5-speed manual gearbox
- DS Série FG Sedan type DS23-DJ, DS23 ie mechanical from 1973 to 1975, Engine Type DX5 2347CC (141hp), 5-speed manual gearbox

- Break 23 Ambulance type DS Série FF-DA, DJF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed manual gearbox
- Break 23 type DS Série FF-DB, DJF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed manual gearbox
- Break 23 Commerciale type DS Série FF-DC, DJF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed manual gearbox
- Estate 23 Familiale type DS Série FF-DFF, DJF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed manual gearbox
- Break 23 Ambulance type DS Série FF-DA, DXF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed hydraulic gearbox
- Break 23 type DS Série FF-DB, DXF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed hydraulic gearbox
- Break 23 Commerciale type DS Série FF-DC, DXF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed hydraulic gearbox
- Estate 23 Familiale type DS Série FF-DFF, DXF from 1973 to 1975, Engine Type DX4 2347cc (124hp), 5-speed hydraulic gearbox

This flat piston sleeve kit for Citroën DS 19 (02/1956-02/1961) - 78mm is made in Europe.

This piston sleeve kit for DS 19 with 3-bearing 1911cc engine is specific to early models equipped with the DS 1-03, DS 1-03b type 11D engine with flat pistons and 7.5:1 compression ratio.

It comprises :
- 4 liners and 4 flat pistons: 78mm
- 4 piston pins: diam. 20x68mm
- 4 ring sets: 2.5mm,4.5mm,4.5mm

Compatible models :
- DS19 Sedan type DS19, DS19 from 1956 to 1959, DS19 type 1911cc (75hp) engine, 4-speed manual gearbox
- DS19 Cabriolet type DS19, DS19 from 1956 to 1959, Engine Type DS19 1911cc (75hp), 4-speed manual gearbox
- DS19 Sedan type DS19, DS19 from 1960 to 02/1961, Engine Type DS19 1911cc (78hp), 4-speed manual gearbox
