Ignition Citroën DS

BOSCH12 Volt high performance ignition coil with hollow tips for engines with breaker ignition + capacitor(not suitable for TSZ electronic ignition)

Designed for easy starting.

Technical specs:
Aluminium body with blue label.
Resistance measured between the 2 poles (+ & -): 3.2 Ohms
Body diameter: 56 mm
Length: 145.5 mm

High-efficiency BOSCH ignition coil for igniter equipped with platinum-plated screws and capacitor.

Better sparks = better engine performance!
Designed for easy starting.

Technical details :
Hollow tip connection
Resistance: 3.2 Ohms

123 Ignition electronic igniter specially designed for Citroën Traction, Type H, ID and DS carburettors.

This electronic igniter with side-exit distributor head and no vacuum capsule, will enable you to select the right ignition curve for your Citroën from among the 16 different ignition curves it offers and which comply with the manufacturer's recommendations.

It is suitable for the following models:
- Citroën Traction with "Perfo" engine up to 06/1955
- Citroën Traction with "11D" engine from 06/1955 onwards
- Citroën ID and DS with carburetor from 07/1959 except DV engine
- Citroën Type H with H78 engine
- Citroën Type H with H72 engine from 05/1964

This Pertronix "ignitor 1" electronic ignition module is designed for vehicles with 12 volt electric circuit in good operating condition with no current loss.
For Ducellier ignition with vacuum capsule.

Only for the following versions:
- 1933-57 front-wheel drive 11
- 1965-66 ID19 80 bhp (Ducellier 4944, 4175)
- 1965-67 DS19 90 bhp (Ducellier 4169, 4177A)
- 1966-70 ID16 90 bhp (Ducellier 41401, 4188)
- 1965-72 DS21 109 bhp (Ducellier 4155)
- 1965-72 Pallas 105 bhp (Ducellier 4176)

123 Ignition distributor specially designed for Citroën DS 21 and DS 23 with Bosch D-Jetronic electronic fuel injection.

This electronic igniter allows you to replace the original Bosch ZV117 A3A or JFRX4 0231177001 distributor fitted on Citroën DS 21 IE and DS 23 IE. The ignition curves comply with the manufacturer's recommendations.

It is similar to the original distributor with a Bosch head and rotor, but 2 outputs are specially designed for connection to the injection control unit.

The igniter is compatible with the following models:
- Citroën DS 21 IE (1969 to 1972)
- Citroën DS 23 IE (1972 to 1975)

The installation system for this ignition is specially configured to be installed on Citroën DS/ID DV engines.

It nevertheless contains the same specific 16 curves specific to the DS & ID.

Specially designed for Citroën ID and DS.

It contains all ignition curves compliant with ID and DS with carburettor manufacturer recommendations after 1959.

You can select the appropriate ignition curve using a small rotating button.

High-efficiency SSP ignition coil for electronic igniter
The SSP 12V ignition coil is designed to meet or exceed OEM standards, delivering a powerful spark that improves engine operation, reduces emissions and promotes performance.
This vintage-design coil will fit perfectly into the engine compartment of any vintage car, combining aesthetics with modern functionality.
Designed with a 3 Ohm resistor, this coil is compatible with most electronic ignition systems, including popular models such as 123 Ignition and Pertronix. Its epoxy resin body offers exceptional durability, and helps resist strong vibrations, especially when mounted directly on the engine.
The SSP coil is the ideal choice for those seeking both original looks and up-to-date performance.

Technical detailsEpoxy resin coil bodyHollow spigot connectionResistance: 3 Ohms

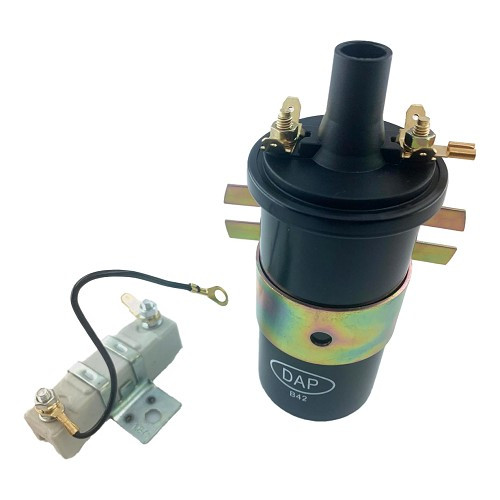

This VALEO ignition coil with resistor for Citroën DS (09/1960-1975) - 12V is of superior quality.

This 12V VALEO coil with breaker release is compatible with all models from the changeover to 12V on vintage 61.

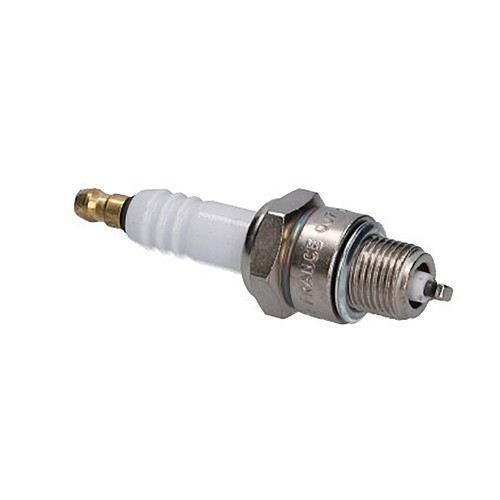

This Eyquem C42SA12 spark plug for Citroën DS (1956-1975) is compatible with all models.

The Eyquem C42SA12 spark plug for Citroën DS is original equipment.

- Without resistor
- Heat rating: 42
- Thread length: 12.7mm
- Cap seat: Flat
- Insulator spout : Sprayed
- Tightening torque: 25Nm
- Gap: 0.75mm
- Thread: M14x1.25
- Hexagon: 21mm

Capacitor 12V for Ducellier igniter

Dimensions 17x38,5 mm
Fixed by round lug
Capacity 0,25 µf

Manufacturer references:

ALFA ROMEO : 116 55 05 011 03/04
CITROËN : 5948 05, 5 452 417, 5948 06, 5948 07, 95 624 993, DM 211 8, 5948 14
FIAT : 9934266
LANCIA: 9934266
PEUGEOT: 5948 14, 95 624 993, DM 211 8, 5 452 417, 5948 06, 5948 05, 5948 07
RENAULT: 77 01 202 521, 08 52 174 300, 05 92 112 404, 08 53 712 500, 592 112 404, 77 01 402 250, 853 712 500, 77 01 021 374, 77 01 022 130, 77 01 021 676
SEAT: 9934266
TALBOT: 28,829 V, 28,829 00

Equivalent:

BOSCH: 1,237,330,801
BREMI: 3385
BERU: 0,030,100,138, ZK 138
DODUCO: 6303, 6304
DOWAL: 62,004
DUCELLIER: 22820, 9504, 1214, 1205, 1202, 1203, 1185, 607453, 599200, 1203 C, 1216, 9534, 19421, 611095, 608316, 21092, 19403, 611081, 9507, 9537, 9500, 1217, 1203 B, 607870, 582168, 1206, 611599, 605308, 582349, 1205 D, 9533, 612233, 612234
LUCAS: C 21
Motorcraft: EDC 62, EDC 202
PARIS-RHONE: 90,505, 72,724 K, 72,724, 90,505
WUNIC-SIMCA: 62,050,518, 62,050,518
VALEO: D 703, D 708

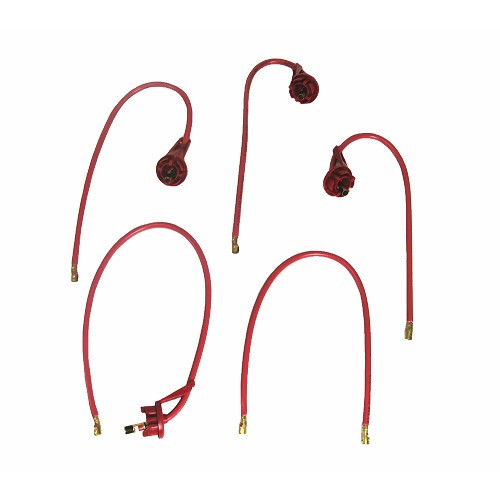

This BOUGICORD ignition wire set for Citroën DS (09/1965-1975) - Carburetor is of superior quality.

This high-voltage harness for DS includes the 4 spark plug wires and the coil wire. It is compatible with all carburetor models produced from 1966 onwards.

ThisPertronix Ignitor 1 electronic ignition module is for vehicles with a 12-volt electrical circuit in good condition without any current leakage.
For SEV ignition distributor with vacuum controller.

Only for the following 4-cylinder models:
- 1968-72 DS21

Igniter finger type Ducellier 661004

Suitable for many Simca, Renault, Peugeot and Panhard

Maker references:

ALFA ROMEO : 700,295
CITROËN: 5,452,421, DM 211 16 B, 5,428,390, 5,508,170, 5,452,421 W
PEUGEOT: 5937 16, 5937 17, 5937 13
RENAULT: 85 41,206, 08 54,120,600, 05 92,112,402, 08 55,054,100, 85,50,541, 77,01,021,981
SEAT: SE 141914 004 D, SE 127914 004 B, 0009936866, 0009934708, 0003898424
TALBOT: 16,903, 51,350,030 0, 00 176,711 00, 96,116
VW: 0592112402

Equivalent:

BERU: 0300900002, EVL 4/6-D
BOSCH: 1,234,332,805
BREMI: 9385 P, 9385, 9382
DODUCO: 5304
DUCELLIER: 16903, 450009, 664895, 661154, 49423, 661156, 661004, 662368, 19812, 611723, 18137, 664264, 79342, 661764, 79432, 664267
FACET: 3.7691, 3.7680 RS
HERTH BUSS: 13,360,013, 13,360,512
INTERMOTOR: 47400, 47300, 47300 s
Motorcraft: EDR 86, EDR 26
VALEO: D 911

OEM part nos:
08 51 874 100
77 01 019 458
77 01 019 468
77 01 020 784
85 18 741
85 51 874 100

Ignition delco head type Ducellier 662414

Mounted on many Peugeot, Renault, Fiat, Rover and Simca vehicles

Manufacturer references:

ALFA ROMEO : 700 291, 705 559
AUSTIN : GDC 226F, GDC 226, GDC 214, GDC 155
CITROËN: 5940 02, 5941 23, 5941 08, 5941 06, 5941 20, 95 624 992, 95 646 190, 95 534 910, DM 211 15
DAF: 224888
FIAT: 9937592, 9935177, 9916116, 9937716
LANCIA: 9916116, 9935177, 9937592, 9937716
LAND ROVER: RTC 4932, RTC 3295
PEUGEOT: 5941 20, 95 624 992, DM 211 15, 5941 26, 5941 08, 95 646 190, 95 534 910, 5940 02, 5941 06, 5941 23
RENAULT: 77 01 020 784, 85 51 874 100, 77 01 402 247, 08 51 874 100, 77 01 402 246, 77 01 402 309, 77 01 202 523, 77 01 020 378, 77 01 019 468, 77 01 019 458
ROVER: RTC 4932, RTC 3295
SEAT: 3980405, 000 993 771 6
TALBOT: 00 176 710 00, 16 901, 16 901 J, 5941 23, 00 135 002 00, 13 500 200, 17 671 000
VW: 028 905 207 C

Equivalent:

VALEO : D807
BREMI: 8385P, 8385
BERU: 330920009, 0330920009FACET: 27640, 27649PHT
LUCAS: DDB221, DDB208
QUINTON HAZELL: XD314, XD84

Platinized screws type Ducellier 71133 for Ducellier igniter

Often used on Peugeot, Renault, Citroën and Simca Talbot engines

Manufacturer references:

ALFA ROMEO: 116 55 05 011 03/02
CITROËN: 5,452,422 G, DM 211 17, 5,452,422
DAF: 224886
FIAT: 9916118
FORD: 1,497,349
PEUGEOT: 5927 09
RENAULT: 85 41,378, 08 54,137,800
TALBOT: S 20,089, S 26,840, 20,099 Z, 98,108, 280,840 S, 00,026,840 S
TOYOTA: 20,089 S, 20,099 Z
VOLVO: 3267443, 3100134-0

Equivalent:

VALEO: D304
BERU: 0340100219, KS 900
ACDelco: CS 8075
BOSCH: 1,237,013,808, 1,237,013,910
BREMI: 1,386, 1,386 V
DODUCO: 567
DUCELLIER: 608012, 71133
FACET: 1.3655FEMSA: 33827-4
INTERMOTOR: 22900
LUCAS: CS 219 40003, DSB 241, DSB 221, CS 21
Motorcraft: EDP 24, EDP 152
SCHIER: 2234
SEV-MARCHAL: 409 10035
