Lifting - Holding

This new-generation TOOLATELIER small mobile bridge enables you to tilt a vehicle from front to rear. Very practical for work around the vehicle, such as brakes, front-rear axles, bumpers, etc.
Some technical information:
Flat deck exterior dimensions: 156 x 120 x 15cm3 adjustable width levels: 77.5 - 113 - 153cmMin. height 16 cmMax. height 58cmSkid dimensions: 79 x 14 x 8.5cmHorizontal lifting capacity: 1500kgTilt function lifting capacity: 1000kg
Why choose the TOOLATELIER tilting car lift?
The TOOLATELIER tilting and horizontal car lift will make life easier for you in your various maintenance and repair jobs. CE-approved, it features an anti-tilt locking system for added safety, and wheels for easy movement. The bridge can be stored vertically to reduce clutter and enable you to position it against the wall of your garage or workshop. The mobile bridge is also adjustable in 3 sizes, with a minimum lift of 16 cm, this TOOLATELIER bridge will enable you to lift your vehicle up to 58 cm from the ground (lower body). It operates with an integrated crank system, and you can also use a drill (no impact wrench). Weighing in at 68 kg, the bridge is capable of supporting up to 1,500 kg, and will support you in all your projects.
Repairing or modifying your vehicle has never been so simple and practical!

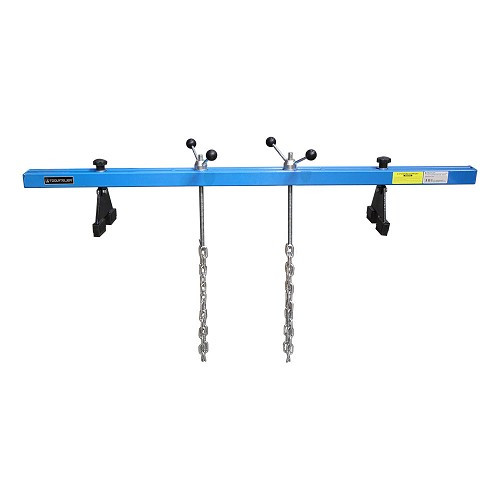

TOOLATELIER engine support beam , 500 kg capacity, for mounting and dismounting engines, gearboxes, etc.

Practical, width-adjustable spacing from 750 to 1450 mm to suit a wide range of vehicles (rubber protection for fenders).

Supplied with two 90 cm long chains.

These 2 TOOLATELIER handling carts on wheels are an invaluable aid when you need to move your car in a confined space, to start restoring your beauty or for storage, even for long periods, without the risk of deforming your tires.

The big advantage over fixed chocks is that you can move your vehicle effortlessly around your garage/workshop or showroom!

We do not recommend using these carts on painted floors (possible marks).
Maximum load capacity per cart is 450 kg ( ).

This engine mount has a maximum load capacity of 560 kg. It can be rotated 360° and locked in 8 positions.

It has 4 reception points with adjustable angle and distance. The castors have ball bearings.

Weight: 28 kg

- for assembling and disassembling of engines,
gearboxes, rear axle ect.
- height approx. 140 - 195 cm
- 4 ball bearing caster wheels
- compact construction, lightweight
- long lifting range
- fast lifting due to hydraulic foot pedal

The robust design of this jack makes it suitable for use in a garage or a workshop to lift all vehicles with a low ground clearance.

It is fitted with a rubber pad for better stability, 2 pivoting wheels for ideal positioning, and a double piston approach pedal for fast lifting.

Its lifting height is 75 to 495 mm and its size is 77.4 x 40 x 21 cm.
It weighs 32 kg.

This set of 2 TOOLATELIER brand stanchions has a maximum load capacity of 3T. This type of equipment is indispensable for all work on your car.

These stanchions feature a rack-and-pinion locking system, as well as a safety pin to prevent accidental removal.

Lifting height : 430 mm.
Min. height Height : 277 mm
Max. height 435 mm
Maximum weight : 3 tons per stanchion
Weight : 5.3 kg

This heavy-duty pit jack is used for assembly and disassembly of engines, gearboxes, rear axles, etc. Maximum load 500 kg.

Technical data

- Head plate adjustable by 60 mm on the side and from -10° to 35° in inclination, therefore particularly suitable for mounting automatic gearboxes
- Sizes: H 890 x W 1040 mm
- Height approx. 880 to 1770 mm
- 4 ball-bearing castors
- Quick lifting by hydraulic foot pedal
- Weight: 80 kg

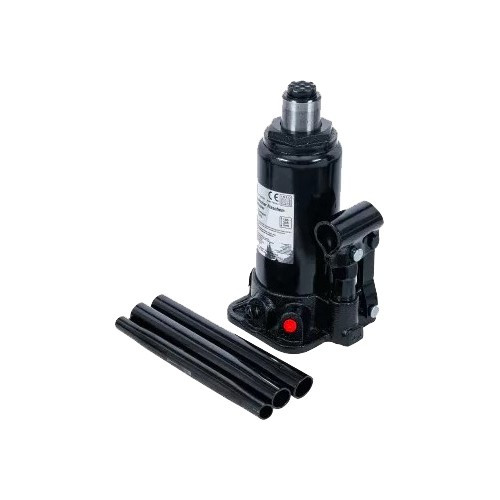

BGS 5T hydraulic jack:
- For lifting vehicles, machines, trailers and motorhomes.
- Ideal for tire changes, repair work or breakdowns.
- High stability and durability thanks to large base plate.
- Can be used in hard-to-reach areas.
- Piston diameter: 24 mm.
Lever length 457 mmMax. height 355 mmMinimum height 185 mmLifting height 110 mmSpindle length 60 mm

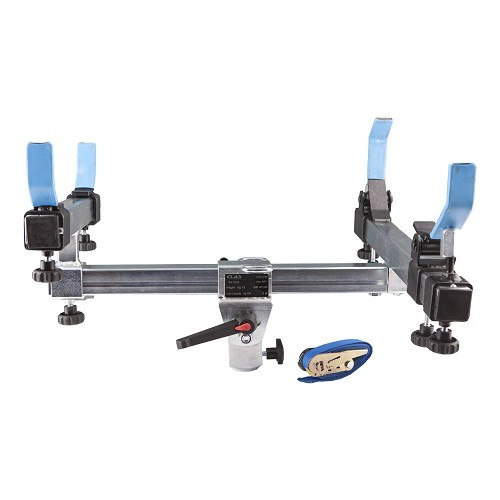

This CLAS gearbox support will enable you to lift or support all types of gearbox (manual, automatic) by attaching it to a pit jack with a 30mm, 35mm or 40mm piston (via the adapters included with it).
The supports and the front and rear arms, whose distance and angle of inclination are adjustable, ensure a perfect and safe grip during operation.
Features
Maximum load: 150kgFront/rear tilt: +/- 35°.Left/right tilt: +/- 5°.Warranty: 2 years

This ultra-low jack will be ideal for vehicles with a low ground clearance.

Its maximum load is 1800 kg with a lifting height of 85 to 370 mm.
The size of this compact jack is 56 x 21 x 14.5 cm, with a weight of 12.6 kg.

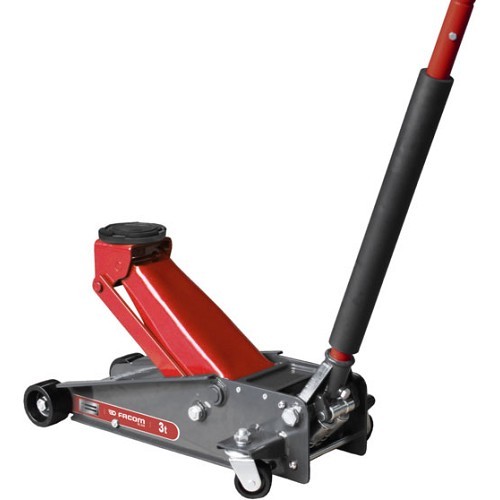

This FACOM 3-tonne jack is ideal for automotive use. It's the perfect companion for restoration work on your beautiful car!

Load capacity: 3 tons.
Maximum lifting height: 465 mm.
Minimum underbody height: 133 mm.
Quick-lift device: on contact in one movement.
Automatic air purge for continuous cylinder efficiency.
Removable polyurethane protection on support head.
Silent polyurethane wheels.
Overload valve.
Dimensions(L. x W. x H.): 690 x 337 x 163 mm.
Weight: 30.5 kg.

1 steel lifting ramp witha maximum capacity of a tonne, a total length of 81.5 cm, max. external width of31.5 cm, working width of 17 cm and a height of + or - 20 cm.

Lifting ramps must be positioned on solid, level ground. Drive yourvehicleslowlyonto the lifting ramps. Put your handbrake and wheel chockson the wheels which are not on the ramp.

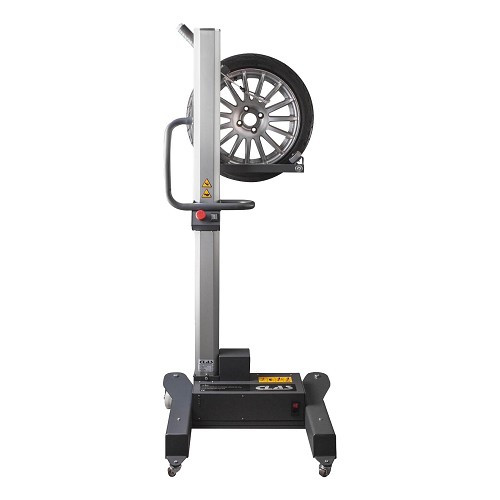

This CLAS battery-powered wheel lift with 60kg lifting capacity lets you raise and lower vehicle wheels effortlessly. Simply position the wheel on the lift and press the button to lower or raise it.
Features
- Maximum lifting capacity: 60kg- Permissible tire sizes: 135/80 R13 to 295/25 R22- Maximum lift height (to hub): 145cm- Lifting speed: 14cm/s- Lifting system: motorized screw- 4 swivel wheels for greater manoeuvrability- Anti-fall wheel safety device- Punch-type emergency stop button- Easy-to-rotate rollers for positioning the wheel on the hub- LED indicators: battery charge level, maximum charge capacity exceeded, emergency stop engaged, high auger motor temperature- 12V 12Ah batteries and 220V-AC charger included- Dimensions: 725 x 800 x 1710mm- Warranty: 2 years

Spare housing for the TA00205 tilting car lift.

Sold individually.

You have to change both casings per axle.

This CLAS folding and lowering crane, with a capacity of 1 tonne, will enable you to lift heavy items such as engines quickly and easily, even on lowered vehicles.
Oncefolded, the crane takes up very little space in your workshop, optimizing your workspace.
Features
- Fully foldable crane- Nylon wheels
Features
Lifting capacity: 1 tonLeg height: 85mmWarranty: 2 years

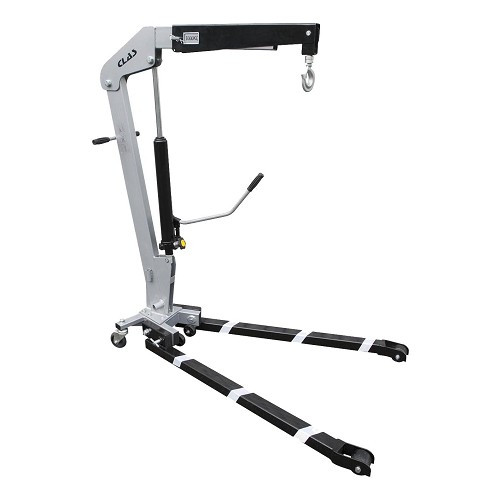

This CLAS folding crane has a capacity of 1 tonne, enabling you to lift heavy items such as engines quickly and easily.
Oncefolded, the crane takes up very little space in your workshop, optimizing your workspace.
Features
- Fully foldable crane
Features
Lifting capacity: 1 tonMaximum lifting height: 206cmLeg height: 185mmWarranty: 2 years

This 300kg capacity CLAS pit jack will be your ideal companion to help you support or remove heavy items from the body, such as a gearbox.
The pedal is used to raise the jack.To lower it, turn the circular handle anticlockwise.
Specifications
Maximum lifting capacity: 300kgMinimum height: 112cmMaximum height: 189cmWarranty: 2 years

This rubber protection pad is ideal for use on our TA00391 3 tonne stand or equivalent.

Gone are the days of placing a piece of wood between your stand and the body of your car.

This bracket is perfect for solving this problem but gives you added security and comfort during your work.

Sold individually.

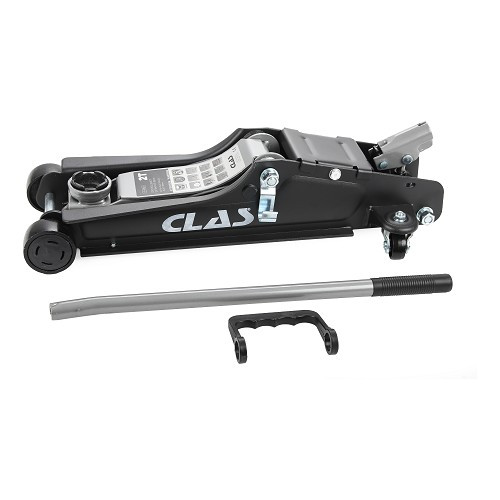

This CLAS extra-flat rolling jack with a lifting capacity of 2 tons will enable you to lift your vehicle with ease, even for lowered vehicles.
Features
- Rotating base for minimum stress on the vehicle
Features
Minimum height: 85mmMaximum height: 381mm2-year warranty
