Ignition tool

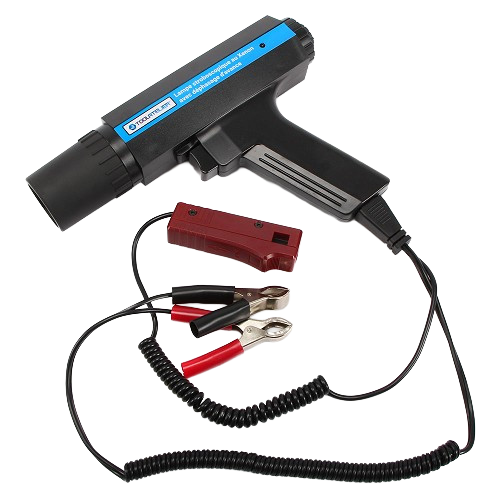

Discover the TOOLATELIER strobe lamp, Mecatechnic's famous tool brand.

Before describing the strobe lamp with advance phase shift, it is useful to describe the operating principle of the ordinary setting strobe lamp (without advance phase shift).

The strobe lamp is a lamp that operates on the stroboscopic principle. Namely, a rotating part of the motor is described as stationary by reference to a very brief flash that occurs several times in synchronization with the rotation of the motor.

The part of the engine that is described as stationary using the strobe light is a timing mark that the carmaker has provided on one of the engine's rotating components, such as the fan belt pulley or the engine flywheel. There is always a fixed mark on the engine, close to the point where the moving mark passes through, which is used as a reference point for the rotating mark.

In addition to the standard lamp, the phase-shifting strobe lamp is equipped with a self-powered flash tube that is independent of the spark plug and the phase-shifting electronic circuit. In this case, the degree of ignition advance required by the vehicle can be set by means of a knob on the pistol. The flash will be triggered with a delay in relation to the spark plug ignition, and will therefore be out of phase.

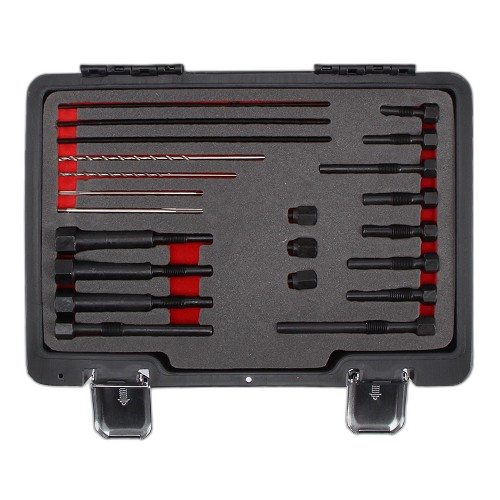

Ideal for removing glow plugs electrodes
Suitable for glow plug threads of M8 x 1.0 /M10 x 1.0 / M10 x 1.25

Contents:

- Threaded shanks: M8 x 1.0- M10 x 1.0 - M10 x 1,25,
- Tap: M3 x 0.5 x 100 mm
- Tap: M4x 0.7 x 100 mm
- Special drill bits: 2.5 x 120 mm - 3.3 x 140 mm
- Extraction bolts 180 mm M3 and M4

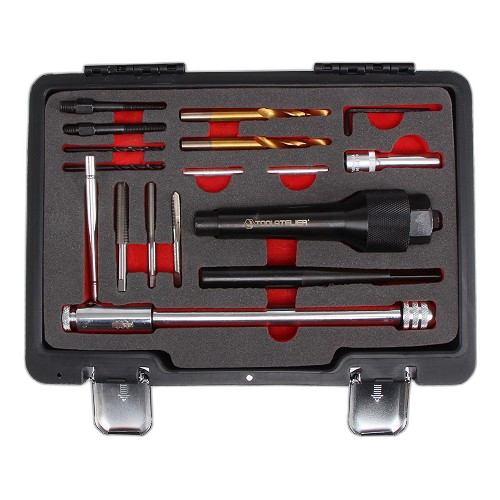

This TOOLATELIER glow plug extractor is ideal for removing seized plugs and professionally repairing your well threads .
Contents :

- Tapered cutter for glow plug removal, 7 x 5.5 mm and 9 x 5.5 mm.
- Taps M8 x 1.0, M10 x 1.0 and 6.3 mm (1/4"), for recovering glow plug threads.
- Lever for tap with ratchet function
- E10 socket

Replacement tapered cutters are available in part no. TA00372.

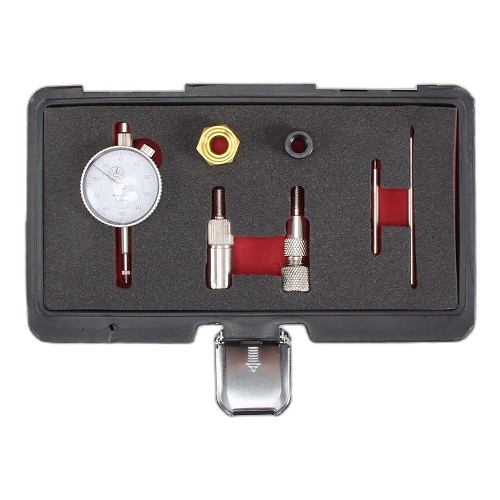

Used to precisely set the timing on most motorcycles.

- suitable for most cylinder heads

- dial gauge, 10 mm stroke, 1/100mm, used to locate the top dead centre of the piston
- 1 adapter with caliber clamp, length 3 cm
- 1 extension M8 x 1.0 / length 3 cm
- 1 adapter M10 x 1.0
- 1 adapter M12 x 1.25
- 1 adapter M14 x 1.25

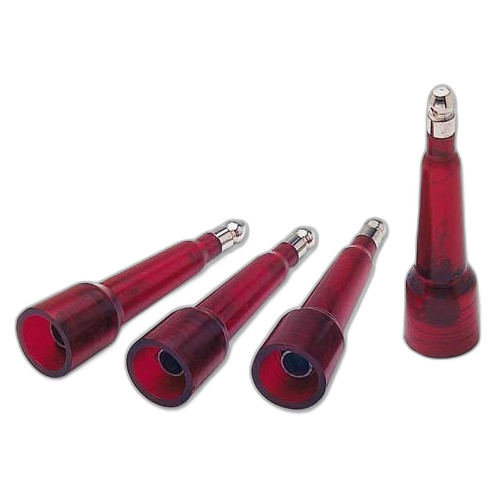

Set of 4 testers positioned between spark plug and spark plug wire.

Checks for correct spark.

These joined sockets will enable you to fit and remove all standardglow plugs.

Sizes: 8, 10 and 12 mm
- Length of the sockets: 85 mm, 72 mm
- Length of the extension : 75 mm
- Square: 3/8" (10 mm)
-Material: chrome vanadium

Spark plug spark tester. One side attaches to the spark plug, and the other to the spark plug lead. When you start the vehicle, it checks if the spark reaches each cylinder.

This set of TOOLATELIER magnetic sockets comes in sizes 16 and 21 mm. They are specially used for spark plugs in the automotive and motorcycle sectors.

For ease of use, the square drive is 1/2" to match the standard mechanical ratchet.

Square drive: 1/2".
Sizes: 16 and 21 mm

This TOOLATELIER replacement bulb is ideal for reference TA00200 or equivalent.

Features:

Bulb length: 28 mm
Total length from tip to tip: 35 mm
Diameter: approx. 5 mm
Soldering assembly (soldering iron/tin)

- allows loosening of stuck glow plugs
- can alsobe used on screws where a low torque
is required
- 4-stage torque adjustable to approx. 20-30-40-50 NM
to minimize the risk of tear-off for the glow plugs
- torque setting is possible in forward and reverse rotation
- incl. 4 deep sockets in 8, 9, 10, 11 and 12 mm,
1 extension and 1 universal joint
- 1/4" drive bar
- working pressure: 6.2 bar

Ignition testerTecmate IgnitionMate
This professional IgnitionMate ignition tester allows you to measure the quality of your ignition, whether DC, AC, magneto, coil... simply and efficiently, without dismantling the ignition system.
Tecmate's IgnitionMated has been specially designed to analyze and report clearly and accurately on an ignition system, where a multimeter quickly shows its limitations.
7.2V NiMH rechargeable battery operation6-hour runtime

Spare tapered cutters for the set of glow plug pullers, reference TA00282 and equivalent.

Sizes: 7 x 5.5 mm and 9 x 5.5 mm

- Thin socket fitted with spark plug retention mechanism.

Thin wall socket (Maximum external diameter 20.8 mm)

Size: 16 mm
Number of points: 6
Square drive: 3/8"

- Made from chrome vanadium
- Matte finish

Suitable for BMW motorbike spark plugs

Universal joint for access in difficult areas
21mm Single Hex
3/8"Drive
Flexible socket
Flexible socket
Manufactured from Chrome Vanadium

This spark plug socket has an unusual size, increasingly common on modern vehicles and motorcycles.

Material: chrome vanadium
Spark plug: 6-sided
Dimension: 18mm
Outside Ø: 24 - 26 mm
Length: 65 mm
Cavity: 1/2" diameter

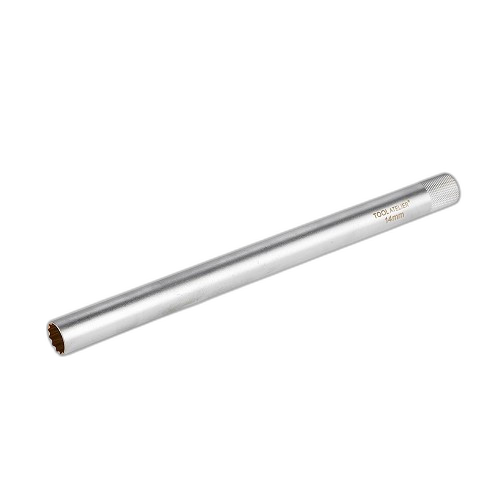

Size: 250 mm in length
Square drive: 3/8"
Size: 14 mm
Spark plug type: Bosch ZR8TPP15.
Profile: 12-sided with fine walls
Material: chrome vanadium
Finish: matte

List of possible uses:

- 1.4 petrol engine:
from 2006 -> Peugeot 207
from 2007 -> MINI One
from 2007 -> Peugeot 308

- 1.6 petrol engine - non-turbo:
from 2006 -> Peugeot 207 Sport
from 2007 -> MINI Cooper
from 2008 -> CitroënC4

- 1.6 turbo petrol engine:
from 2006 -> Peugeot 207 CC/GT
from 2007 -> Peugeot308
from 2008 -> Citroën C4
from 2006 -> Peugeot 207 RC
from 2007 -> MINI Cooper S
from 2008 -> Peugeot 308

Non-contact spark tester
Tests presence of power on spark plugs, coils and distributors
Simply place the grooved end over the spark plug wire with the engine running and the high intensity bulb will flash indicating spark
Pen type pocket clip for handy use
CE certified and RoHS compliant

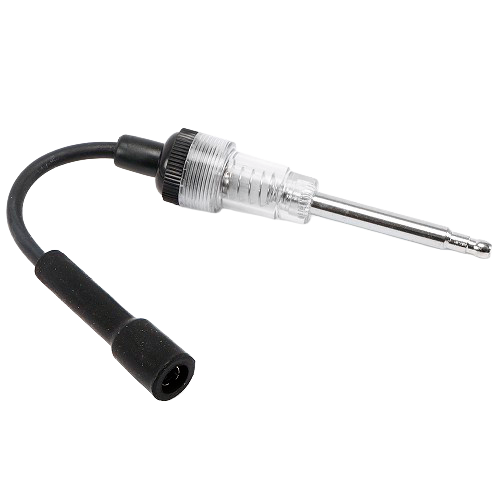

This spark tester controls the voltage of the electric arc produced during ignition.

Installation is very simple. Simply connect the tester tip to the ignition wire harness and connect the alligator clips to ground.

After setting the adjusting screw to a distance of 10mm, all that's left to do is start the vehicle and observe the arc distance.

The various markings on the tester indicate the spark voltage in kV.

An ignition in good condition should produce a spark of 15mm.

The COLORTUNE is a very clever device for seeing the combustion flame colour of the air-fuel mixture in an engine. It is very like a spark plug with a thick glass window and ignition electrodes that screw into position in the place of the original spark plug.

Specially designed for motorbike engines, this low volume Colortune maintains the compression ratio of the engine to ensure better combustion of the mixture.

Suitable for 12mm spark plugs
